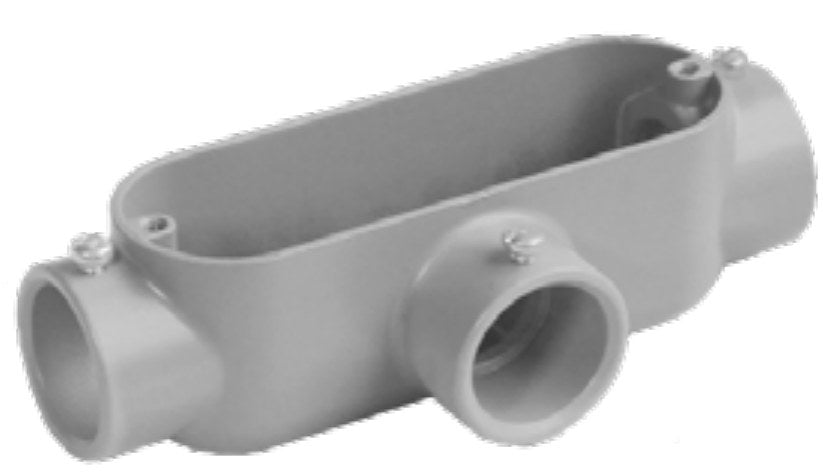

Morris 14163 Aluminum EMT Set Screw Conduit Body T Type, 1-1/4"

Product Overview

The Morris 14163 is a 1-1/4" T-type conduit body for EMT that uses set-screw connections. Die-cast aluminum construction offers durable mechanical protection for conductors where access is required for pulling, splicing, or maintenance.

Designed with a flat-back profile for close mounting to walls and compatible with gasketed covers to achieve a rain-tight enclosure when the correct gasketed cover is installed.

Key Features

• 1-1/4" trade size for EMT conduit runs
• Set-screw connectors for securing EMT
• Die-cast aluminum alloy construction
• Flat-back design for mounting close to walls
• Rain-tight when used with gasketed covers

Function and typical uses

The Morris 14163 is a T-type conduit body sized for 1-1/4" EMT. It provides a dedicated access point in a conduit run where conductors need to be pulled, routed, spliced, or serviced. Typical locations include pull points, changes of direction, and splice locations within EMT conduit systems.

• Provides access for pulling and splicing conductors
• Used at corners, pull points, and maintenance locations in EMT runs

Materials and physical design

This conduit body is die-cast from a high-strength aluminum alloy. The flat-back design allows the body to sit close to walls or mounting surfaces for a low-profile installation.

• Die-cast aluminum construction for mechanical protection
• Flat-back profile for close mounting

Installation and access

Install the 14163 in-line with the conduit run using the set-screw connection method for EMT. The removable cover (use a gasketed cover where rain-tight performance is required) allows access to the interior for pulling conductors or performing splices and maintenance.

• Set-screw connections accept EMT conduit
• Removable cover provides access for pulling and splicing

Compatibility and sealing

The 14163 is intended for use with EMT conduit secured by set screws. When a gasketed cover is installed, the assembly is rain-tight. Confirm you select the correct gasketed cover sized for this conduit body to achieve rain-tight sealing.

• Compatible with 1-1/4" EMT using set-screw connection
• Rain-tight only when used with an appropriate gasketed cover

Before You Order

Confirm the model number (14163) and the required quantity before ordering. Verify you will use a gasketed cover if a rain-tight installation is required.

• Model: 14163
• Trade size: 1-1/4" EMT
• Requires appropriate gasketed cover for rain-tight use
