Lutron LED Ballast Retrofit Kit T8, Case of 12 3LD2T8-2M-12

Product Overview

The Lutron 3LD2T8-2M-12 LED Retrofit Kit is offered as one product with 3 manufacturer SKUs. Choose the cct to select the exact version; every option keeps its original manufacturer SKU, price and stock.

Available options: CCT: 3000K, 4000K, 5000K.

Available Options and SKUs

• 3000K: SKU 3LD2T8-2M30-12
• 4000K: SKU 3LD2T8-2M40-12
• 5000K: SKU 3LD2T8-2M50-12

Specifications Shared by All Options

• Wiring: 3-Wire (Ballast / LED-Driver)
• Lamp Type: T8
• Lamp Length: 2 ft

What this kit does

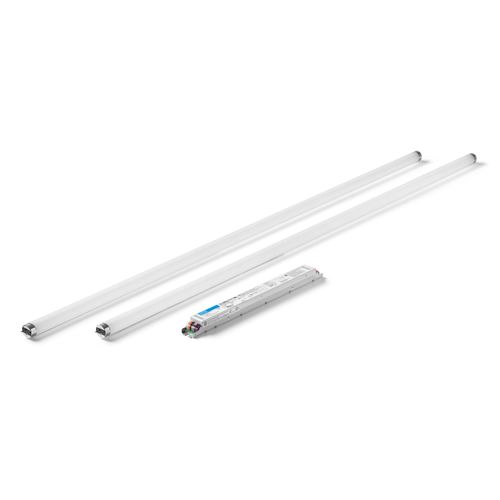

The 3LD2T8-2M-12 converts a fluorescent T8, 2-ft, 2-lamp fixture to LED using an integrated LED ballast/driver. It is intended to be installed into the existing fixture so the housing and lamp sockets can be reused, reducing waste and installation time compared with full fixture replacement.

• Converts fluorescent fixtures to dimmable LED
• Designed specifically for 2 ft T8, 2-lamp configurations

Typical applications

This retrofit kit is suited to common commercial and institutional spaces that use 2-ft T8 fluorescent fixtures and seek reduced energy and maintenance costs.

• Offices
• Schools
• Retail spaces
• Warehouses
• General fluorescent-to-LED retrofit projects

Compatibility and controls

The driver in this kit uses a 3-wire configuration and is intended to pair with compatible 3-wire Lutron dimmers. When used with a compatible Lutron control, the kit supports dimming down to 1%.

• 3-wire driver - pairs with 3-wire Lutron dimmers
• Dimming range: down to 1% with compatible Lutron controls
• Before installation, match the kit to the existing lamp type, length, and lamp count

Ordering from Lumera Electric

Select the cct on this page to confirm the exact SKU before ordering. For project quantities or additional ordering requirements, use Request a Quote and include the SKU and quantity you need.
