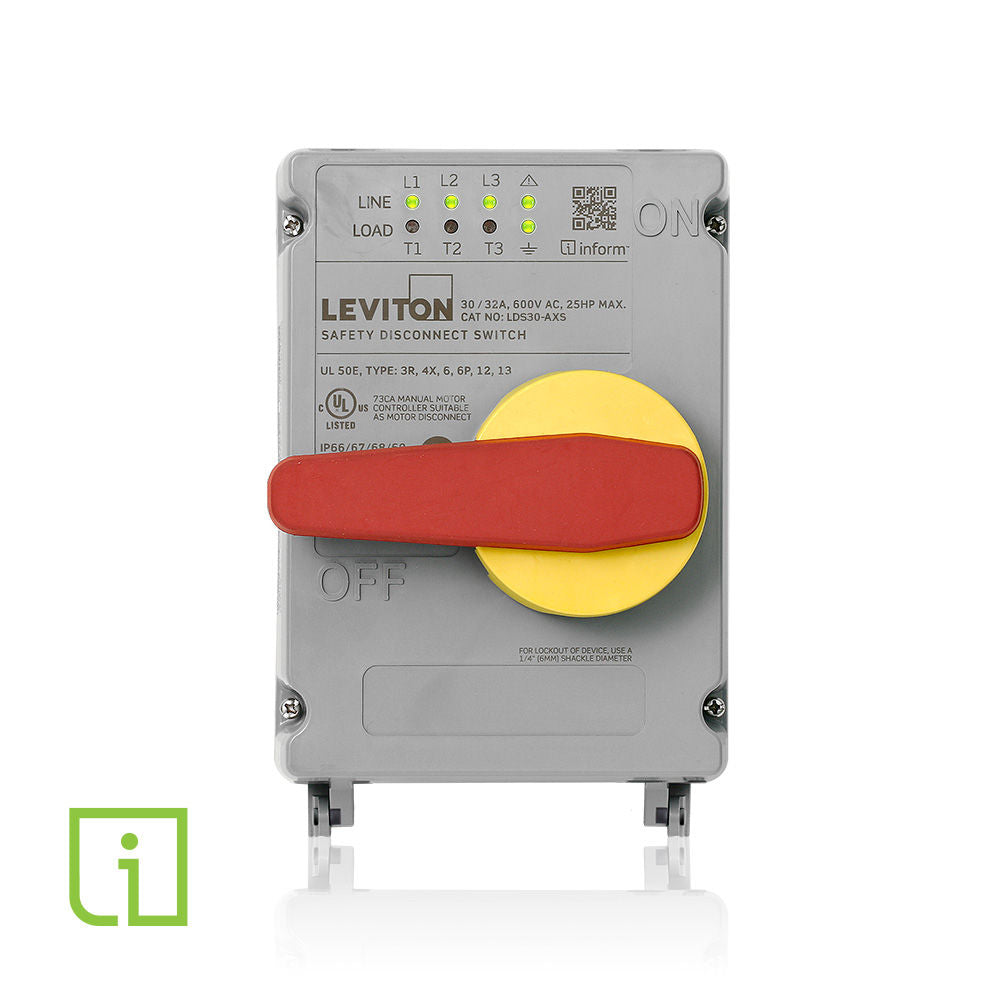

Leviton LDS30-AXS Pin & Sleeve Device

Product Overview

The Leviton LDS30-AXS is a pin & sleeve disconnect device rated for 30/32A NM disconnect applications. It is a genuine Leviton wiring device designed for residential, commercial, and industrial electrical installations.

This SKU is supplied as a single unit (EA) and carries UPC 07847799939.

Key Features

• Pin & sleeve disconnect device rated 30/32A for NM circuits
• Manufactured by Leviton — wiring device quality intended for residential, commercial and industrial use
• Sold as individual unit (EA) with UPC 07847799939

Function and intended use

The LDS30-AXS is a pin & sleeve disconnect device intended to provide a removable connection point for 30/32A NM circuits. It functions as a wiring-device disconnect suitable for use in residential, commercial, and industrial electrical systems where a pin & sleeve style connection is required.

• Provides a removable pin & sleeve connection for compatible mating devices
• Intended for NM disconnect applications at the rated amperage

Model and identifying specifications

Confirm model and ordering details using the exact SKU and UPC to ensure compatibility with your project.

• Brand: Leviton
• Model / Item #: LDS30-AXS
• UPC: 07847799939
• Unit of measure: EA
• Category: Pin & Sleeve 4-In-1 Devices & Other Industrial Products

Installation and application notes

Verify circuit requirements and physical compatibility before installation. Confirm that mating pin & sleeve connectors, panel cutouts, and local electrical code requirements match the device's ratings and style.

• Confirm the device rating (30/32A) matches the application and downstream equipment
• Check mechanical compatibility with mating pin & sleeve connectors and enclosures
• Follow local electrical codes and manufacturer installation instructions

Before You Order

Confirm the model number and quantity required before ordering. Verify electrical rating, mating connector compatibility, and any applicable code or project requirements.

• Confirm LDS30-AXS is the correct SKU for your pin & sleeve disconnect application
• Verify 30/32A rating suits your circuit and matches mating devices
• Have installer or electrician review compatibility with enclosures and local code

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Leviton LDS30-AXS Pin & Sleeve Device. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
