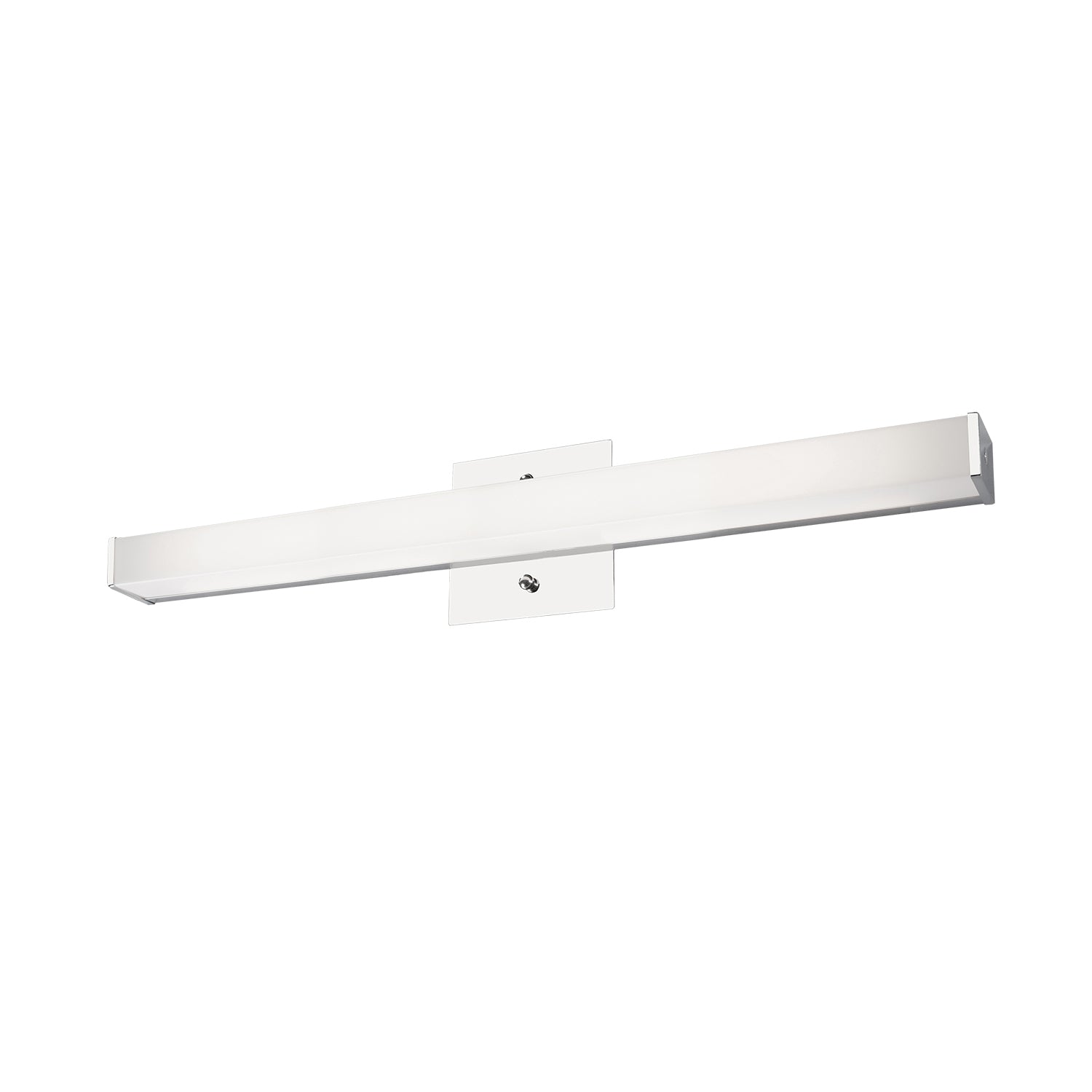

Kuzco Jane-Slim LED Vanity Light Chrome VL6224-CH

Product Overview

The Kuzco Jane-Slim VL6224-CH is a 24" integrated LED vanity fixture finished in chrome with a white acrylic diffuser. It operates at 31W and produces 2400 total lumens (1766 delivered for the chrome finish) at 3000K with 90 CRI.

The fixture mounts to the wall in either orientation, is ADA-compliant in projection, is rated for damp locations, and supports ELV dimming to 10% with a compatible ELV dimmer (not included).

Key Features

• Integrated 120V AC LED module — 31W, 2400 lm total (1766 lm delivered in chrome)
• 3000K color temperature with 90 CRI
• ELV dimming range 100%–10% (ELV dimmer not included)
• Wall mount, all-orientation; ADA-compliant projection
• Damp-location rated
• White acrylic diffuser with chrome end caps and matching canopy
• LED rated life: 50,000 hours; ETL certified

What this fixture does

The Kuzco Jane-Slim VL6224-CH is an integrated LED vanity light intended for wall mounting above or beside mirrors. The fixture uses a white acrylic diffuser to distribute light without requiring replaceable bulbs.

• Common uses: bathroom and powder-room vanity lighting, mirror-flanking installations, hallway or entryway accent lighting
• Mounts horizontally or vertically (wall mount, all-orientation)

Light output and color quality

Equipped with a 120V AC LED module rated at 31W, the fixture produces 2400 total lumens. For the chrome finish the published delivered lumen value is 1766 lm. Color temperature is 3000K and CRI is 90.

• Total lumens: 2400 lm
• Delivered lumens (chrome): 1766 lm
• Color temperature: 3000K
• CRI: 90

Dimming and controls

The fixture is dimmable from 100% down to 10% when used with a compatible ELV (electronic low-voltage) wall dimmer. The dimmer is not included.

• Dimming range: 100%–10%
• Use an ELV dimmer rated for the fixture's 31W load

Mounting, dimensions and materials

The Jane-Slim 24" model is low-profile with chrome end caps and a matching canopy. It mounts to standard wall boxes and may be installed in either orientation.

• Fixture dimensions: W 24" x H 4-1/2" x E 2-1/4"
• Canopy dimensions: W 4-1/2" x H 4-1/2" x E 1/4"
• Mounting style: wall mount, all orientation
• Materials: aluminum housing and white acrylic diffuser

Environment suitability and certifications

This fixture is ETL certified and rated for damp locations, suitable for areas with humidity but not direct water contact. The design is listed as ADA-compliant for projection.

• Location rating: Damp
• ADA compliant (projection)
• Certification: ETL

Before You Order

Verify the model number and quantity before ordering. The listed SKU is an integrated LED product with fixed color temperature and published delivered lumens for the chrome finish.

• Dimming: pair with an ELV dimmer rated for 31W (not included)
• Optional color temperatures and custom options may be available from the factory; consult Kuzco for minimum order quantities

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Jane-Slim LED Vanity Light Chrome VL6224-CH. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
