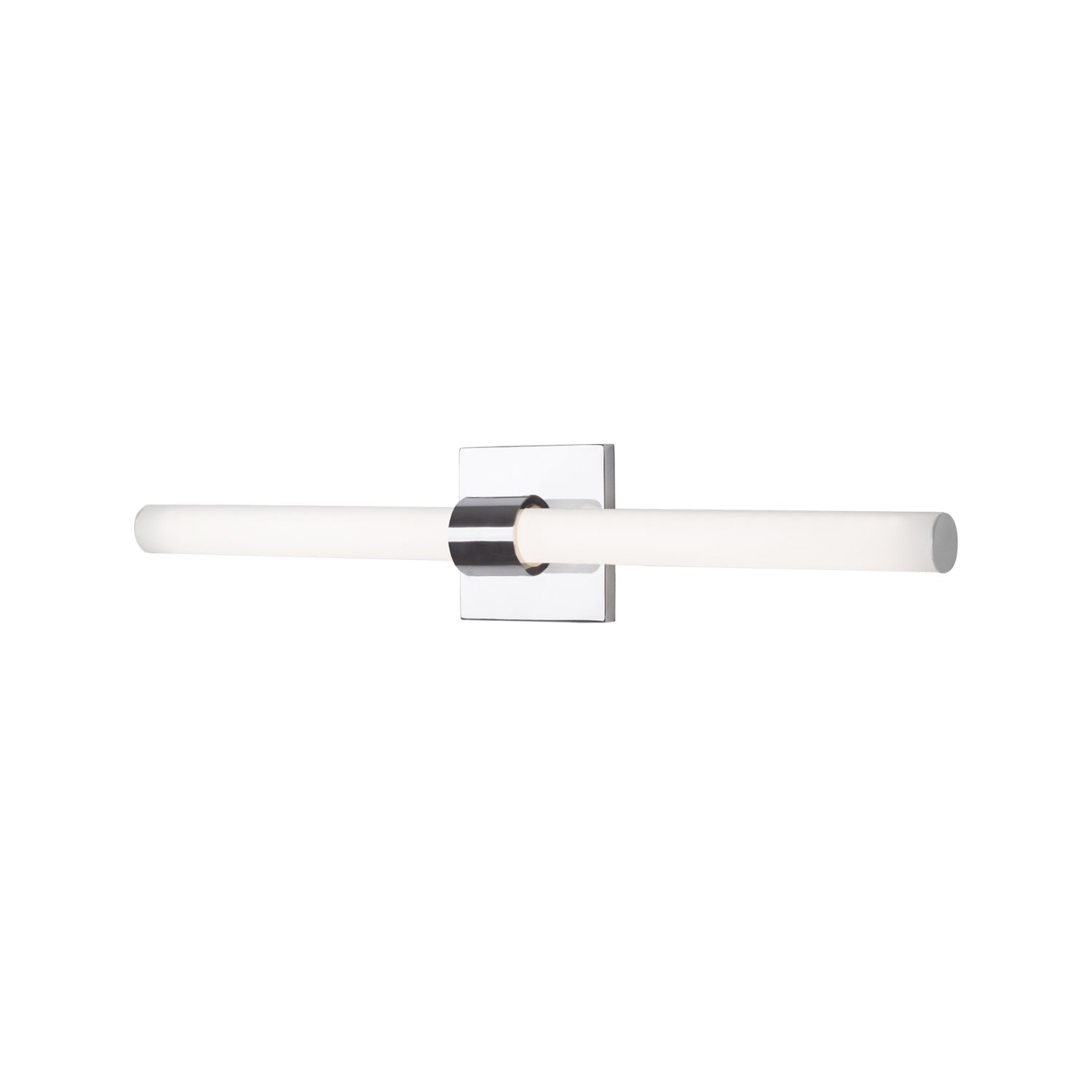

Kuzco Mendocino LED Vanity Light Chrome VL17124-CH

Product Overview

The Kuzco Mendocino VL17124-CH is a 24" integrated LED vanity light with an opal glass diffuser and chrome finish. It provides 3000K light with 90 CRI and is rated for damp locations.

The integrated LED consumes 31W and produces 2400 total lumens (1946 delivered). The fixture is ETL-listed, ADA-compliant, ELV-dimmable to 10%, and supports wall mounting in horizontal or vertical orientation.

Key Features

• Integrated AC LED module — 31W, 2400 lm (1946 lm delivered), 50,000-hour rated life
• 3000K color temperature with 90 CRI
• ELV dimming range 100%–10% (ELV dimmer not included)
• Damp-location rated and ETL listed
• ADA-compliant projection
• Aluminum and opal glass construction with chrome finish (CH01)

What this fixture does

The Kuzco Mendocino VL17124-CH is an integrated LED vanity fixture intended for bathroom and accent lighting. Its cylindrical opal glass diffuser and minimal metal detailing provide even illumination and a low-profile appearance suitable for mirror-flanking or corridor installations.

• Supports horizontal or vertical wall mounting (all-orientation)
• Integrated LED module — no user-replaceable bulbs

Light output and color quality

The fixture delivers warm-white 3000K light with 90 CRI. The integrated LED module is specified at 2400 total lumens and 1946 delivered lumens, with a rated life of 50,000 hours.

• Color temperature: 3000K
• CRI: 90 (Ra)
• Total lumens: 2400 lm; Delivered lumens: 1946 lm
• LED rated life: 50,000 hours

Dimming compatibility

The Mendocino VL17124-CH supports ELV (electronic low-voltage) dimming down to 10%. The wall dimmer is not included and should be chosen to match the fixture's 31W load and the installation's wiring and control requirements.

• Dimming range: 100%–10%
• Dimmer type: ELV (not included)
• Select an ELV dimmer rated for a 31W LED load

Mounting, dimensions, and orientation

Mount the fixture to a standard junction box using the canopy. The fixture supports both horizontal and vertical orientations to suit placement around mirrors or in hallways.

• Fixture dimensions: W 24" × H 4-1/2" × E 2-3/4"
• Canopy dimensions: W 4-1/2" × H 4-1/2" × E 1/2"
• Mounting style: Wall mount, all orientation

Environment, code, and certification

The VL17124-CH is ETL-listed and rated for damp locations. The product is specified as ADA-compliant for projection; verify local code requirements for accessible routes if applicable.

• Location rating: Damp
• Certification: ETL listed
• ADA compliant (projection meets ADA specification as listed)

Before You Order

Confirm the model number (VL17124-CH), required quantity, and desired mounting orientation before ordering.

• Fixture includes integrated LED (no replacement bulbs required)
• Wall dimmer not included — select an ELV dimmer rated for a 31W LED load
• Alternate color temperatures and custom options are available from the factory

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Mendocino LED Vanity Light Chrome VL17124-CH. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
