Kuzco Plymouth LED Vanity Light VL60637
Description
Product Overview
The Kuzco Plymouth VL60637 is an LED vanity light available in Chrome (VL60637-CH) and Black (VL60637-BK).
The technical specifications below are for the Chrome variant, VL60637-CH.
Key Features
- Chrome variant: integrated 3000K LED, 90 CRI, 2,380 total lumens and 29W.
- Chrome variant: TRIAC/ELV dimming from 100% to 10%; dimmer is optional and not included.
- Chrome variant: damp-location rated, ADA compliant, Title 24 JA8-2022 compliant and ETL certified.
- Available finishes: Chrome and Black.
Finish Options for the VL60637
The Kuzco Plymouth VL60637 is available in Chrome (VL60637-CH) and Black (VL60637-BK). The technical specifications on this page are for the Chrome variant.

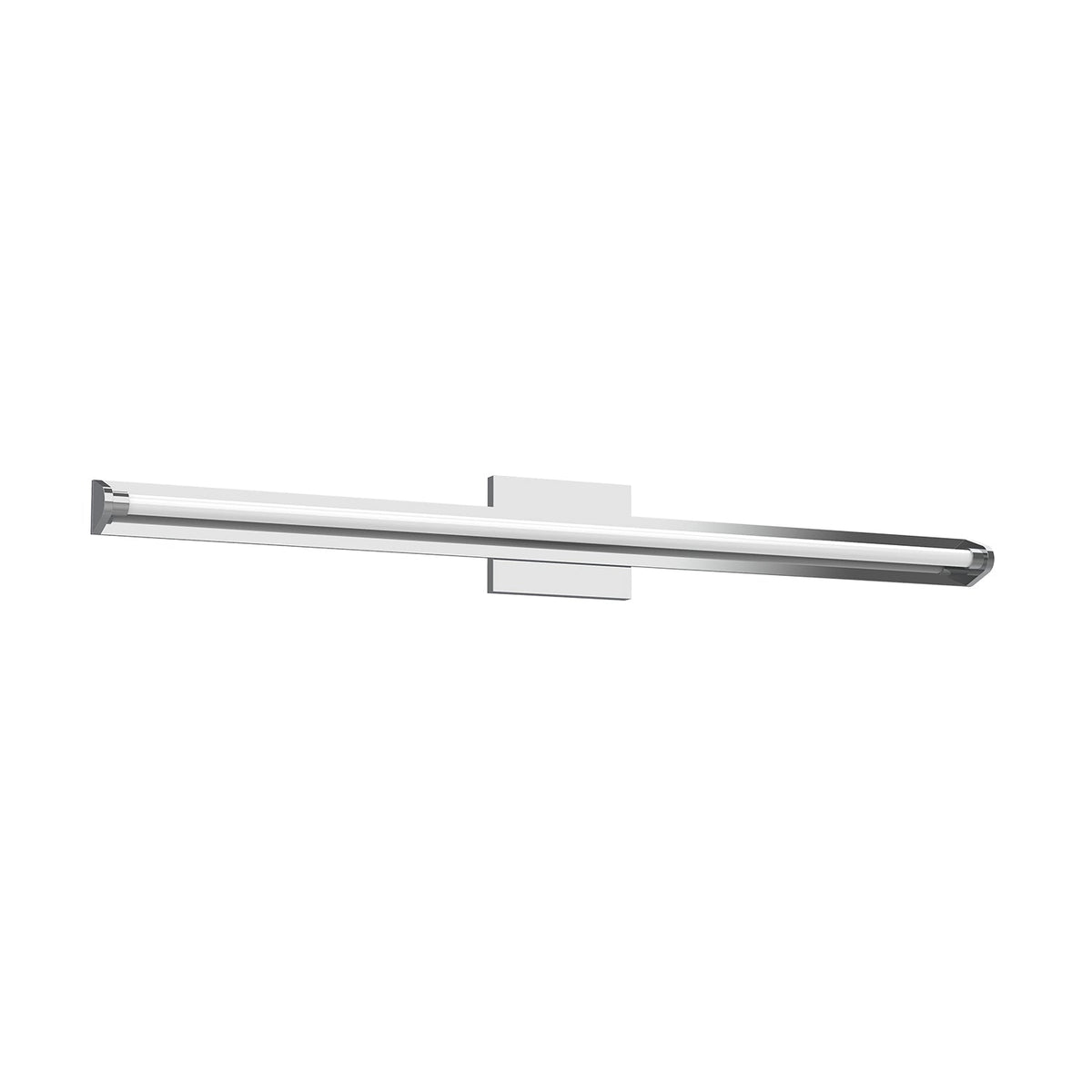

- Chrome — VL60637-CH

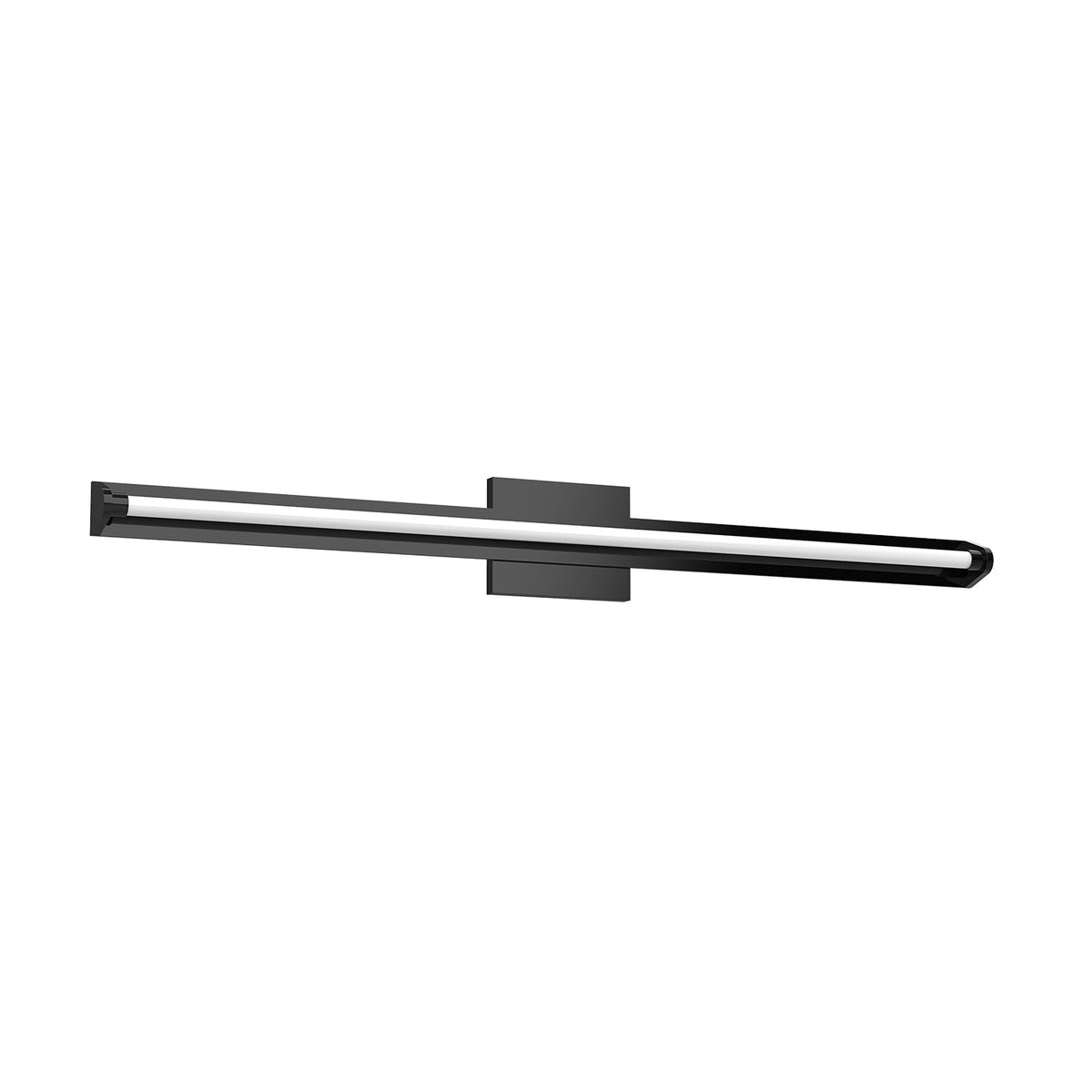

- Black — VL60637-BK
Light Output and Electrical Details
The Chrome VL60637-CH has an integrated 29W LED with 2,380 total lumens and 1,801 delivered lumens. It has a 3000K color temperature and 90 CRI.
- Input voltage: 120V
- LED life span: 50,000 hours
Dimming the Chrome Variant
The VL60637-CH supports TRIAC/ELV dimming from 100% to 10%. The dimmer is optional and not included.
Dimensions and Mounting
The Chrome fixture measures 37-1/2 inches wide, 2-7/8 inches high and 3-5/8 inches in extension. Its canopy measures 6 inches wide, 4-5/8 inches high and 1/4 inch in extension. The mounting style is wall mount, all orientation.
- Material: aluminum and polymeric material
- Diffuser: frosted PC
- Illumination direction: omnidirectional
Location and Compliance Ratings
The Chrome VL60637-CH is damp-location rated and ADA compliant. It is also Title 24 JA8-2022 compliant and ETL certified.
Before You Order
Choose the desired finish: Chrome (VL60637-CH) or Black (VL60637-BK). The technical specifications on this page are for the Chrome variant.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Kuzco Plymouth LED Vanity Light VL60637. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Kuzco |
|---|---|
| Series | Plymouth |
| Product Type | LED vanity light |
| Available SKUs | Chrome (VL60637-CH); Black (VL60637-BK) |
| Technical specification scope | Specifications below are for VL60637-CH (Chrome) |
| Dimensions | W 37-1/2 in x H 2-7/8 in x E 3-5/8 in |
| Canopy Dimensions | W 6 in x H 4-5/8 in x E 1/4 in |
| Color Temperature | 3000K |
| CRI | 90 |
| Total Lumens | 2,380 lm |
| Delivered Lumens | 1,801 lm |
| Wattage | 29W |
| Input Voltage | 120V |
| Dimming | TRIAC/ELV; optional dimmer not included |
| Dimming Range | 100% to 10% |
| Rated Life | 50,000 hours |
| Mounting Type | Wall mount, all orientation |
| Illumination Direction | Omnidirectional |
| Material | Aluminum and polymeric material |
| Shade / Diffuser | Frosted PC |
| Location Rating | Damp location |
| ADA Compliant | Yes |
| Title 24 JA8 | Yes, JA8-2022 |
| Certifications | ETL |
