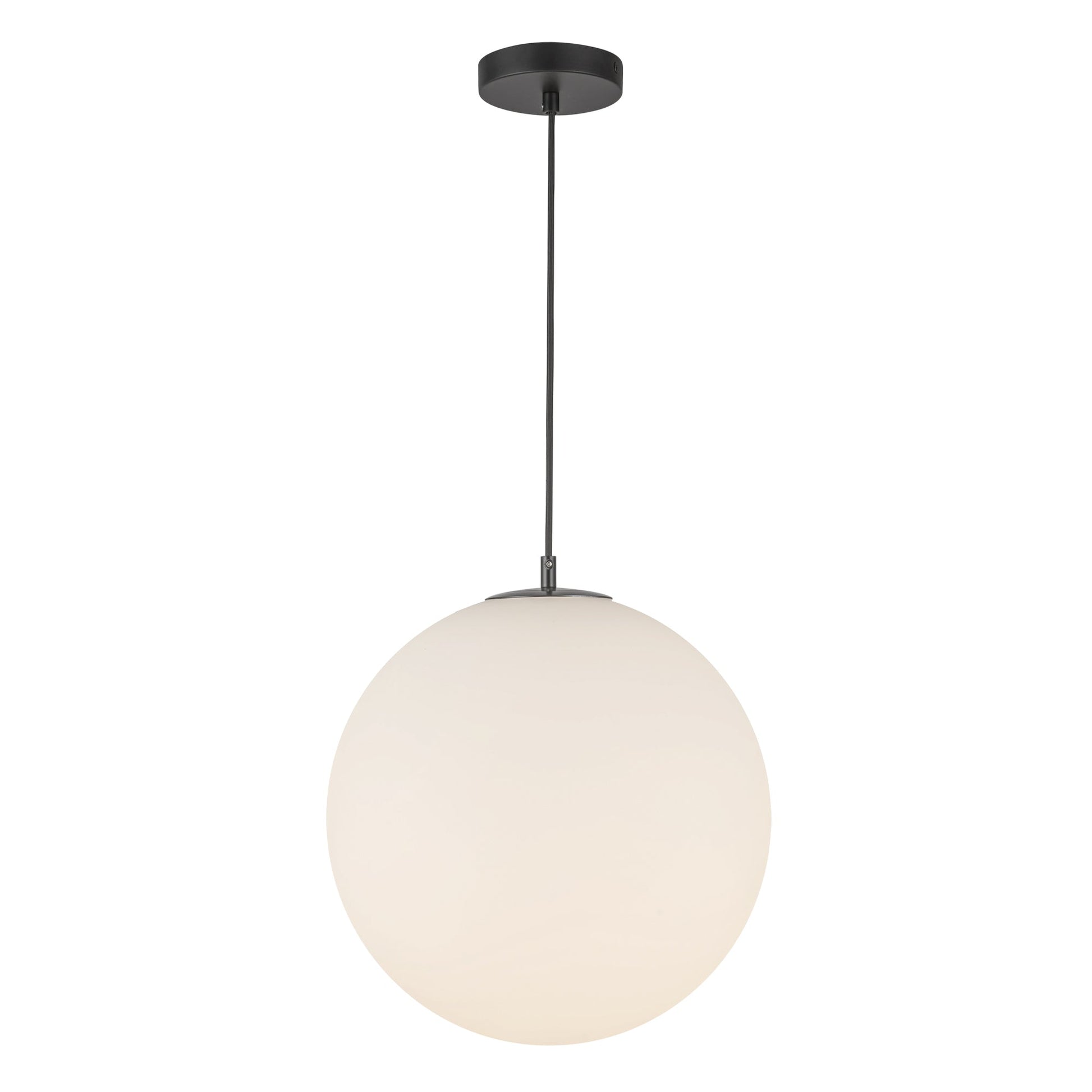

Kuzco Marco LED Pendant Black PD43616-BK/OP-5CCT-UNV
Description
Product Overview
The Kuzco Marco PD43616-BK/OP-5CCT-UNV is a black LED pendant with an integrated 19W light source and five selectable color temperatures from 2700K to 5000K. It produces 1750 total lumens and 1197 delivered lumens, with a 90 CRI rating.
Its steel-and-glass construction includes a frosted acrylic diffuser. The pendant is rated for dry locations and is adaptable to sloped ceilings. The 196-inch field-adjustable wire provides flexibility for hanging height.
Key Features
- Five selectable color temperatures from 2700K to 5000K
- Integrated 19W LED with 1750 total lumens and 90 CRI
- TRIAC/ELV dimming from 100% to 10% with a compatible dimmer, sold separately
- 196-inch wire and sloped-ceiling adaptability
- Dry-location rating, ETL certification, and Title 24 JA8-2022 compliance
Selectable Color Temperature and Light Output
The Marco pendant offers five field-selectable color temperatures spanning 2700K to 5000K. Its integrated 19W LED produces 1750 total lumens, with 1197 delivered lumens, and is rated at 90 CRI.
Dimming and Electrical Details
This pendant supports TRIAC/ELV dimming from 100% to 10% when used with a compatible dimmer. The dimmer is not included. The fixture is rated for 120–277V input.
Wire Length and Ceiling Configuration
The pendant has 196 inches of field-adjustable wire and is adaptable to sloped ceilings. Its minimum hang height is 21 inches. Check the fixture and canopy dimensions against the intended mounting location.
Materials and Location Rating
The fixture combines steel and glass with a frosted acrylic diffuser and a black finish. It is rated for dry locations and has ETL certification. The product is compliant with Title 24 JA8-2022.
Before You Order
Confirm that the 21-inch minimum hang height and 196-inch wire length suit the mounting location. If using dimming, select a compatible TRIAC/ELV dimmer; it is sold separately.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Kuzco Marco LED Pendant Black PD43616-BK/OP-5CCT-UNV. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand / series | Kuzco / Marco |
|---|---|
| Model / SKU | PD43616-BK/OP-5CCT-UNV |
| Dimensions | 15-3/4 in. diameter × 17-3/8 in. height |
| Canopy Dimensions | 5-1/8 in. diameter × 1-1/4 in. height |
| Color Temperature | 2700K–5000K, five selectable settings |
| CRI | 90 |
| Total / delivered lumens | 1750 lm / 1197 lm |
| Wattage | 19W |
| Input Voltage | 120–277V |
| Dimming | TRIAC/ELV, 100%–10%; dimmer not included |
| Rated Life | 50,000 hours |
| Wire length / minimum hang height | 196 in. / 21 in. |
| Illumination Direction | Omni-directional |
| Material / diffuser | Steel and glass / frosted acrylic |
| Finish | Black |
| Location Rating | Dry |
| Certification / compliance | ETL / Title 24 JA8-2022 |
