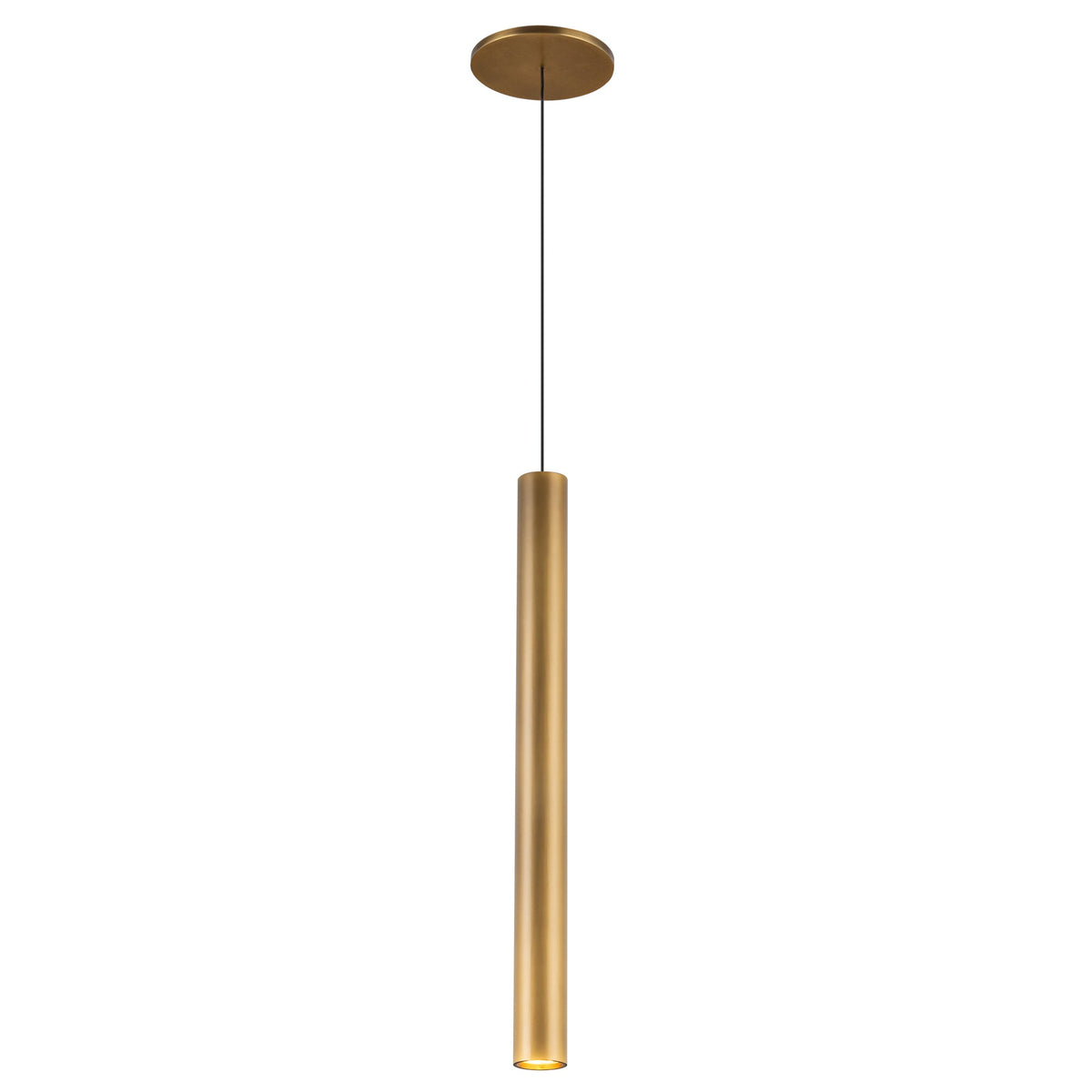

Kuzco Mason LED Pendant PD90420

Product Overview

The Kuzco Mason PD90420-VB is a 20-inch integrated LED pendant in a Vintage Brass finish. It produces 680 lumens (606 delivered) at 3000K while consuming 8W.

The fixture is ETL listed, Title 24 JA8-2022 compliant, rated for dry interior locations, TRIAC/ELV dimmable to 10%, and adaptable to sloped ceilings.

Key Features

• Integrated LED: 8W, 680 lumens (606 delivered), 3000K, 90 CRI
• Dimming: TRIAC/ELV compatible, 100–10% range (dimmer sold separately)
• Mounting: 20-inch primary dimension, 120" wire (field adjustable), minimum hang height 22", sloped-ceiling adaptable
• Construction: Aluminum and steel body with aluminum baffle; Vintage Brass finish
• Certifications: ETL listed; California Title 24 JA8-2022 compliant; rated for dry locations

What this fixture does

The Kuzco Mason PD90420-VB is an integrated LED pendant that provides down-directed illumination for residential interior spaces. Its 20-inch primary dimension and aluminum-baffle shade direct light downward for task and accent applications.

• Integrated LED design eliminates the need for separate bulbs
• Down-directed light for task and accent use

Performance and light quality

The fixture delivers 680 lumens (606 delivered) at 3000K with a 90 CRI. The integrated LED is rated for 50,000 hours.

• Total lumens: 680 lm
• Delivered lumens: 606 lm
• Color temperature: 3000K
• Color rendering: 90 CRI
• LED rated life: 50,000 hours

Dimming compatibility

The pendant is compatible with TRIAC/ELV wall dimmers and supports dimming from 100% down to 10%. The wall dimmer is sold separately.

• Dimming type: TRIAC/ELV
• Dimming range: 100–10%
• Select a dimmer rated to work with LED loads and the fixture's wattage

Mounting, dimensions, and wiring

PD90420-VB includes a 120-inch field-adjustable wire and a canopy sized to fit standard 120V junction boxes. The fixture is adaptable to sloped ceilings and specifies a minimum hang height as supplied.

• Primary dimension: 20 in
• Fixture dimensions: D1-5/8" x H20-1/8"
• Canopy dimensions: D4-3/4" x H3/8"
• Wire length: 120" (field adjustable)
• Minimum hang height: 22"
• Sloped ceiling adaptable: Yes

Certifications and suitability

The fixture is ETL listed and meets California Title 24 JA8-2022 requirements for high-efficacy residential lighting. It is rated for dry interior locations and is finished in Vintage Brass on an aluminum and steel body with an aluminum baffle.

• Certifications: ETL listed; JA8-2022 compliant
• Location rating: Dry locations
• Materials: Aluminum and steel with aluminum baffle
• Finish: Vintage Brass
• Country of origin: China

Before You Order

Confirm the SKU and finish (PD90420-VB, Vintage Brass) and that the fixture rating (dry locations) matches your installation environment.

• Choose a TRIAC/ELV wall dimmer rated to work with LED loads and the fixture's 8W power draw; dimmer is not included.
• Verify canopy and fixture dimensions against your mounting location and junction box.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Mason LED Pendant PD90420. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
