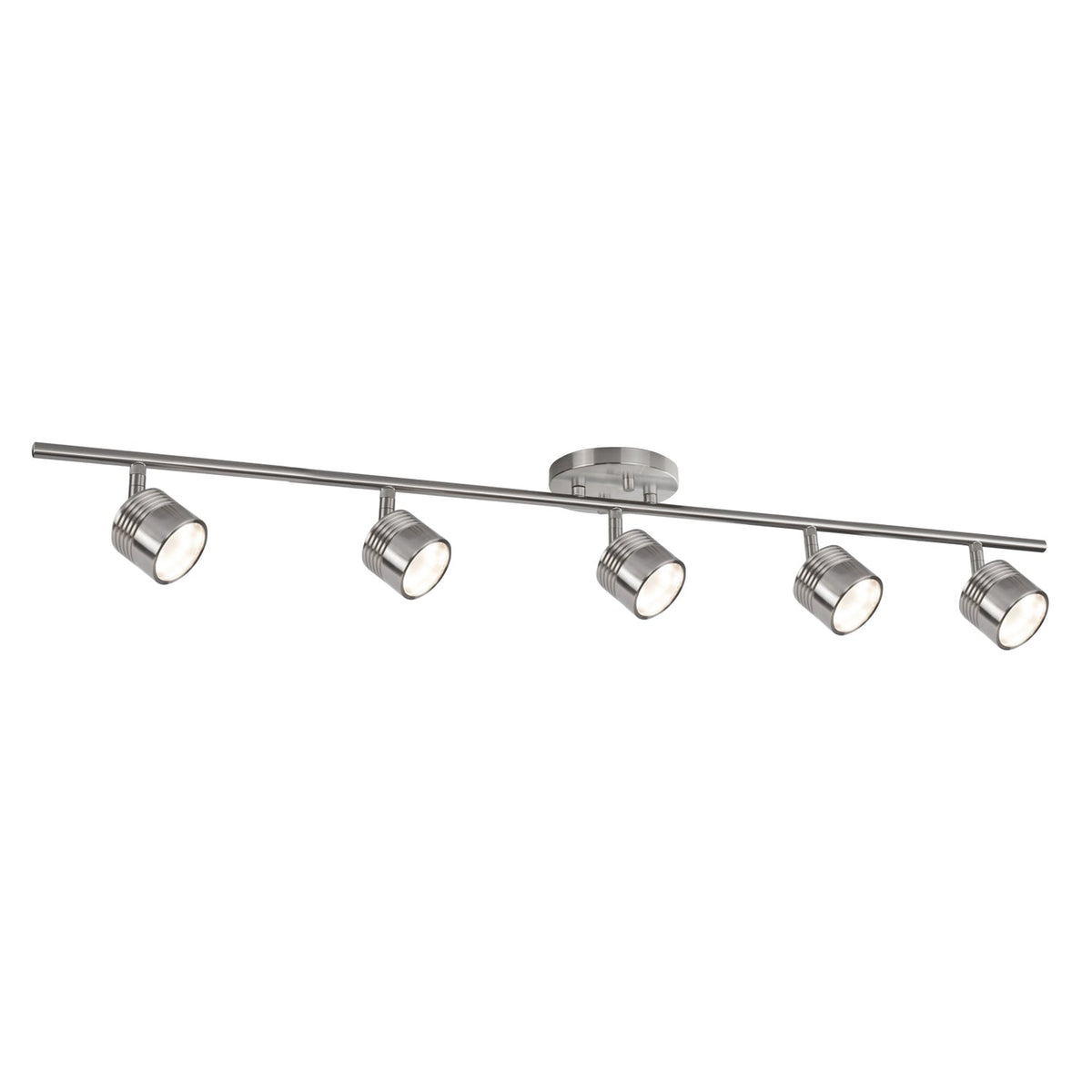

Kuzco Lyra LED Track Light TR10036

Product Overview

The Kuzco Lyra TR10036 is an integrated LED track light available in Brushed Nickel (TR10036-BN) and Black (TR10036-BK). It produces 2000 lumens (1588 delivered) at 3000K with a 90 CRI while drawing 27W.

Rated for dry interior locations, the fixture is ETL listed and compliant with California Title 24 JA8-2022. It supports ELV dimming to 10% with a compatible ELV wall dimmer (dimmer sold separately).

Key Features

• Integrated LED: 27W producing 2000 lm (1588 lm delivered) at 3000K, 90 CRI
• Dimmable via ELV controls: 100–10% (dimmer not included)
• Certifications: ETL listed and Title 24 JA8-2022 compliant
• Mounting & orientation: Ceiling or wall mounting; down illumination
• Construction & finish options: Steel and glass construction; Brushed Nickel or Black finishes

Function and light output

The Lyra TR10036 provides warm-white 3000K light with 90 CRI. The integrated LED consumes 27W and is rated at 2000 lumens total output; delivered lumens are listed as 1588 lm, which reflects fixture optics and distribution.

LED life is specified at 50,000 hours.

• Color temperature: 3000K
• CRI: 90
• Total lumens: 2000 lm
• Delivered lumens: 1588 lm
• Wattage: 27W
• Rated LED life: 50,000 hours

Dimming and controls

The fixture supports ELV (electronic low-voltage) dimming with a compatible ELV wall dimmer and is specified to dim from 100% down to 10%. The wall dimmer and any required track components are not included.

Choose a dimmer that is compatible with ELV loads and is appropriate for the fixture's 27W load per the dimmer manufacturer's specifications.

• Dimming method: ELV (dimmer not included)
• Dimming range: 100%–10%
• Select a dimmer rated for the fixture's 27W load

Mounting and dimensions

The Lyra is a 36-inch track fixture designed for mounting on compatible track systems and supports installation on ceilings or walls in the orientations indicated by the track system. It provides down illumination.

Use the listed fixture and canopy dimensions to confirm fit with your track layout and clearances.

• Primary dimension / track length: 36 in
• Fixture dimensions: L36" x W4-7/8" x H5-3/4"
• Canopy dimensions: D4-3/4" x H3/4"
• Illumination direction: Down

Certifications and suitability

The TR10036 is ETL listed and meets the California Title 24 JA8-2022 high-efficacy requirement. It is rated for dry interior locations.

Materials and origin are provided for specification: steel and glass construction; country of origin China.

• Certification: ETL listed
• Title 24: JA8-2022 compliant
• Location rating: Dry locations only
• Materials: Steel and glass
• Country of origin: China

Before You Order

Confirm the exact SKU and finish, and verify your track type and dimmer compatibility with a 27W integrated LED fixture before ordering.

• This product is available as TR10036-BN (Brushed Nickel) and TR10036-BK (Black) — specify the desired SKU when ordering.
• Dimmers and track mounting hardware are not included; purchase a compatible ELV dimmer rated for the fixture's 27W load separately.
• Rated for dry interior locations only.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Lyra LED Track Light TR10036. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
