Kuzco Horizon LED Ceiling Fan CF96956

Product Overview

The Kuzco Horizon CF96956 is a 56-inch integrated LED ceiling fan available in multiple finishes. It provides 3000K light at 90 CRI and is rated for damp locations.

The integrated system draws Total 53W Max (20W LED + Max 33W motor) and produces 1900 lumens (delivered lumens: 1282 lm). It includes integrated dimming with remote capability and an LED rated life of 50,000 hours.

Key Features

• 56-inch Horizon series ceiling fan with integrated 3000K LED, 90 CRI
• Total 53W Max (20W LED + Max 33W motor); 1900 lm (1282 delivered)
• Integrated dimming (100–10%) with remote control capability
• Damp-location rated
• Aluminum and steel body with ABS blades and polymeric diffuser
• Sloped ceiling adaptable up to 25°; minimum hang height: 13"; 78" wire and safety cable

What this fan does

The Kuzco Horizon CF96956 combines a 56-inch ceiling fan with an integrated LED light to provide air movement and down-directed illumination. The fixture is intended for interior spaces where a damp-location rating and higher CRI are preferred.

• Integrated LED provides the illumination—no separate lamps required.
• Damp-location rating allows installation in humid indoor areas where a damp listing is appropriate.

Light and power performance

The integrated LED produces 1900 lumens (1282 delivered) at 3000K with a 90 CRI. The combined maximum power is Total 53W, composed of 20W for the LED and up to 33W for the motor. The LED is rated for 50,000 hours.

• Color temperature: 3000K
• CRI: 90
• Total lumens: 1900 lm; delivered lumens: 1282 lm
• Wattage: Total 53W Max (20W LED + Max 33W motor)
• LED rated life: 50,000 hours

Dimming and controls

The fixture includes integrated dimming and supports remote dimming to 10% output. Compatible control hardware (remote or wall dimmer) is not included.

• Dimming range: 100–10%
• Remote dimming supported; control hardware sold separately

Mounting and physical dimensions

The fan mounts with a compact canopy, includes 78" of wire and a 78" safety cable, and is adaptable to sloped ceilings up to 25 degrees. Note the minimum hang height when planning installation.

• Primary span: 56 in
• Fixture dimensions: D56" x H13-1/4"
• Canopy dimensions: D6" x H2-3/8"
• Minimum hang height: 13"
• Wire length: 78" with 78" safety cable
• Sloped ceiling adaptable up to 25°

Construction and certification

The fixture has an aluminum and steel body, ABS blades, and a polymeric diffuser. It is UL listed and manufactured in China.

• Materials: Aluminum and steel body; ABS blades; polymeric diffuser
• Certification: UL listed

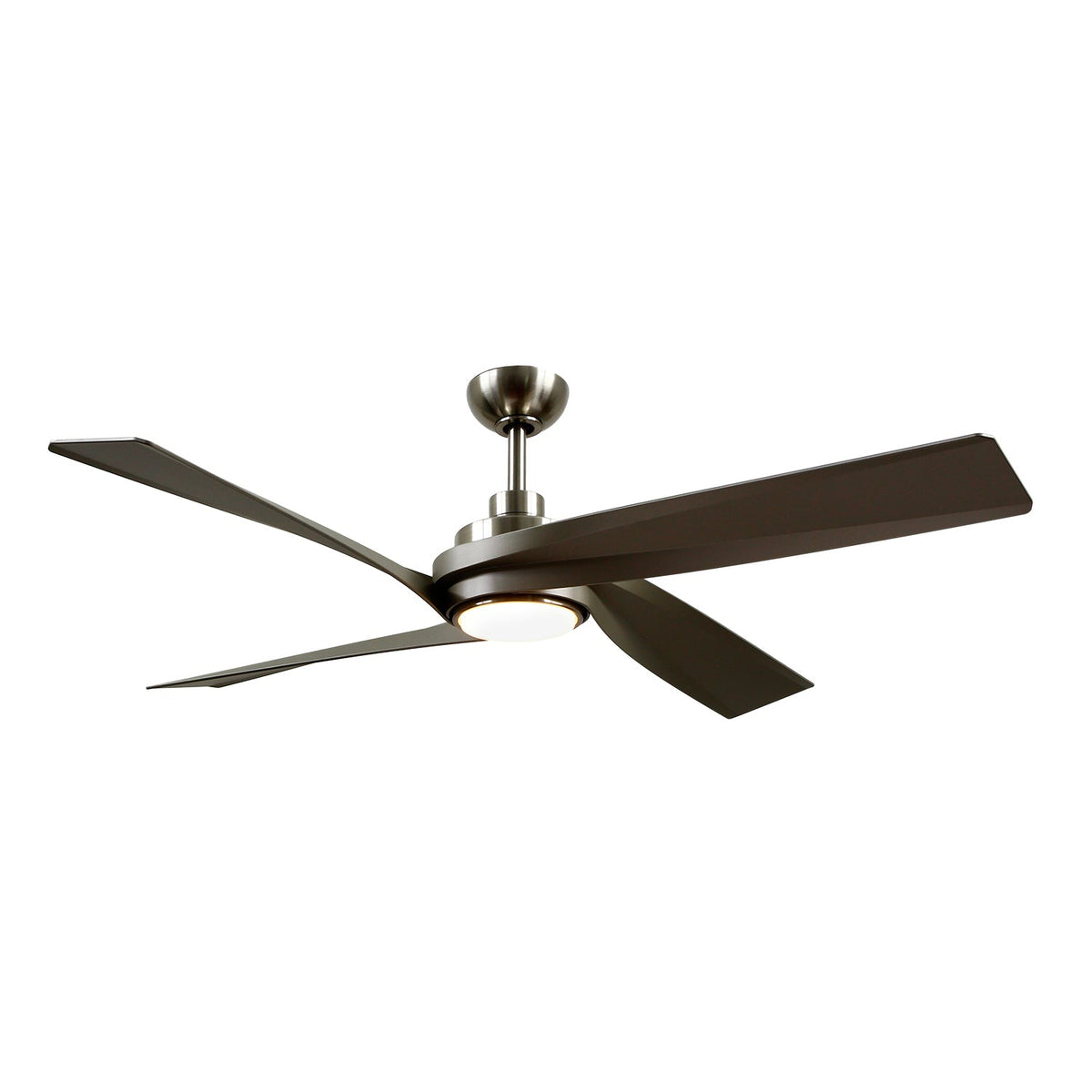

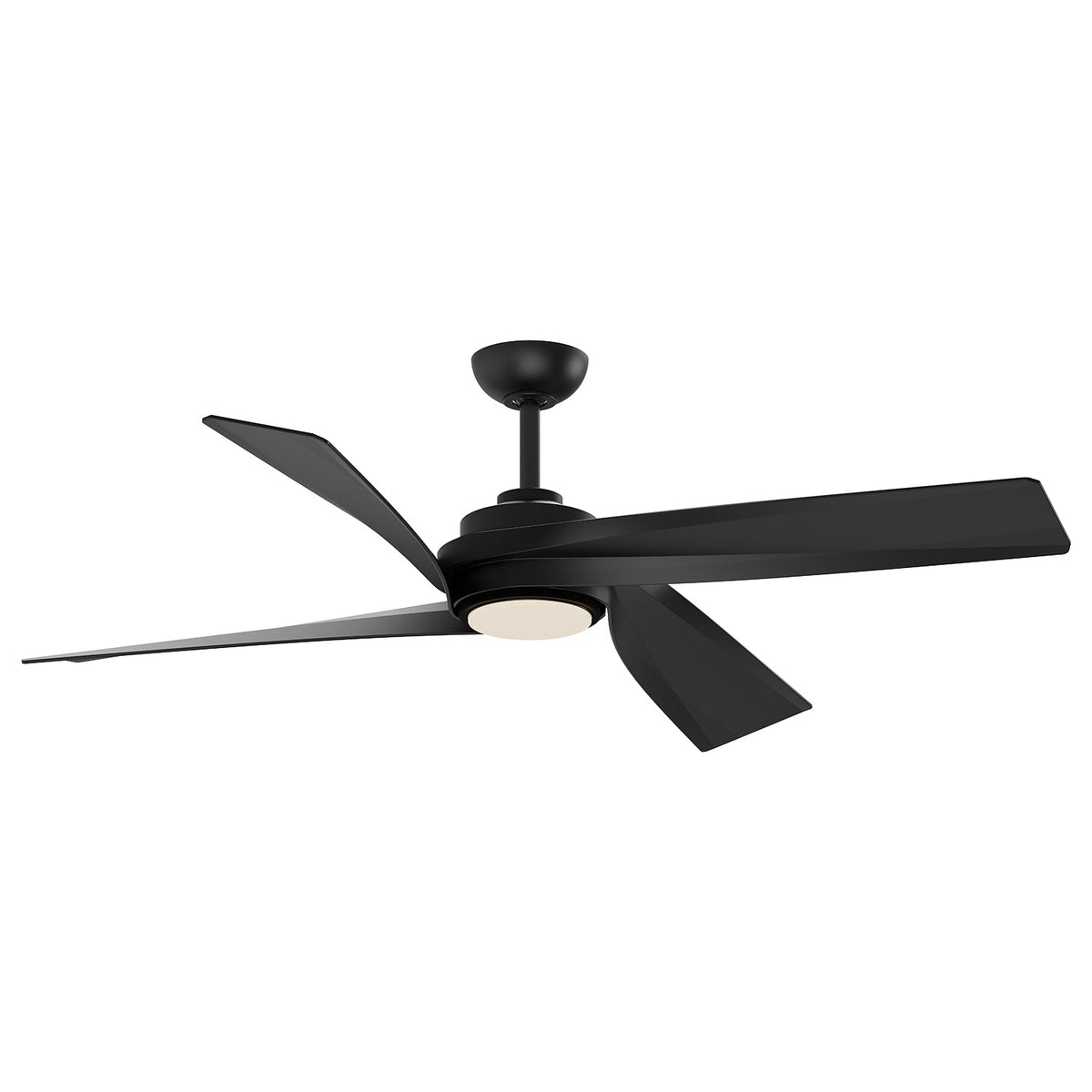

• Finish options include Matte Black, Brushed Nickel, Brushed Gold
• Country of origin: China

Before You Order

Confirm the model number and finish before ordering. Control hardware (remote or wall dimmer) is sold separately.

• Verify ceiling slope — unit adapts up to 25°.
• Measure installation height — minimum hang height is 13".
