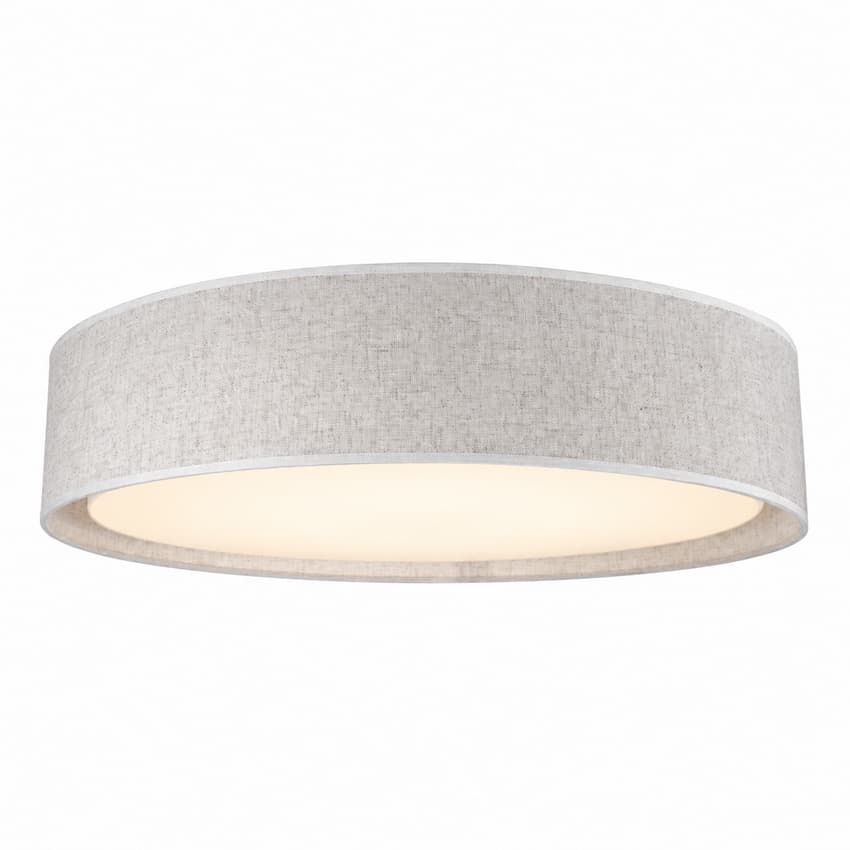

Kuzco Dalton LED Flush Mount

Product Overview

The Kuzco Dalton FM7920-WOR-5CCT is a 20" LED flush‑mount fixture with a White Organza fabric band and a white acrylic diffuser. The integrated AC LED module is 32W and is specified at 2,380 total lumens for the module.

This SKU offers field-selectable color temperatures (2700K–5000K, 5‑CCT), 90 CRI, ELV dimming to 10% with a compatible ELV wall dimmer (sold separately), and a dry‑location rating. It is listed as compliant with California Title 24 JA8-2022.

Key Features

• 20" diameter x 5-1/4" high flush mount with organza fabric band and white acrylic diffuser
• Integrated AC LED module — 32W, 2,380 total lumens (module), 50,000‑hour rated life
• Field-selectable 2700K–5000K (5‑CCT) available on select SKUs
• 90 CRI color rendering
• ELV dimmable 100%–10% (compatible dimmer not included)
• ETL listed and CEC Title 24 JA8-2022 compliant
• Rated for dry interior locations

What this fixture does

The FM7920-WOR-5CCT is a surface-mounted ceiling fixture that provides general, omni-directional ambient lighting from an integrated LED module. No separate lamp installation is required.

• Integrated AC LED module — no lamp to install
• Omni-directional illumination for ambient lighting
• Typical residential uses include living rooms, bedrooms, hallways, entries, and dining areas

Light output and quality

The LED module is specified at 2,380 total lumens. The listing includes a delivered‑lumens figure of 1,583 lm for the configured product. Color rendering is specified at 90 CRI and the LED is rated for 50,000 hours.

• Total (module) lumens: 2,380 lm
• Delivered lumens (listed): 1,583 lm
• CRI: 90
• LED rated life: 50,000 hours
• Color temperature: field-selectable 2700K–5000K (5‑CCT) on applicable SKUs

Dimming compatibility

The fixture supports ELV (electronic low-voltage) dimming from 100% down to 10% when used with a compatible ELV wall dimmer. The dimmer is not included.

• Dimming type: ELV (electronic low-voltage)
• Dimming range: 100%–10%
• Select a wall dimmer rated for the fixture’s 32W load

Dimensions and materials

The FM7920 pairs a concentric polymeric diffuser with a hand-tailored fabric band (organza on this SKU). The construction uses steel and fabric/linen details with a white acrylic diffuser.

• Fixture dimensions: D 20" x H 5-1/4"
• Primary diameter: 20"
• Shade: White Organza fabric band
• Diffuser: White acrylic diffuser
• Materials referenced: steel and linen/textured fabric details

Certifications and suitable locations

The product is ETL listed and is indicated as compliant with CEC Title 24 JA8-2022. It is rated for dry interior locations and is specified as manufactured in China.

• Certification: ETL listed
• CEC Title 24: JA8-2022 compliant
• Location rating: Dry
• Country of origin: China

Before You Order

This page describes the FM7920-WOR-5CCT: White Organza finish with selectable 2700K–5000K (5‑CCT).

• Choose the correct FM7920 SKU for a different finish or a fixed color temperature.
• Pair with a compatible ELV wall dimmer rated for the fixture’s 32W load; dimmer sold separately.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Dalton LED Flush Mount. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
