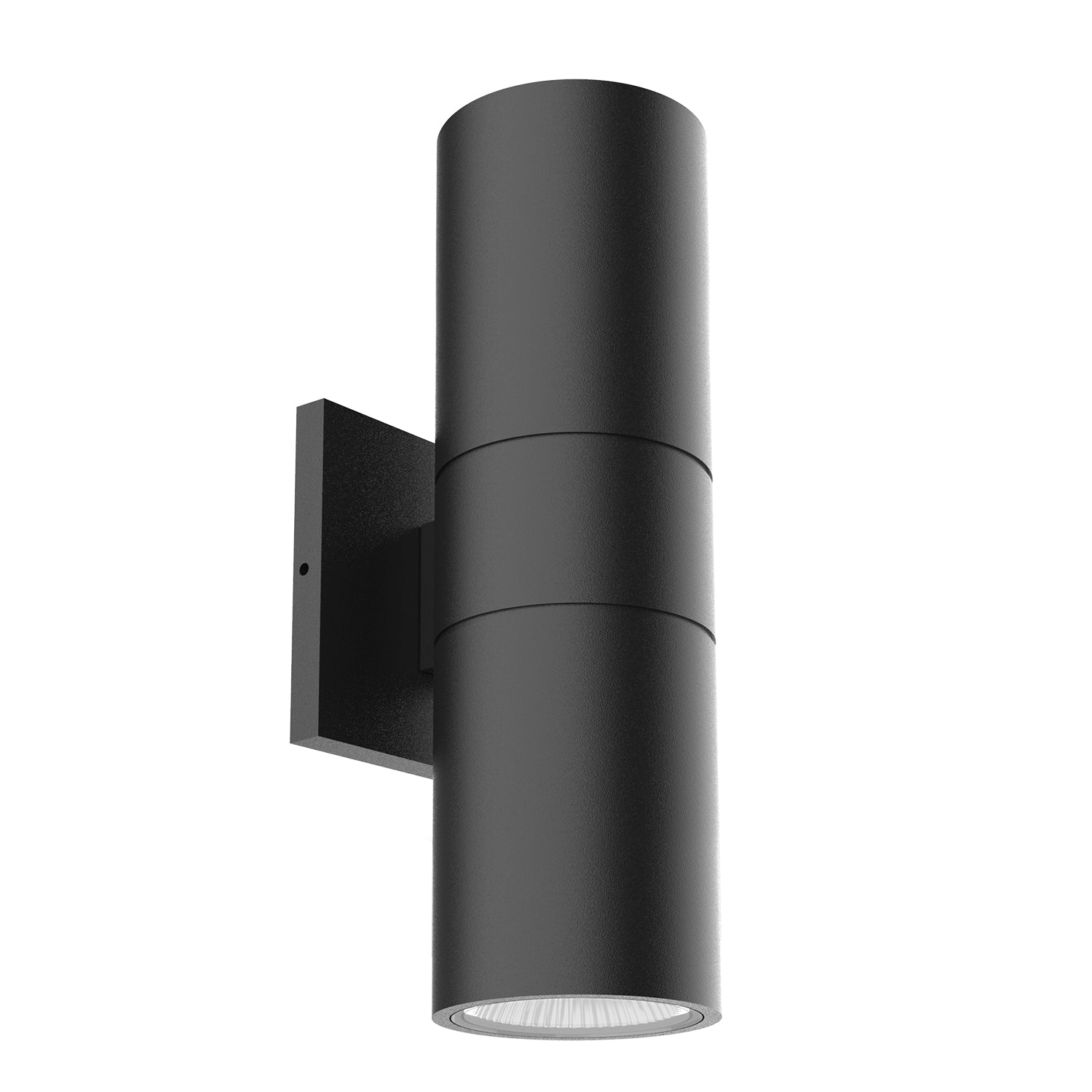

Kuzco Lund LED Exterior Wall Sconce Black EW3212-BK

Product Overview

The Kuzco Lund EW3212-BK is a 12-inch integrated LED exterior wall sconce in a black powder-coated finish. It uses a 31W AC LED module to produce 2200 total lumens (1829 delivered for the black model) at 3000K with 90 CRI.

Designed for wet locations, the fixture directs light upward and downward and includes clear glass with a parabolic aluminum reflector. The product is ETL wet-location listed.

Key Features

• Integrated 31W AC LED module — 2200 total lumens (1829 delivered for BK)
• 3000K color temperature with 90 CRI
• ELV dimmable 100%–10% (ELV dimmer sold separately; dimmer must be rated for the 31W load)
• ETL wet-location listed
• Die-cast aluminum housing with clear glass and parabolic aluminum reflector
• LED rated life: 50,000 hours

What this fixture does

The Kuzco Lund EW3212-BK is an exterior wall sconce that casts light both upward and downward to wash exterior walls and highlight entries, facades, or outdoor living areas. Its integrated LED supplies continuous directional illumination from a compact cylinder profile.

• Illumination direction: up and down
• Common applications: covered entry and porch lighting, exterior wall accents, patio and outdoor living spaces

Light output and optical performance

The fixture's AC LED module consumes 31W and produces 2200 total lumens; the black model lists 1829 delivered lumens. Color temperature is 3000K with a 90 CRI. LED rated life is 50,000 hours.

• Total lumens: 2200 lm
• Delivered lumens (BK): 1829 lm
• Color temperature: 3000K
• CRI: 90
• Rated life: 50,000 hours

Electrical requirements and dimming

The Lund EW3212-BK is designed for 120V line voltage and draws 31W. It supports ELV dimming from 100% down to 10% when used with a compatible ELV wall dimmer; the dimmer is not included and must be rated for the fixture's 31W load.

• Input voltage: 120V
• Wattage: 31W
• Dimming: ELV (100%–10%), dimmer sold separately

Materials, finish, and durability

The fixture is constructed from die-cast aluminum with a powder-coated black finish (paint code BK02). It uses clear glass with a parabolic aluminum reflector to shape the beam and is ETL wet-location listed.

• Material: die-cast aluminum + clear glass
• Finish: black (BK02)
• Optical: parabolic aluminum reflector
• Certification: ETL wet-location listed

Dimensions and canopy

Confirm the fixture and canopy dimensions for mounting location and backbox clearance.

• Fixture dimensions: Ø 3-1/2" x H 12" x E 4-1/2" (listed as W 3-1/2" x H 12" x E 4-1/2")
• Canopy dimensions: W 4-1/2" x H 4-1/2" x E 1/2"
• Primary dimension: 12-inch overall height

Before You Order

Confirm the model number and quantity required. Other color temperatures (2700K–5000K) are available from the factory with minimum order quantities.

• Verify wall backbox and canopy fit against the listed canopy dimensions.
• If dimming is needed, select an ELV wall dimmer rated for the 31W load (dimmer sold separately).
