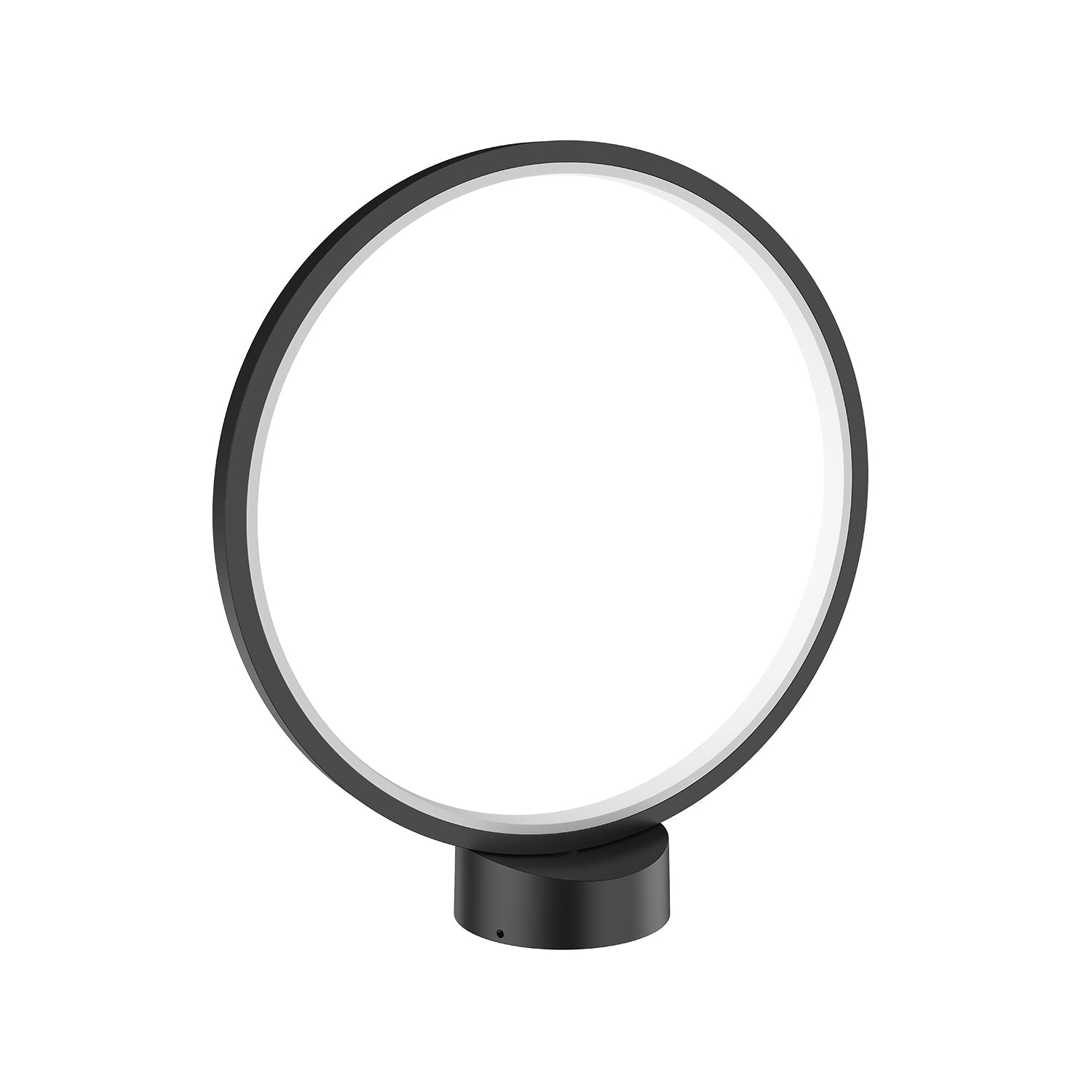

Kuzco Parc LED Exterior Low Voltage Landscape Black EG64816-BK

Product Overview

The Kuzco Parc EG64816-BK is a black exterior low-voltage landscape fixture with an integrated 12W LED that produces 1015 lumens (820 delivered) at 3000K and 90 CRI.

The fixture is constructed from aluminum and polycarbonate with a frosted PC diffuser, includes a 24" wire lead, is ETL certified, and carries a wet-location rating. It requires a separate outdoor-rated 12V transformer.

Key Features

• Integrated 12W LED — 1015 total lumens, 820 delivered
• 3000K color temperature with 90 CRI
• Wet-location rated (ETL listed)
• Aluminum and polycarbonate construction with frosted PC diffuser
• 12V input; 24" wire lead

What this fixture does

The Kuzco Parc EG64816-BK is an integrated LED exterior low-voltage landscape fixture intended for residential exterior lighting applications such as covered entries, exterior walls, patios and outdoor living areas.

• Omni-directional illumination
• Typical applications listed by the manufacturer include covered entry and porch lighting, exterior wall and facade accents, and patio/outdoor living spaces

Light output and color performance

The integrated LED produces 1015 lumens (manufacturer-listed total lumens) and 820 delivered lumens at a correlated color temperature of 3000K with a 90 CRI. The LED is listed with a rated life of 50,000 hours.

• Total lumens: 1015 lm
• Delivered lumens: 820 lm
• Color temperature: 3000K
• CRI: 90
• Rated LED life: 50,000 hours

Voltage and transformer requirement

This fixture is specified for 12V low-voltage systems and requires an outdoor-rated low-voltage transformer, which is not included with the fixture.

• Input voltage: 12V (transformer supplied by others)
• Select an outdoor-rated transformer appropriate to your system — transformer is sold separately

Materials, diffuser and environmental rating

The Parc EG64816-BK uses an aluminum and polycarbonate housing with a frosted PC diffuser. The fixture is ETL certified and has a wet-location rating.

• Housing: Aluminum + PC
• Diffuser: Frosted PC
• Certification: ETL
• Environmental suitability: Wet-location rated

Size and wire lead

Use the listed dimensions and the 24" wire lead length when planning placement and clearances.

• Primary dimension: 16-in
• Fixture dimensions: L15" x W4-3/4" x H16-1/2"
• Wire lead length: 24"

Before You Order

Confirm model number, required quantity, and that you will supply a compatible outdoor-rated 12V transformer.

• Verify the fixture dimensions and 24" lead will work for your planned location

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Parc LED Exterior Low Voltage Landscape Black EG64816-BK. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
