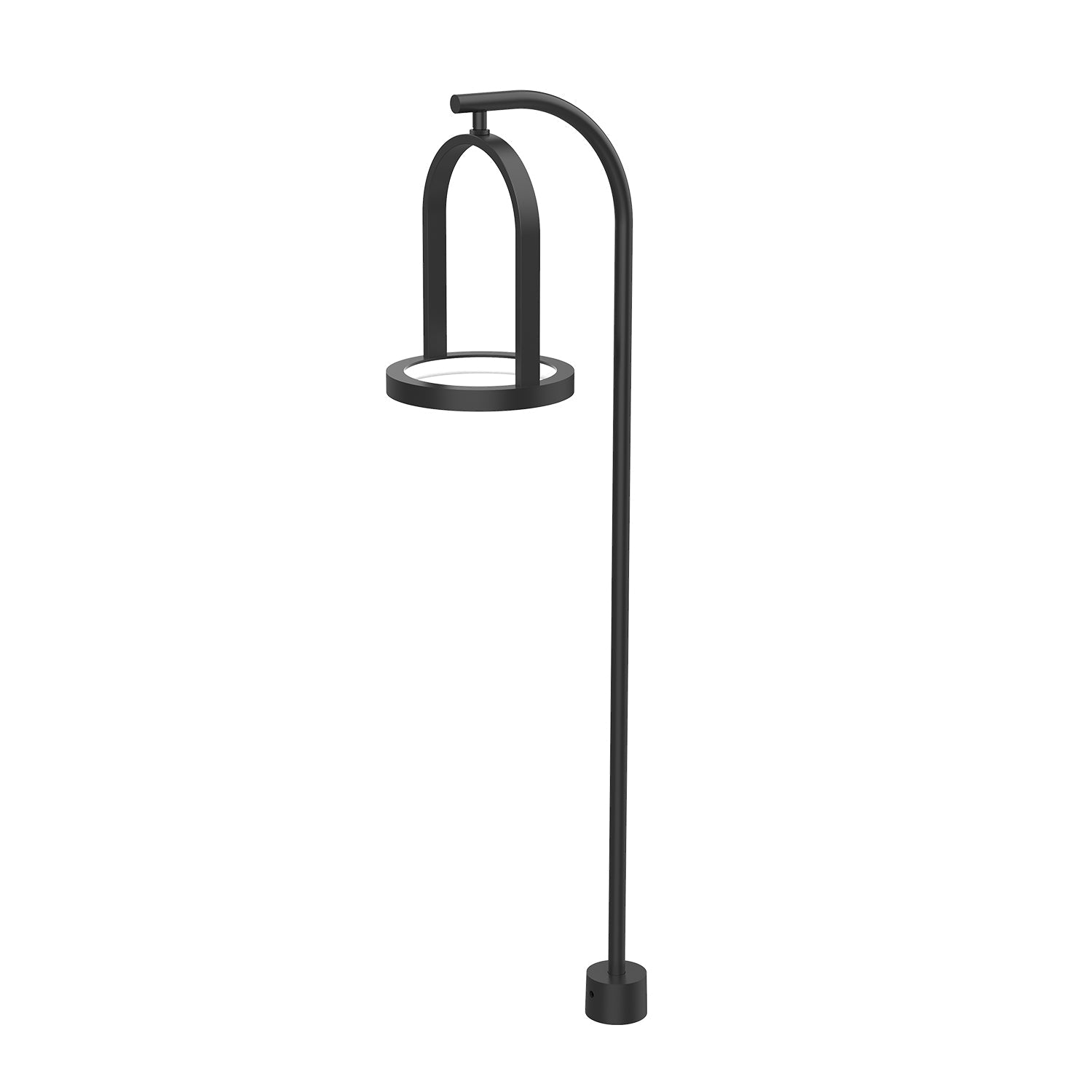

Kuzco Trek LED Exterior Low Voltage Landscape Black EG17828-BK

Product Overview

The Kuzco Trek EG17828-BK is a 12V low-voltage exterior landscape lantern with an integrated 3000K LED. The LED source is rated at 6W and 400 total lumens; the black finish variant is specified at 100 delivered lumens.

Constructed of aluminum and polymeric materials with a frosted acrylic diffuser, the fixture includes a 24" lead wire, carries an ETL wet-location rating, and has an LED rated life of 50,000 hours.

Key Features

• Integrated LED: 6W, 400 total lumens; 100 delivered lumens for the black finish variant; 3000K color temperature; 90 CRI
• Wet-location rated (ETL listed)
• Materials: aluminum plus polymeric components with frosted acrylic diffuser
• 12V low-voltage operation — requires an outdoor-rated low-voltage transformer (sold separately)
• Fixture dimensions: L 8-3/8" × W 5-1/4" × H 28-1/8"; 24" wire lead

What this fixture does

The Kuzco Trek EG17828-BK provides omni-directional exterior illumination from an integrated LED source. The LED engine is rated at 400 total lumens and is specified at 100 delivered lumens for the black finish variant. Color temperature is 3000K with a 90 CRI rating.

• Integrated 6W LED—no separate lamp required
• Omni-directional output suitable for general accent and porch illumination

Electrical and transformer requirements

The fixture is designed for 12V low-voltage systems and must be used with an outdoor-rated low-voltage transformer; the transformer is not supplied with the fixture.

• Input voltage: 12V low-voltage
• Transformer: outdoor-rated low-voltage transformer required (sold separately)

Typical applications

Typical uses include covered entry and porch lighting, exterior wall and façade accents, and patio or outdoor living area illumination where a lantern-style fixture is desired.

• Covered entry and porch lighting
• Exterior wall and façade accents
• Patio and outdoor living spaces

Construction, finish and dimensions

The Trek uses aluminum and polymeric materials with a frosted acrylic diffuser for even light distribution. The fixture includes a 24" lead wire. A garden spike is referenced in the Trek family documentation.

• Finish: Black (paint finish BK02)
• Materials: aluminum and polymeric materials; frosted acrylic diffuser
• Fixture dimensions: L 8-3/8" × W 5-1/4" × H 28-1/8"
• Wire lead: 24"

Certifications and LED life

The EG17828-BK is ETL listed for wet locations and the integrated LED is rated for 50,000 hours. Refer to the manufacturer for warranty details.

• Certification: ETL
• LED rated life: 50,000 hours
• Location rating: Wet

Before You Order

Confirm the correct SKU and quantity. The fixture requires a separate outdoor-rated 12V transformer (not included).

• Verify EG17828-BK is the required model for your project
• Plan to provide an outdoor-rated 12V transformer separately
