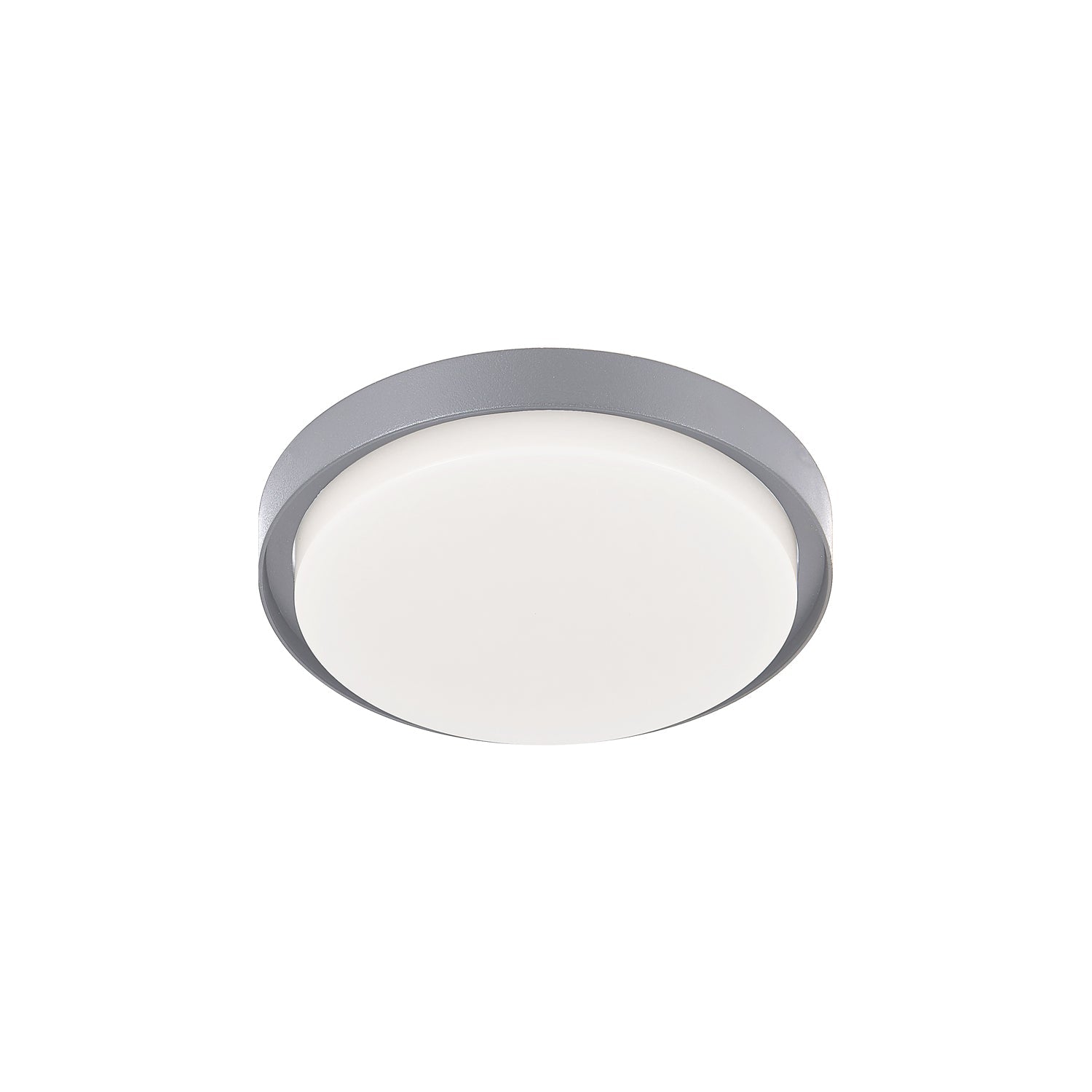

Kuzco Bailey LED Exterior Ceiling Gray EC44509-GY

Product Overview

The Kuzco Bailey EC44509-GY is an integrated LED exterior ceiling fixture finished in gray with a cast aluminum body and a frosted opal (PC) diffuser.

The fixture is wet-location rated, uses an AC LED module that consumes 21W from a 120V supply, and provides 1600 total lumens (1272 delivered) at 3000K with a 90 CRI. ELV dimming from 100% to 10% is supported; dimmer is not included.

Key Features

• Integrated AC LED module — 21W, 1600 total lumens (1272 delivered), 50,000 hour rated life
• 3000K color temperature with 90 CRI
• Dimmable 100%–10% with compatible ELV wall dimmer (sold separately)
• Wet-location rated
• Cast aluminum body with lightly textured powder-coat gray finish and frosted PC (opal) diffuser
• Mounts on ceiling or wall in any orientation; downward illumination

Function and light output

The EC44509-GY uses an integrated AC LED module rated at 21W and specified at 1600 total lumens. Through the frosted opal diffuser the delivered output is listed as 1272 lumens at 3000K. The LED source is specified at 90 CRI.

• Total lumens: 1600 lm
• Delivered lumens (GY): 1272 lm
• Color temperature: 3000K
• CRI: 90

Recommended applications

The fixture is rated for wet locations and is intended for exterior use. Typical installations include covered entries, porches, patios, and exterior walls where a low-profile, down-illuminating ceiling or wall fixture is desired.

• Covered entry and porch lighting
• Exterior wall and facade accents
• Patio and outdoor living spaces

Electrical and dimming

The Bailey EC44509-GY is specified for 120V input and consumes 21W. It supports ELV dimming from 100% to 10% with a compatible ELV wall dimmer; a dimmer is not supplied with the fixture.

• Input voltage: 120V
• Wattage: 21W
• Dimming: ELV 100%–10% (dimmer not included)
• LED rated life: 50,000 hours

Dimensions and construction

Circular cast aluminum body with a lightly textured powder-coat gray finish and a round opal polymeric diffuser. The fixture mounts on ceiling or wall in any orientation and provides downward-directed light.

• Fixture dimensions: D 8-3/4" x H 1-1/2"
• Primary diameter: 8 in
• Material: Aluminum with frosted PC (opal) diffuser
• Finish: Gray (GY01)

Ratings, life span, and certification

The EC44509-GY is specified for wet locations and carries an ETL listing. The integrated LED module is specified at a rated life of 50,000 hours.

• Location rating: Wet
• Certification: ETL
• LED life: 50,000 hours
• Country of origin: China

Before You Order

Confirm the model number and quantity before ordering; ELV dimmers and mounting hardware are not included.

• Verify the EC44509-GY model for the gray finish
• Select an ELV dimmer rated for the fixture's 21W load if dimming is required
• For alternate color temperatures or custom options, consult the factory (minimum order quantities may apply)
