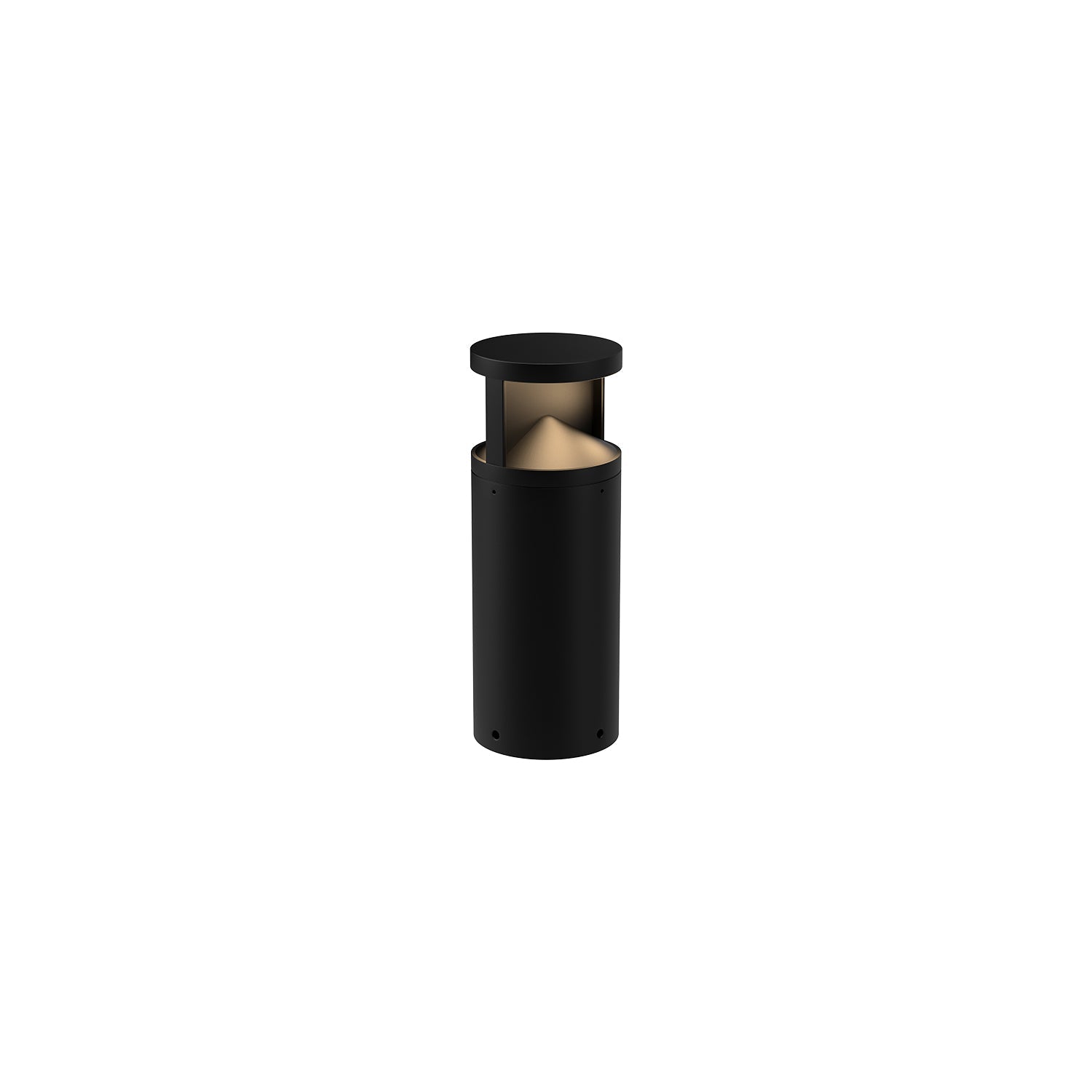

Kuzco Dover LED Exterior Bollard Black [Universal Voltage] EB83317-BK-UNV

Product Overview

The Kuzco Dover EB83317-BK-UNV is a 17" integrated-LED exterior bollard finished in black with universal 120–277V input. The integrated 24W LED is listed at 2500 lumens nominal and 1063 lumens delivered at 3000K with an 80 CRI.

The fixture is wet-location rated, constructed from aluminum, ETL certified, and supports TRIAC/ELV dimming to 10% when used with a compatible wall dimmer (dimmer sold separately).

Key Features

• Integrated 24W LED — 2500 lm nominal, 1063 lm delivered at 3000K, 80 CRI
• Universal input voltage: 120–277V
• TRIAC/ELV dimmable to 10% (dimmer not included)
• Wet-location rated
• Aluminum construction with black finish; ETL certified
• Rated LED life: 50,000 hours

What this fixture does

The Kuzco Dover EB83317-BK-UNV is an integrated-LED exterior bollard that provides down-directed illumination. Its 17-inch overall height and approximately 6-3/8" diameter suit small-format exterior bollard applications.

• Down-directed light from an integrated LED module
• Intended for exterior bollard lighting applications

Performance and photometrics

The fixture's integrated LED is specified at 2500 lumens nominal; the product listing also provides a delivered lumen value of 1063 lumens. Color temperature is 3000K with an 80 CRI. LED life is listed at 50,000 hours.

• Nominal lumen output: 2500 lm
• Delivered lumen output: 1063 lm
• Color temperature: 3000K, CRI: 80
• Rated life: 50,000 hours

Electrical requirements and dimming

This model accepts 120–277V (universal voltage) input. It supports TRIAC/ELV dimming to 10% when used with a compatible wall dimmer; a dimmer is not included with the fixture.

• Input voltage: 120–277V
• Dimming: TRIAC/ELV down to 10% when used with a compatible dimmer (dimmer sold separately)
• Power: 24W

Environment and common applications

The Kuzco Dover EB83317-BK-UNV is listed as wet-location rated and is described for exterior use. Typical uses cited in the product information include covered entry and porch lighting, exterior wall and facade accents, and patios or outdoor living spaces.

• Wet-location rated
• Commonly used for covered entries, exterior accents, and patio lighting

Size, materials and certification

The fixture measures 17 inches high with a diameter of 6-3/8 inches. It is constructed from aluminum with a black finish, is ETL certified, and is indicated as originating from China.

• Fixture dimensions: D 6-3/8" x H 17"
• Material: Aluminum; Finish: Black
• Certification: ETL; Country of origin: China

Before You Order

Verify the model number and quantity required. If you plan to use dimming, choose a TRIAC/ELV wall dimmer rated for the fixture's 24W load; the dimmer is not included.

• Verify model: EB83317-BK-UNV
• Select a compatible TRIAC/ELV dimmer rated for 24W if dimming is needed
