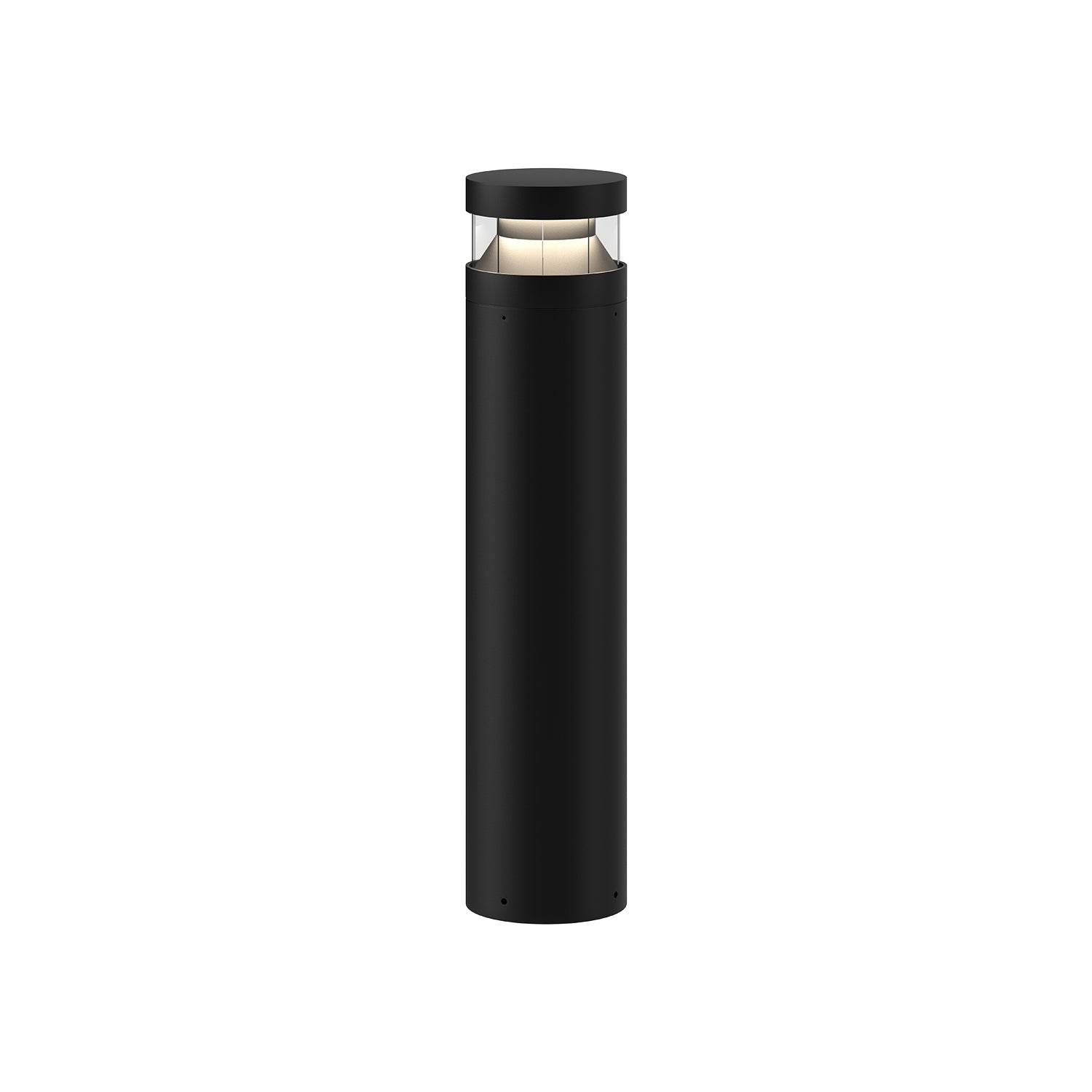

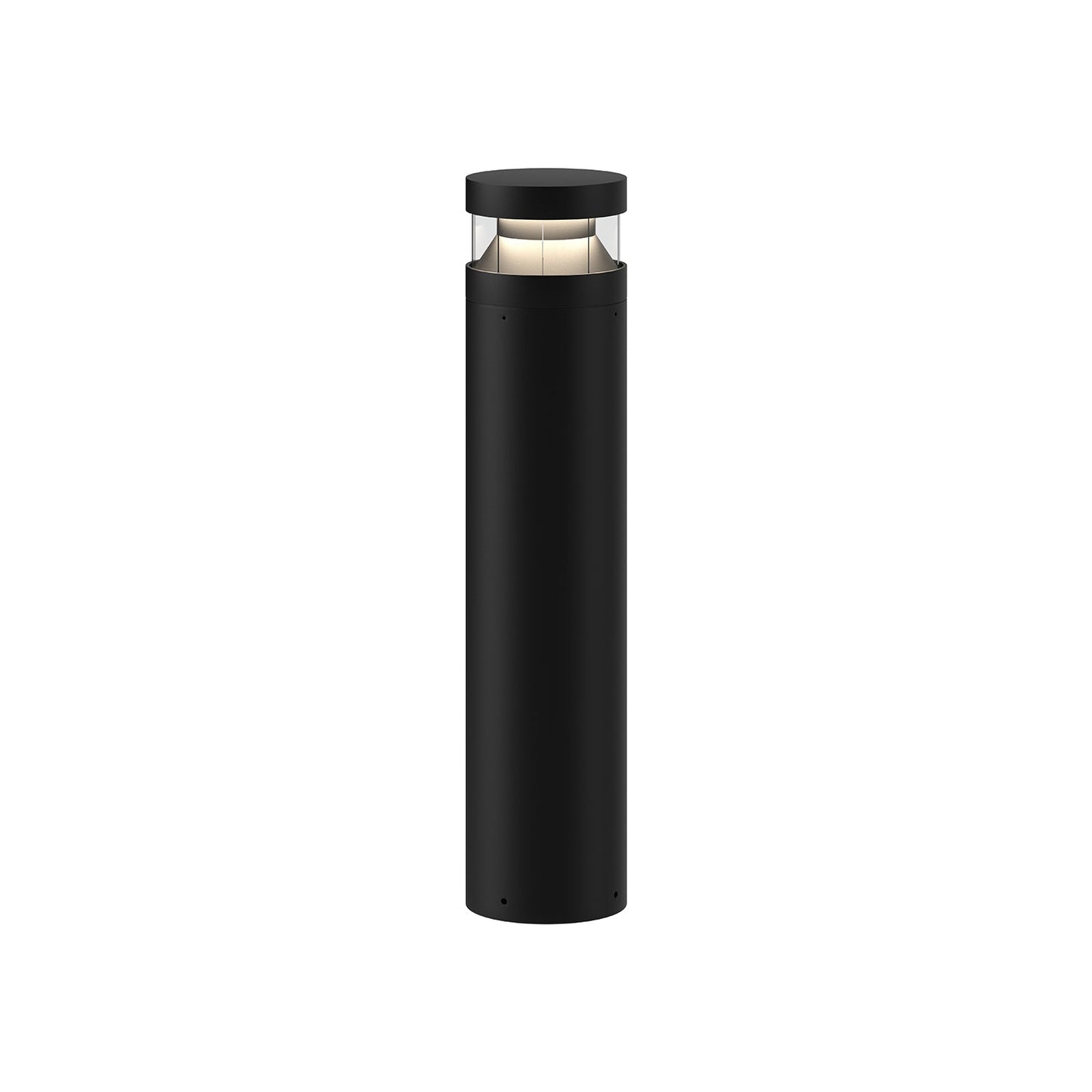

Kuzco Windermere LED Exterior Bollard Black [Universal Voltage] EB48528-BK-UNV
Description
Product Overview
The Kuzco Windermere EB48528-BK-UNV is a black LED exterior bollard with an integrated 24W LED source. It operates on 120–277V and produces 2500 total lumens at 3000K with a color rendering index of 80.
The fixture measures 6-3/8 inches in diameter by 28-3/8 inches high. Its die-cast aluminum body has a double powder-coated finish, and it has a clear polycarbonate diffuser.
Key Features
- Integrated 24W LED: 2500 total lumens and 1085 delivered lumens at 3000K.
- 120–277V input and wet-location rating.
- Dimmable from 100% to 10% with a TRIAC or ELV dimmer, not included.
- Die-cast aluminum construction, clear polycarbonate diffuser, and black finish.
LED Output and Color
The Windermere EB48528-BK-UNV has an integrated 24W LED source rated at 2500 total lumens and 1085 delivered lumens. Its 3000K color temperature and 80 CRI describe the light’s color and color-rendering characteristics.
- LED rated life: 50,000 hours.
- Illumination direction: down.
Voltage and Dimming
This bollard is rated for 120–277V input. It supports dimming from 100% to 10% with a TRIAC or ELV dimmer; the dimmer is not included.
Wet-Location Rating and Construction
The fixture is rated for wet locations. It has a die-cast aluminum body with a black powder-coated finish and a clear polycarbonate diffuser. The manufacturer describes the finish as double powder-coated for improved resistance to moisture, UV exposure, and corrosion.
- Certification: ETL.
Fixture Dimensions
The Kuzco Windermere bollard measures 6-3/8 inches in diameter by 28-3/8 inches high.
Before You Order
If dimming is needed, note that the TRIAC or ELV dimmer is not included.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Kuzco Windermere LED Exterior Bollard Black [Universal Voltage] EB48528-BK-UNV. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Kuzco |
|---|---|
| Series | Windermere |
| Model / SKU | EB48528-BK-UNV |
| Product Type | LED exterior bollard |
| Finish | Black |
| Dimensions | 6-3/8 in. diameter × 28-3/8 in. high |
| Light source | LED with DC driver |
| Wattage | 24W |
| Total Lumens | 2500 lm |
| Delivered Lumens | 1085 lm |
| Color Temperature | 3000K |
| CRI | 80 |
| Input Voltage | 120–277V |
| Dimming | 100%–10%; TRIAC or ELV dimmer, not included |
| Rated Life | 50,000 hours |
| Illumination Direction | Down |
| Housing Material | Die-cast aluminum |
| Shade / Diffuser | Clear polycarbonate |
| Location Rating | Wet |
| Certifications | ETL |
