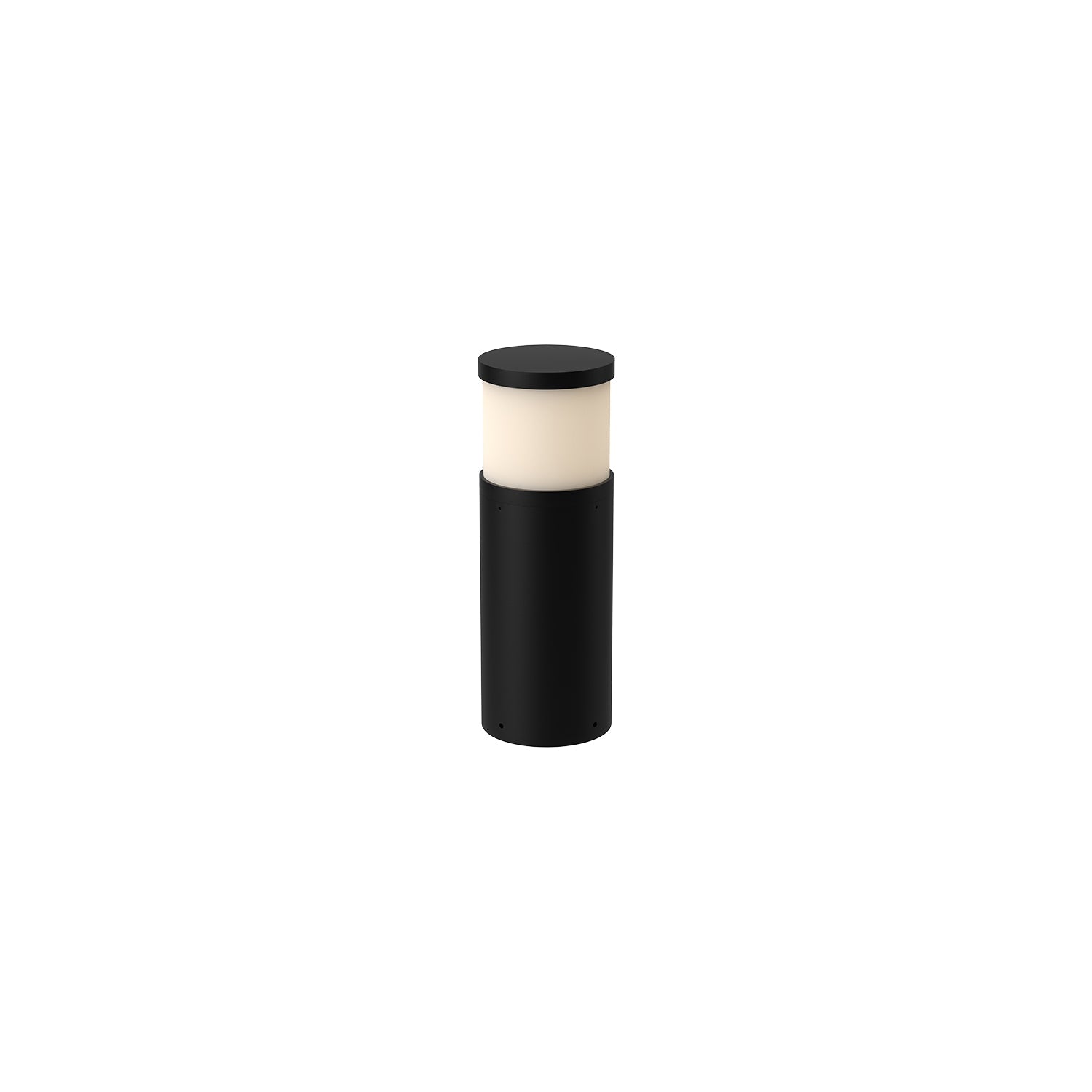

Kuzco Chadworth LED Exterior Bollard Black [Universal Voltage] EB46418-BK-UNV

Product Overview

The Kuzco Chadworth EB46418-BK-UNV is an 18-inch LED exterior bollard in black with a universal 120–277V driver. Integrated LEDs draw 24W and produce 2,500 total lumens (1,212 delivered) at 3000K with 80 CRI.

The fixture has a frosted polycarbonate diffuser, down-oriented illumination, TRIAC/ELV dimming to 10% (dimmer not included), a 50,000-hour LED rated life, and an ETL wet-location listing.

Key Features

• Integrated LED — 24W, 2,500 total lumens / 1,212 delivered lumens at 3000K, 80 CRI
• Universal input voltage 120–277V with DC driver
• Dimmable 100%–10% via compatible TRIAC or ELV wall dimmer (sold separately)
• Wet-location rated with frosted polycarbonate diffuser and powder-coated die-cast aluminum housing
• LED rated life 50,000 hours; ETL certified

What this fixture does

The Chadworth EB46418-BK-UNV is an architecturally styled exterior bollard that provides down-oriented, diffused illumination for walkways, entries, patios, and exterior living areas. Its integrated LED module eliminates the need for separate lamp sourcing.

• Designed for exterior pathway and accent lighting with diffuse output from a frosted PC diffuser
• Provides surrounding area illumination with a downward emphasis

Light output and color

This model produces 2,500 total lumens from the LED module and is rated to deliver 1,212 lumens. The factory-specified color temperature is 3000K with an 80 CRI.

• Total lumens: 2,500 lm
• Delivered lumens: 1,212 lm
• Color temperature: 3000K
• Color rendering: 80 CRI
• LED rated life: 50,000 hours

Voltage and dimming

The bollard includes a 120–277V driver and supports TRIAC or ELV wall dimmers for 100%–10% dimming. A compatible dimmer must be rated for the fixture load and is not included.

• Input voltage: 120–277V
• Dimming: TRIAC/ELV, 100%–10% (dimmer sold separately)
• Light source: LED with DC driver

Size, construction and finish

The fixture is a die-cast, powder-coated aluminum cylinder with a frosted polycarbonate diffuser. Its nominal height is 18 inches, with compact footprint suitable for pathway and patio installations.

• Fixture dimensions: D 6-3/8" x H 18-1/8"
• Primary dimension: 18 in
• Material: Die-cast aluminum
• Diffuser: Frosted polycarbonate (PC)
• Finish: Black (BK)

Ratings and certifications

The Chadworth EB46418-BK-UNV is ETL listed for wet locations. Consult the manufacturer for full warranty and corrosion-resistance finish details.

• Location rating: Wet
• Certification: ETL
• Country of origin: China

Before You Order

Confirm the model number and quantity before ordering; this SKU is EB46418-BK-UNV with integrated LED and a 120–277V driver.

• Dimmers are not included — pair with a TRIAC or ELV dimmer rated for the fixture load.
• Optional color temperatures (2700K–5000K) are offered by the manufacturer with minimum order quantities; contact the factory for custom options.
