Kuzco Napa LED Exterior Bollard Black [Universal Voltage] EB42924-BK-UNV

Product Overview

The Kuzco Napa EB42924-BK-UNV is an integrated LED exterior bollard in a black finish with universal 120–277V input and an IP65 wet-location rating. It uses an aluminum housing with glass elements and directs illumination downward.

Refer to the specifications below for manufacturer-rated wattage, lumen output, color temperature options, dimming capability, and certifications.

Key Features

• Integrated LED source with manufacturer-rated wattage and lumen output
• Available in black finish; aluminum housing with glass
• Input voltage: 120–277V (universal)
• Wet-location rated: IP65
• Dimming: 100%–10% with compatible TRIAC or ELV wall dimmer (dimmer not included)
• ETL listed and Title 24 JA8 compliant (per manufacturer documentation)
• LED rated life: 50,000 hours (manufacturer rating)

Purpose and lighting behavior

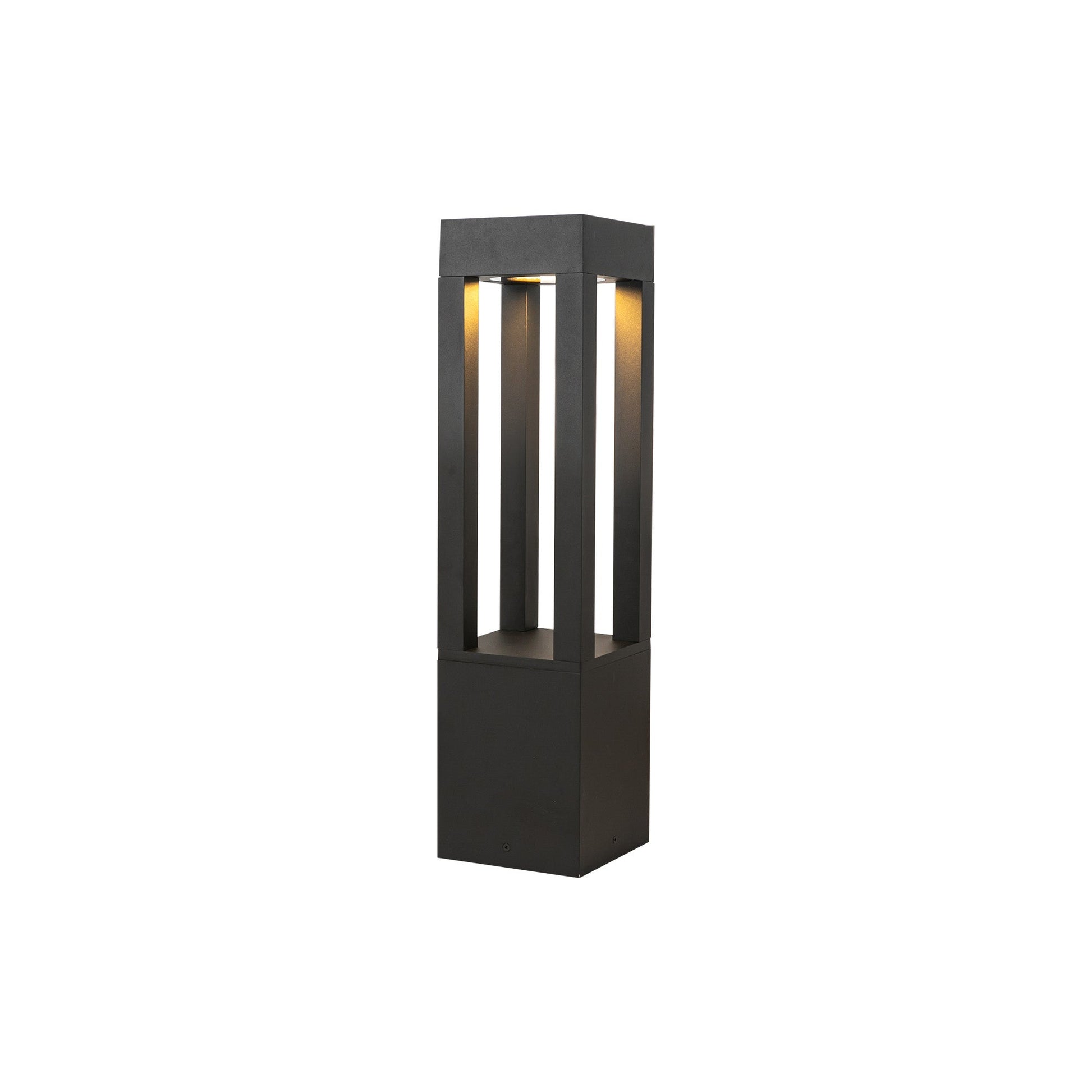

The Napa EB42924 bollard is an architectural exterior fixture that radiates light downward through rectangular openings in the square housing, providing pathway and area illumination while minimizing uplight.

• Designed for exterior pathway, entry, and landscape illumination
• Downward-directed light to reduce glare and uplight

Manufacturer-rated light output and options

Manufacturer documentation lists this family with multiple light-source options. For the EB42924-BK-UNV SKU, the manufacturer specification in the validated document shows a 12W LED option with 540 total lumens (delivered 459 lm) at an amber 2200K option. The product listing data includes a 24W / 2520 lm @ 3000K / 90 CRI configuration; confirm which configuration matches the SKU you are ordering.

• Manufacturer-validated spec (EB42924-BK-AMB-UNV example): 12W, 540 total lumens, delivered 459 lm, Amber 2200K
• Product listing may reference a 24W / 2520 lm, 3000K / 90 CRI variant—verify SKU and specification before purchase
• LED rated life (manufacturer): 50,000 hours

Voltage and dimming

The fixture accepts universal 120–277V input per manufacturer documentation. Dimming is supported with TRIAC or ELV wall dimmers down to 10% when the dimmer is compatible with the fixture's driver and load; dimmer is not included.

• Input voltage: 120–277V (universal)
• Dimming: TRIAC or ELV, 100%–10% (dimmer not included)
• Confirm dimmer compatibility with the specific wattage/load of the SKU you select

Materials, finish, and environment rating

The bollard is constructed from die-cast aluminum with clear high-impact glass and a double powder-coated finish for corrosion resistance. It is rated for wet locations with an IP65 designation and is ETL listed per manufacturer documentation.

• Material: aluminum + clear high-impact glass
• Finish: black (double powder-coated per manufacturer note)
• Location rating: Wet, IP65
• Certification: ETL listed

Dimensions and physical details

Use the listed fixture dimensions for siting and mounting considerations. The bollard is available in two heights per the manufacturer series; confirm the height for the SKU you are ordering.

• Fixture dimensions (manufacturer): L 6-3/8" x W 6-3/8" x H 23-7/8"
• Primary dimension / height shown on listing: 24 in

Before You Order

Confirm the exact SKU and published specification (wattage, lumens, color temperature) for the units you intend to purchase.

• Dimming hardware is not included—select a TRIAC/ELV dimmer compatible with the SKU's driver and load.
• Verify mounting location and clearances using the fixture dimensions provided.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Napa LED Exterior Bollard Black [Universal Voltage] EB42924-BK-UNV. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
