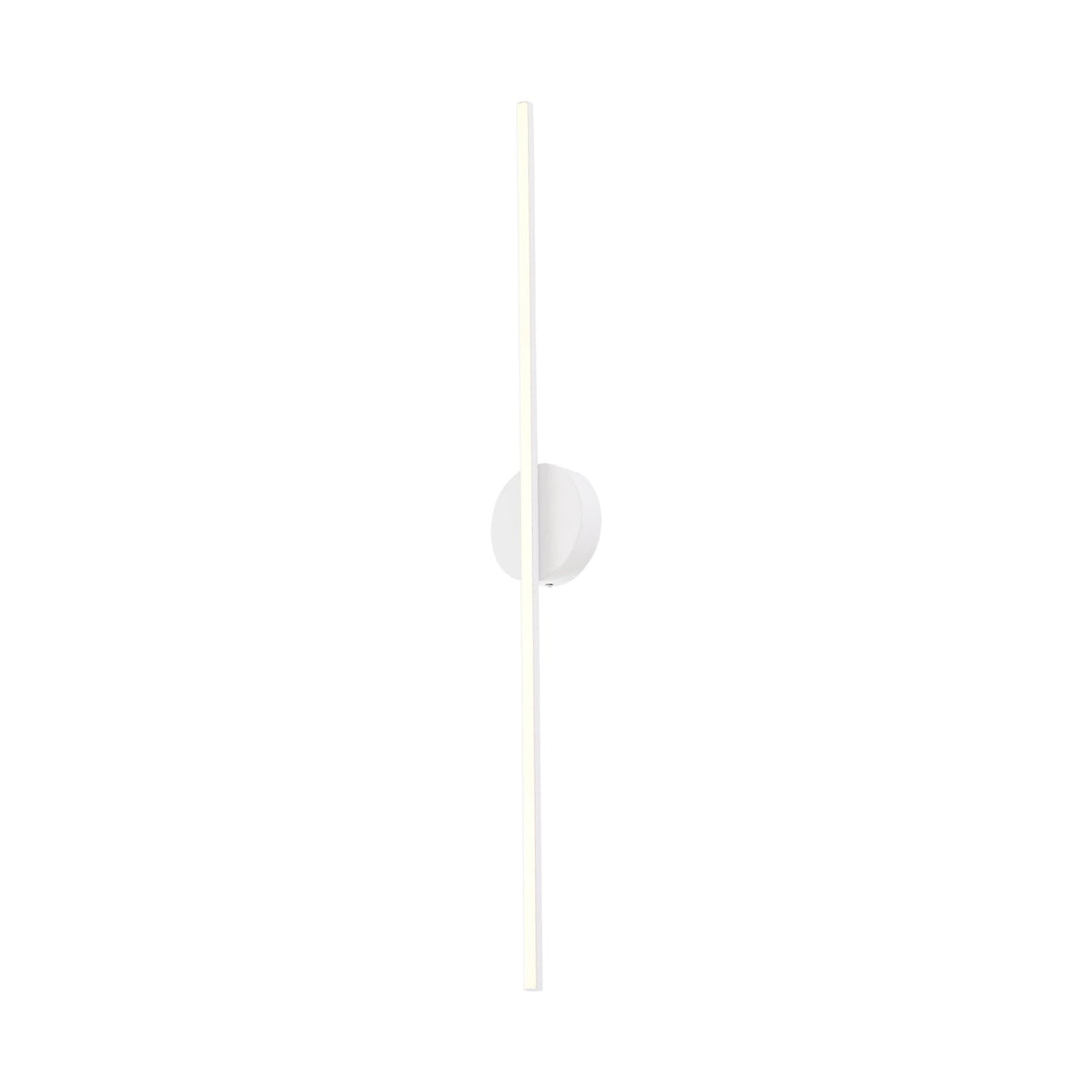

Kuzco Chute LED Wall Sconce WS14947

Product Overview

The Kuzco Chute WS14947 is a 47" integrated LED wall sconce available in white or black finishes and in universal (120–277V) or standard voltage configurations. The integrated LED is rated at 21W with a nominal output of 1700 lumens (975 delivered) at 3000K and 90 CRI.

The fixture is damp-location rated and has an ADA-compliant projection. TRIAC/ELV dimming is supported when used with a compatible wall dimmer (dimmer sold separately).

Key Features

• Integrated 21W LED — 1700 lm nominal / 975 lm delivered
• 3000K color temperature with 90 CRI
• Available in universal input (120–277V) and standard voltage configurations
• TRIAC/ELV dimmable to 10% with a compatible dimmer (not included)
• Damp-location rated and ADA-compliant projection
• Aluminum and polymeric construction with white acrylic diffuser
• ETL listed and Title 24 JA8-2022 listed

What this fixture does

The Kuzco Chute WS14947 is a 47-inch integrated LED wall sconce designed to provide front-facing illumination for vanities, mirror flanking, hallways, and accent lighting. It ships as an integrated LED fixture, so no separate lamps are required.

• Integrated LED eliminates separate bulb sourcing and relamping.
• Frontlight illumination provides even light distribution across nearby surfaces.

Light output and color quality

This model is specified with a 21W integrated LED module producing a nominal 1700 lumens and 975 delivered lumens at 3000K color temperature with a 90 CRI.

• Nominal lumen output: 1700 lm
• Delivered lumens: 975 lm
• Power: 21W
• Color temperature: 3000K
• CRI: 90

Electrical and dimming

The WS14947 is offered in universal input (120–277V) and standard voltage variants. The fixture supports TRIAC/ELV dimming to approximately 10% when paired with a compatible wall dimmer; a dimmer is not included.

• Input voltage: 120–277V (universal) or standard voltage SKUs
• Dimming: TRIAC/ELV to 10% with compatible dimmer (not included)
• Nominal power draw: 21W

Dimensions, mounting and materials

Use the dimensions and mounting details to confirm placement and clearance. The fixture's projection meets ADA compliance requirements indicated for the product.

• Primary dimension: 47 in
• Fixture dimensions: W 47" x H 4-3/4" x E 1-7/8"
• Canopy dimensions: D 4-3/4" x E 1-1/4"
• Mounting: wall mount, all orientation
• Materials: aluminum and polymeric components with white acrylic diffuser

Environment suitability and certifications

The fixture is rated for damp locations for use in humid indoor spaces. It is ETL listed and meets the Title 24 JA8-2022 listing cited for this model.

• Damp-location rated
• ADA-compliant projection
• ETL listed
• Title 24 JA8-2022 listed

Before You Order

Confirm the exact SKU and voltage configuration before ordering.

• Available SKUs: WS14947-WH-UNV (White, universal), WS14947-WH (White, standard voltage), WS14947-BK-UNV (Black, universal), WS14947-BK (Black, standard voltage).
• If dimming is required, choose a TRIAC/ELV wall dimmer rated for the fixture's 21W load (dimmer sold separately).
