Kuzco Piazza LED Chandelier CH88332

Product Overview

The Kuzco Piazza CH88332-WH is a 32-inch integrated LED chandelier finished in white, intended for dry interior residential spaces.

The integrated LED engine draws 149W, produces 11,120 lumens (6,208 delivered), is ETL listed, Title 24 JA8-2022 compliant, and includes 120" of field-adjustable wire for suspension.

Key Features

• Integrated LED — 149W input; 11,120 lm total output; 6,208 lm delivered
• 3000K color temperature with 90 CRI
• Dimming: TRIAC/ELV to 10% or 0–10V where provided; dimmers sold separately
• 120" field-adjustable wire; sloped-ceiling adaptable; minimum hang height 22"
• Frosted silicone diffuser; aluminum and polymeric construction
• ETL listed and Title 24 JA8-2022 compliant; rated for dry locations

What this fixture does

The Kuzco Piazza CH88332-WH is an integrated LED chandelier designed as a focal lighting piece for dry interior residential spaces such as dining rooms, entryways, stairwells, and living rooms.

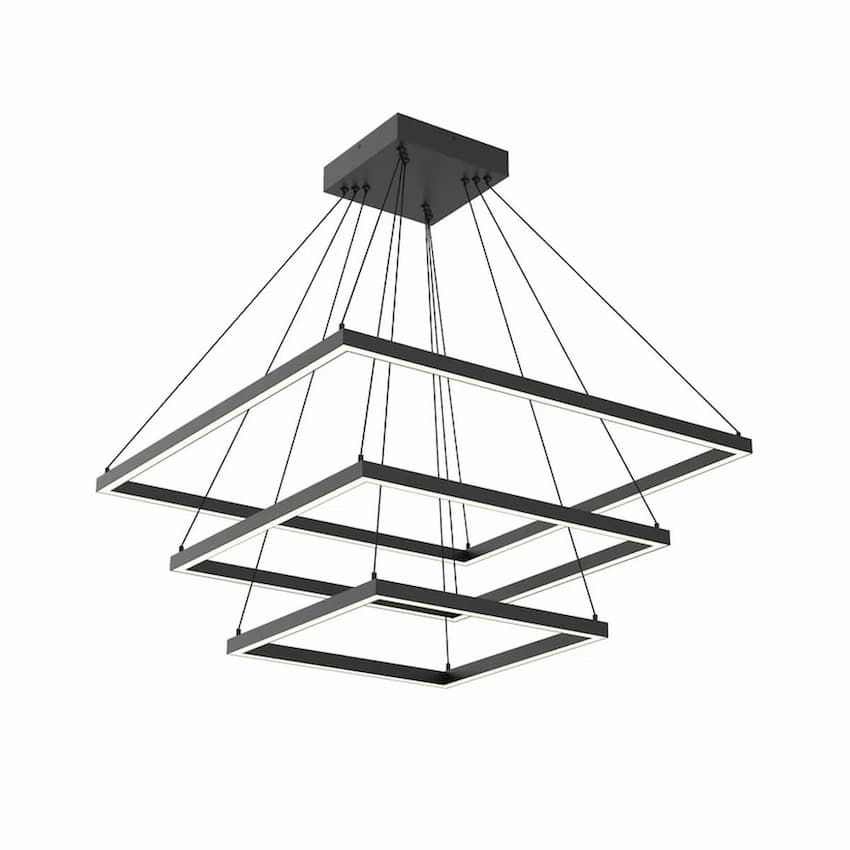

Its three-layer 32-inch design provides down-directed illumination through a frosted silicone diffuser and does not require external lamps.

• Intended for statement and general lighting in dry interior rooms
• Down-directed illumination through a frosted diffuser for soft, even light

Light output and color quality

The integrated LED engine produces 11,120 total lumens and delivers 6,208 lumens into the space. Color temperature is 3000K with a 90 CRI rating.

LED life is listed as 50,000 hours.

• Total lumens: 11,120 lm
• Delivered lumens: 6,208 lm
• Color temperature: 3000K
• CRI: 90
• Rated LED life: 50,000 hours

Electrical and dimming

The fixture is specified with 120–277V input and a 149W LED input. It supports TRIAC/ELV dimming to 10% and 0–10V dimming options where provided; dimmers and controls are not included.

When using a line-voltage TRIAC/ELV dimmer, ensure the selected dimmer can handle the fixture's rated wattage.

• Input voltage: 120–277V
• Wattage: 149W
• Dimming: TRIAC/ELV (to 10%) or 0–10V — dimmers not included
• Dimming range: 100–10%

Mounting and ceiling adaptation

The Piazza includes 120" of field-adjustable wire for suspension and adapts to sloped ceilings so the chandelier can hang level in vaulted rooms or stairwells. The listed minimum hang height is 22".

Confirm ceiling height and clearance requirements before installation.

• Wire length: 120" (field adjustable)
• Minimum hang height: 22"
• Sloped-ceiling adaptable: Yes

Dimensions, materials, and ratings

Fixture footprint is 31-1/2" x 31-1/2" with a body height of 1-3/8"; canopy measures 9-1/2" square x 2" high. Construction combines aluminum and polymeric materials with a frosted silicone diffuser.

The fixture is ETL listed, Title 24 JA8-2022 compliant, rated for dry locations, and is shown as manufactured in China.

• Fixture dimensions: L31-1/2" x W31-1/2" x H1-3/8"
• Canopy dimensions: L9-1/2" x W9-1/2" x H2"
• Material: Aluminum + polymeric material; frosted silicone diffuser
• Environment rating: Dry locations
• Certifications: ETL; Title 24 JA8-2022 compliant
• Country of origin: China
• Finish: White

Before You Order

Confirm the CH88332-WH finish (White), the 22" minimum hang height, and that the 120" adjustable wire meets your mounting needs. Dimmers and wall controls are not included.

• Confirm finish: White (CH88332-WH)
• Verify ceiling height and clearance relative to the 22" minimum hang height
• If dimming, choose a compatible dimmer rated for the fixture's wattage (dimmers sold separately)

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Piazza LED Chandelier CH88332. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
