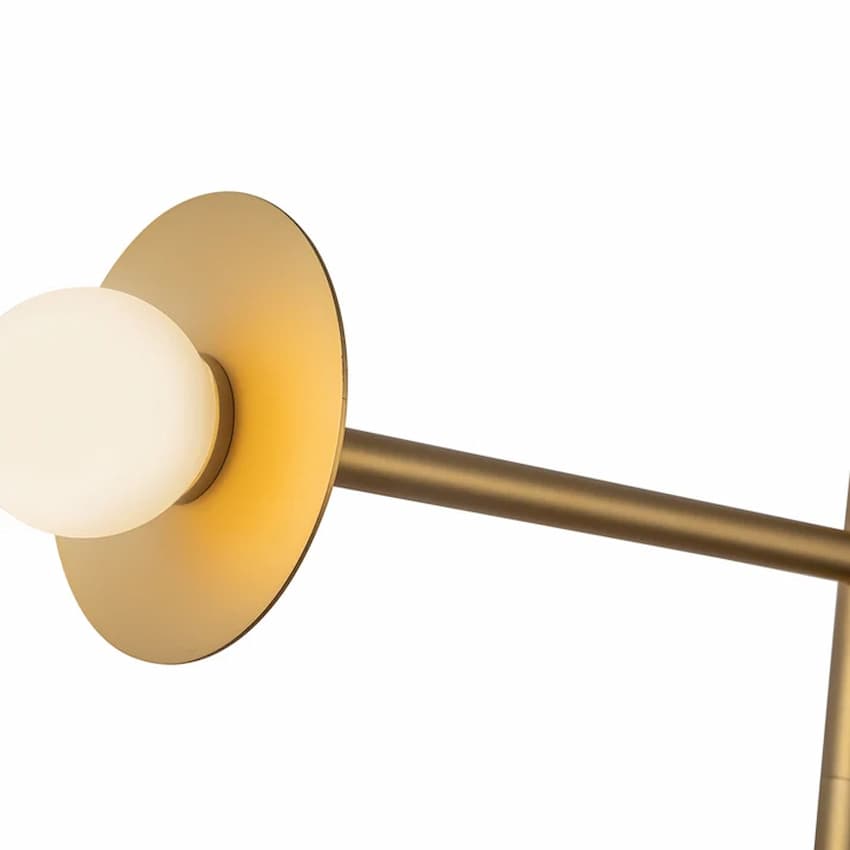

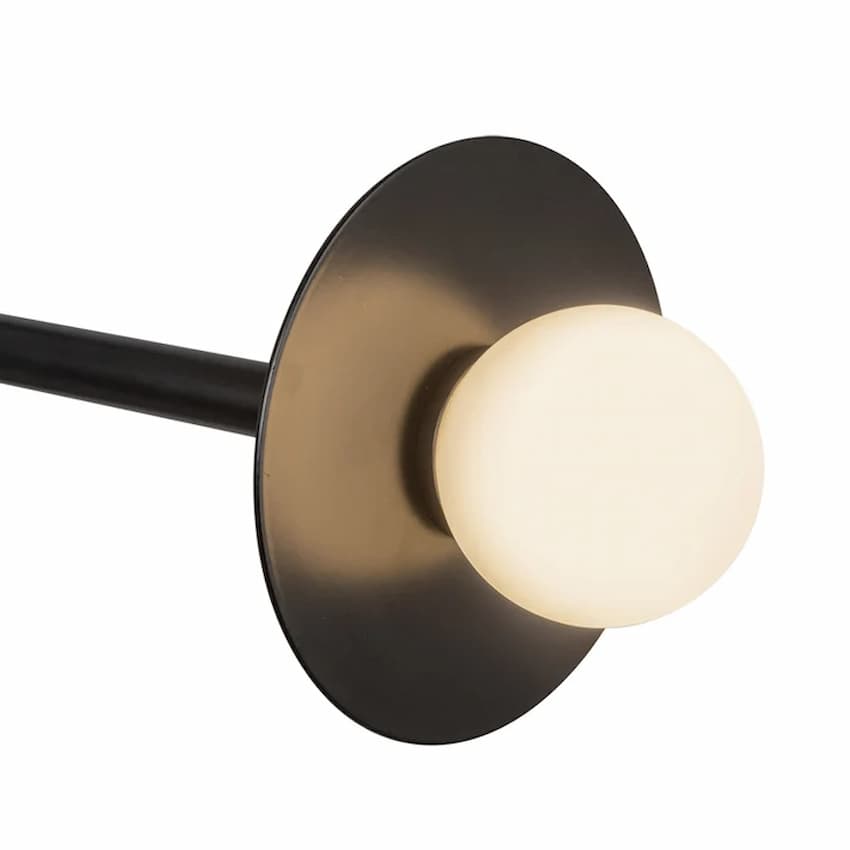

Kuzco Elixir LED Chandelier CH15504
Description
Product Overview
The Kuzco Elixir CH15504 is an LED chandelier available in Chrome [Universal Voltage], Black [Universal Voltage] and Brushed Gold [Universal Voltage].
The technical specifications below apply to the Chrome [Universal Voltage] option, SKU CH15504-CH-UNV.
Key Features
- Chrome SKU CH15504-CH-UNV: integrated 13W LED, 3000K, 90 CRI and 780 delivered lumens.
- TRIAC/ELV dimming from 100% to 10%; dimmer is optional and not included.
- Dry-location rated and adaptable to sloped ceilings up to 45 degrees.
CH15504 finish options
The CH15504 is available in Chrome [Universal Voltage], Black [Universal Voltage] and Brushed Gold [Universal Voltage]. The technical details on this page apply to the chrome SKU, CH15504-CH-UNV.
- Chrome [Universal Voltage] — CH15504-CH-UNV
- Black [Universal Voltage] — CH15504-BK-UNV
- Brushed Gold [Universal Voltage] — CH15504-BG-UNV
LED output and dimming
The chrome SKU's integrated LED uses 13W and is rated at 1055 total lumens and 780 delivered lumens. It has a 3000K color temperature and a CRI of 90.
This SKU supports TRIAC/ELV dimming from 100% to 10%. The dimmer is optional and not included.
Dimensions and mounting
The chrome fixture measures 23-1/4 inches long by 22-1/8 inches wide by 9-1/8 inches high. Its minimum hang height is 18 inches, and its wire length is 72 inches.
The fixture is adaptable to sloped ceilings up to 45 degrees. The canopy measures 5-1/8 inches in diameter by 1-1/2 inches high.
Location rating and applications
The chrome SKU is rated for dry locations. Documented applications include dining rooms, kitchen islands, foyers, entryways, stairwells, living rooms and primary bedrooms. Its Title 24 designation is JA8-2022, and its certification is ETL.
Before You Order
Choose a finish; the technical specifications shown here apply to the chrome SKU, CH15504-CH-UNV.
- A TRIAC/ELV dimmer is optional and not included.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for Kuzco Elixir LED Chandelier CH15504. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | Kuzco |
|---|---|
| Series | Elixir |
| Product Type | LED chandelier |
| Available Finishes | Chrome [Universal Voltage], Black [Universal Voltage], Brushed Gold [Universal Voltage] |
| Technical specifications apply to | CH15504-CH-UNV (Chrome [Universal Voltage]) |
| Dimensions | 23-1/4 in L x 22-1/8 in W x 9-1/8 in H |
| Canopy Dimensions | 5-1/8 in diameter x 1-1/2 in H |
| Light source | Integrated LED |
| Wattage | 13W |
| Total Lumens | 1055 lm |
| Delivered Lumens | 780 lm |
| Color Temperature | 3000K |
| CRI | 90 |
| Input Voltage | 120–277V |
| Dimming | TRIAC/ELV, 100%–10%; dimmer optional and not included |
| Rated Life | 50,000 hours |
| Material | Steel + glass |
| Shade / Diffuser | Steel |
| Illumination Direction | Omni-directional |
| Location Rating | Dry location |
| Minimum Hang Height | 18 in |
| Cable Length | 72 in |
| Sloped ceiling | Adaptable up to 45 degrees |
| Title 24 JA8 | JA8-2022 |
| Certifications | ETL |
