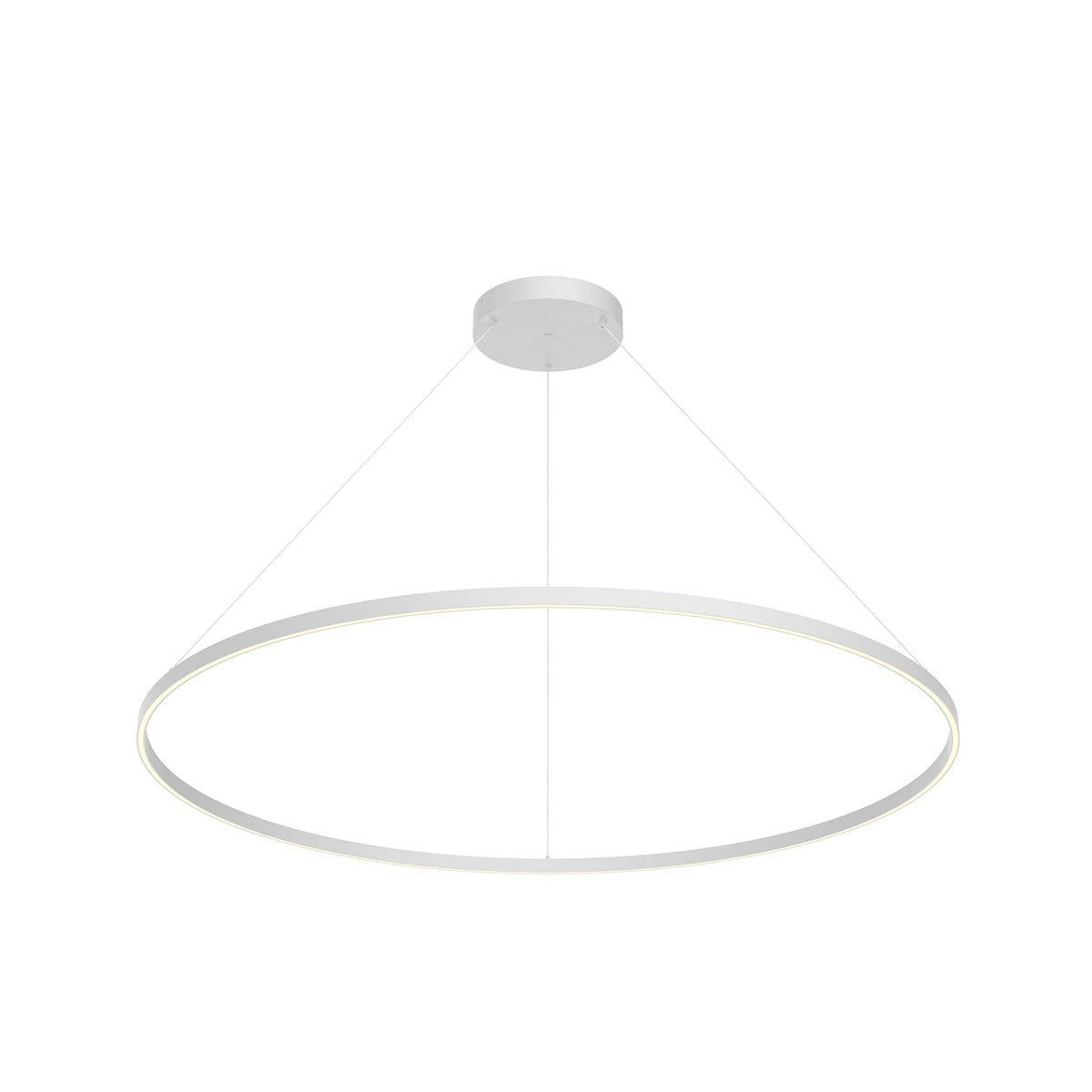

Kuzco Cerchio LED Pendant PD87160

Product Overview

The Kuzco Cerchio PD87160 is a 60-inch integrated LED pendant available in multiple configurations; this listing describes the PD87160-WH-UNV-010 (White finish, universal 120–277V input, 0–10V dimming).

The fixture is 3000K with 90 CRI, uses a 126W integrated LED (9250 total lumens, 3032 delivered lumens), is rated for dry interior locations, and is listed as Title 24 JA8-2022 compliant.

Key Features

• Integrated LED: 126W, 9250 total lumens; 3032 delivered lumens
• Light quality: 3000K color temperature, 90 CRI
• Electrical: 120–277V (universal) input on UNV variants; compatible with 0–10V dimming and TRIAC/ELV dimming methods
• Mounting: field-adjustable 120" wire; sloped-ceiling adaptable; minimum hang height 30"
• Ratings: Dry-location rating, ETL certification, Title 24 JA8-2022 compliance

What this pendant does

The Kuzco Cerchio PD87160 series is an integrated LED pendant that provides downward illumination. The 60" primary dimension presents as a broad, low-profile ring intended for residential interior applications.

• Downward illumination
• Integrated LED—no separate bulbs required
• Typical placements: kitchen island, entry/hallway, dining or bedside accent

Light output and color

This SKU is specified at 3000K with 90 CRI. The integrated LED is specified as 9250 total lumens with 3032 delivered lumens and a listed LED life of 50,000 hours.

• Total lumens: 9250 lm
• Delivered lumens: 3032 lm
• Color temperature: 3000K
• Color rendering index: 90 CRI
• Rated LED life: 50,000 hours

Electrical and dimming options

Variants labeled UNV accept universal 120–277V input. The product listing indicates compatibility with 0–10V dimming and TRIAC/ELV dimming methods; dimmers are not included and must be chosen to match the selected dimming type and the fixture load.

• Input voltage (UNV variant): 120–277V
• Dimming: 0–10V compatible; TRIAC/ELV dimming supported to 10% when using a compatible wall dimmer
• Dimming range: 100%–10% as listed
• Dimmers are sold separately—select one rated for the fixture's 126W load

Mounting, dimensions, and physical fit

The fixture ships with field-adjustable wire up to 120" and a canopy sized to cover standard junction boxes. The design adapts to sloped ceilings so the pendant can hang level in vaulted spaces.

• Primary dimension: 60 in
• Fixture dimensions: D59" x H1-3/8"
• Canopy dimensions: D13" x H2"
• Wire length: 120" field-adjustable
• Minimum hang height: 30"
• Sloped-ceiling adaptable

Ratings and certifications

This SKU is listed for dry interior locations and carries ETL certification. It is indicated as Title 24 JA8-2022 compliant for high-efficacy residential lighting.

• Location rating: Dry interior locations
• Certification: ETL
• Title 24: JA8-2022 compliant
• Materials: Aluminum with polymeric components; frosted silicone diffuser
• Country of origin: China

Before You Order

Confirm the exact model variant and required quantity before ordering. Verify the 30" minimum hang height and that the fixture's dry-location rating is appropriate for your installation. Select a compatible dimmer (sold separately) rated for the fixture's 126W load if dimming will be used.

• Model example: PD87160-WH-UNV-010 (White finish, universal voltage, 0–10V dimming)
• Canopy dimensions: D13" x H2" — confirm junction-box and canopy fit
• Field-adjustable wire: 120" maximum; verify required hang length
