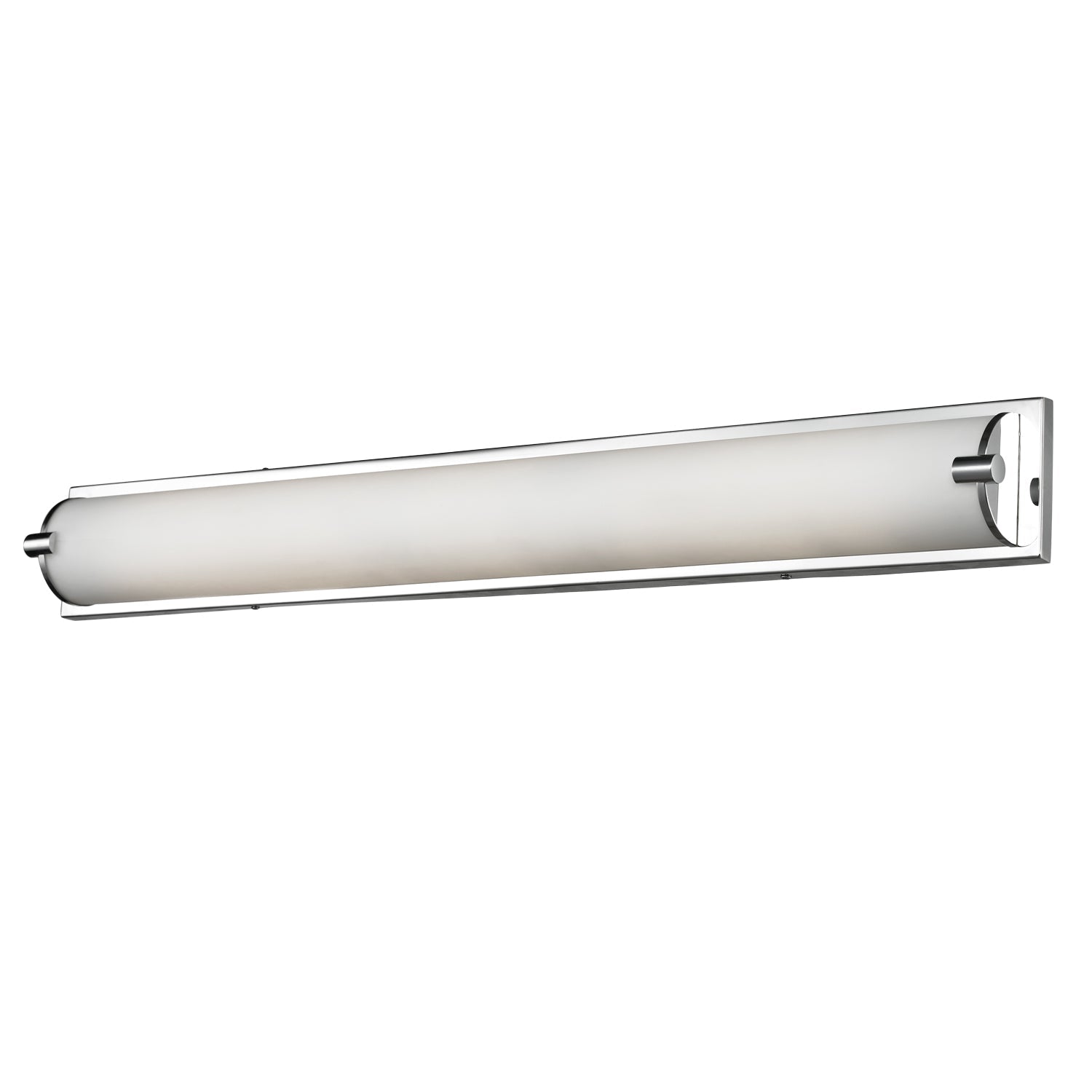

Kuzco Charlotte LED Vanity Light Chrome 601465CH-LED

Product Overview

The Kuzco Charlotte 601465CH-LED is a 36-inch integrated LED vanity light in a chrome finish. It is specified at 3000K color temperature with 90 CRI, uses 41W of input power and is listed at 3200 total lumens with 1986 delivered lumens.

The fixture is ETL listed, has a damp-location rating, is ADA-compliant in projection, supports ELV dimming (dimmer sold separately), and is identified as Title 24 JA8-2022 compliant.

Key Features

• Integrated LED — 41W input producing 3200 total lumens (3000K, 90 CRI)
• Delivered lumens: 1986 lm; LED life span: 50,000 hours
• Dimmable with compatible ELV dimmer (100–10%; dimmer not included)
• ADA-compliant projection; wall mount, all orientation
• Damp-location rated and ETL listed; Title 24 JA8-2022 compliant
• Aluminum and glass construction with chrome finish; 36-inch primary dimension

Function and intended use

The Kuzco Charlotte 601465CH-LED is an integrated LED vanity light designed for indoor use where a damp-location rated fixture is suitable, such as bathrooms and powder rooms. The product data lists common applications including vanity lighting and mirror-flanking installations.

• Common uses: vanity lighting, sconce pairs beside mirrors, hallway accent light (as listed in product data)
• Mounting style: wall mount, all orientation

Light output and performance

The fixture is specified to draw 41W and produce 3200 total lumens at 3000K with a 90 CRI. The product data also lists delivered lumen output as 1986 lm. LED life span is listed as 50,000 hours.

• Color temperature: 3000K
• Color rendering index: 90 CRI
• Total lumens: 3200 lm; Delivered lumens: 1986 lm
• Rated LED life: 50,000 hours

Dimming and controls

The fixture supports electronic low-voltage (ELV) dimming to 10% when used with a compatible ELV wall dimmer. A compatible dimmer is not included and must be purchased separately.

• Dimming range: 100%–10%
• Select an ELV dimmer rated for the fixture's 41W load

Mounting, dimensions, and materials

The Charlotte is a 36-inch wide wall-mounted luminaire with a low-profile depth and an ADA-compliant projection as indicated in the product data. Construction materials are listed as aluminum and glass with a chrome finish.

• Fixture dimensions: W 36" x H 4-3/8" x E 2-3/4"
• Primary dimension: 36 in
• Material: aluminum + glass; finish: chrome
• Mounting: wall mount, all orientation; illumination direction: omni-directional

Certifications and environmental rating

Per the product data, the fixture is ETL listed, damp-location rated, ADA-compliant in projection, and identified as Title 24 JA8-2022 compliant for high-efficacy residential lighting.

• ETL listed
• Damp-location rated
• ADA compliant
• Title 24 JA8-2022

Before You Order

Verify fixture dimensions and the model number before ordering. An ELV wall dimmer rated for the 41W load is required if you plan to use the fixture's dimming capability; the dimmer is sold separately.

• Ensure W36" x H4-3/8" x E2-3/4" fits the intended mounting location

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Kuzco Charlotte LED Vanity Light Chrome 601465CH-LED. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
