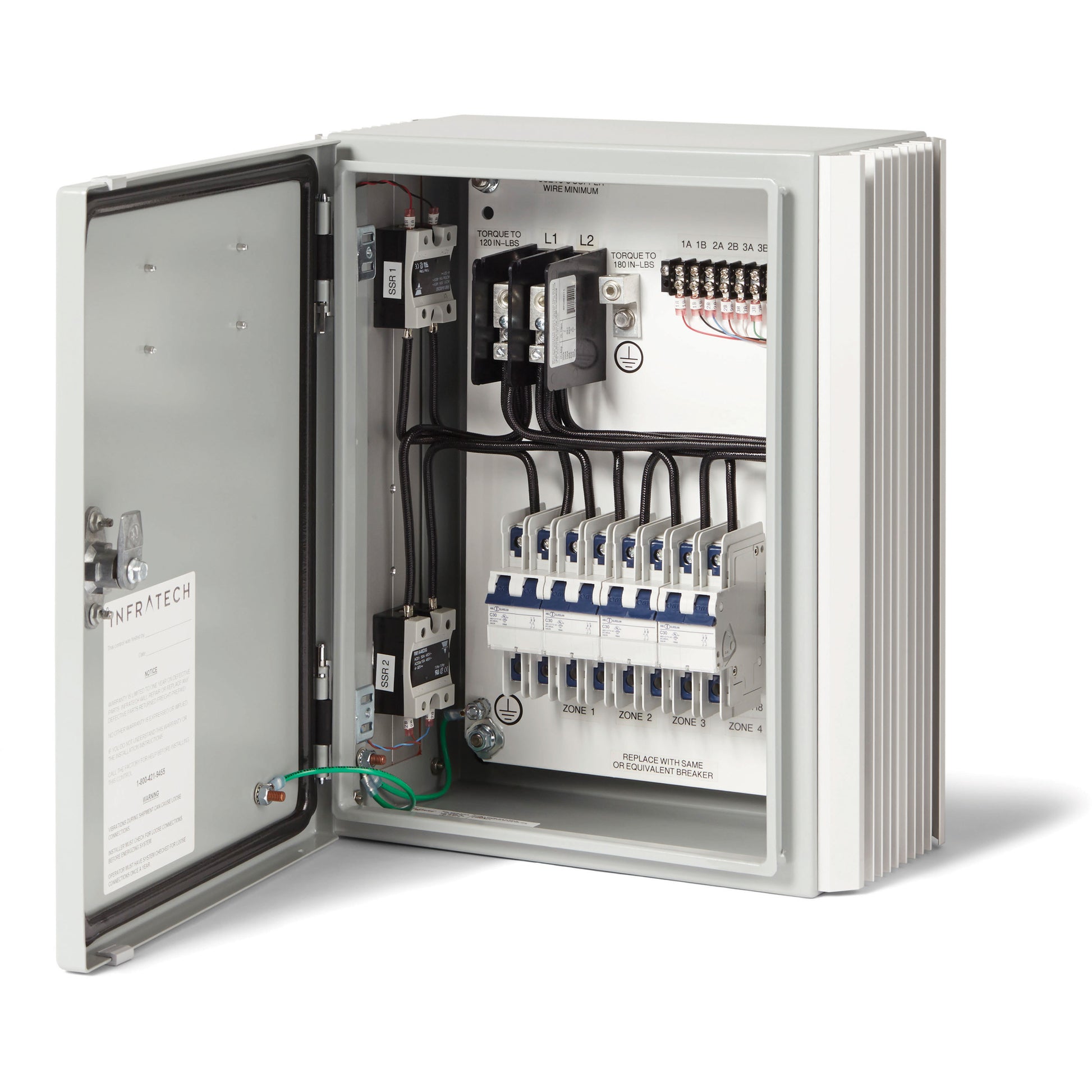

Infratech 30-4073 3-Relay Universal Control Panel

The Infratech 30-4073 universal control panel switches up to three Infratech heater zones with 0 to 100% dimming using any standard 120 V wall dimmer. The panel is a UL 508 listed assembly, built to the specific heater voltage, phase, and configuration of each project.

• Three relays create three independently controlled heater zones
• Works with any 120 V lighting dimmer, so intensity is set per zone from 0 to 100%
• UL 508 listed assembly tested above National Electrical Code requirements before leaving the factory
• Custom-built and shipped with a project-specific wiring diagram
• Housed in a 20 by 16 by 7 in gray steel enclosure

Common applications include:

• Multi-zone residential patio heating with independent intensity per area
• Commercial and hospitality spaces requiring up to three heater zones
• Installations that control Infratech heaters with standard 120 V wall dimmers

Because each panel is built to order, specify heater model, voltage, phase, and configuration when ordering. Provide one 120 V dimmer per zone; the supplied wiring diagram defines the field connections.

Lumera Electric configures the Infratech 30-4073 three-relay universal panel for projects controlling multiple heater zones with standard wall dimmers.
