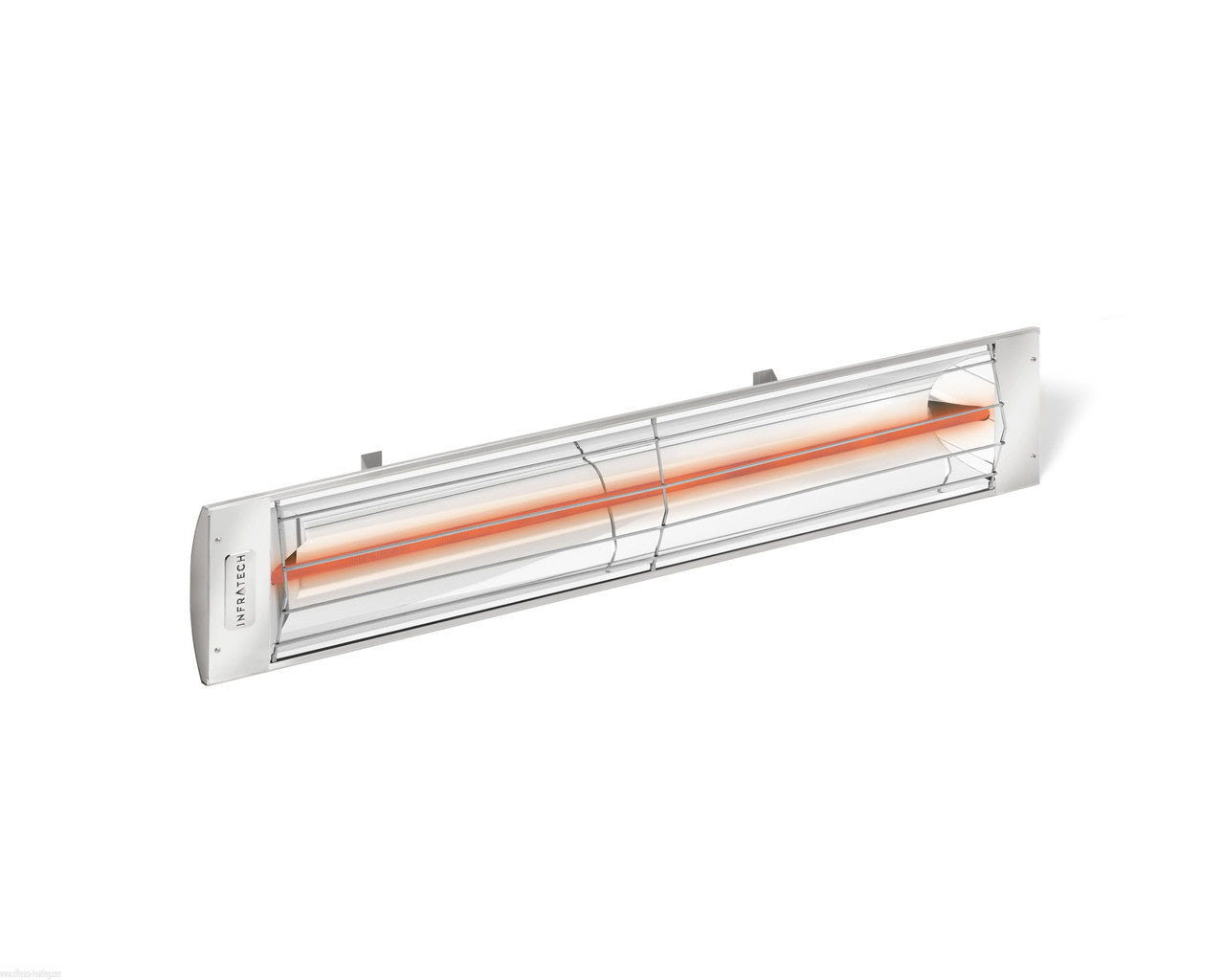

Infratech 21-3220 C-3028 SS C-Series Heater

Product Overview

The Infratech 21-3220 (C-3028 SS) is a 3000 W electric infrared C-Series heater with a stainless steel finish for weather-exposed installations.

This model is rated for 208 V operation, draws 14 A, and measures 61-1/4" in length; it provides radiant (infrared) heat without on-site combustion.

Key Features

• 3000 W infrared output at 208 V
• Stainless steel finish intended for weather-exposed installs
• Electric infrared operation — no on-site combustion
• Length: 61-1/4"; Weight: 20 lbs
• Requires a 208 V circuit and compatible control or relay panel

What this heater does

The Infratech 21-3220 (C-3028 SS) uses electric infrared elements to deliver radiant comfort heat to people and surfaces without on-site combustion.

• Radiant infrared heating for outdoor and covered areas
• Heats people and nearby surfaces directly rather than primarily heating ambient air

Electrical requirements

This model is specified at 3000 W on a 208 V supply and is listed with a 14 A current value. Confirm a dedicated 208 V circuit and ensure overcurrent protection and branch-circuit capacity meet local electrical codes.

• Wattage: 3000 W
• Voltage: 208 V
• Current: 14 A
• Intended to be used with a compatible control or relay panel for switching and zoning

Typical applications

Common uses for this heater include comfort heating in restaurant patios, residential covered patios and pergolas, and commercial or hospitality outdoor seating areas where a stainless steel finish is preferred.

• Restaurant and outdoor dining patios
• Residential covered patios and pergolas
• Commercial outdoor seating and hospitality spaces

Dimensions and weight

Check physical size and weight to confirm appropriate mounting, handling, and clearances for the installation.

• Length: 61-1/4"
• Weight: 20 lbs
• Finish: Stainless steel

Installation and compatibility notes

Verify electrical supply and control compatibility before ordering. Follow local electrical and building codes for outdoor heater installation.

• Confirm the available 208 V circuit and that circuit capacity matches the heater's requirements
• Specify and pair with a compatible control or relay panel for switching and zoning as needed
• Use appropriate mounting hardware and adhere to manufacturer clearance recommendations

Before You Order

Confirm that the installation location has an appropriate 208 V circuit and that you have identified the control or relay panel you will use with this heater.

• Verify a dedicated 208 V circuit with sufficient capacity
• Confirm mounting clearance and required mounting hardware
• Specify a compatible control or relay panel for switching/zoning

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Infratech 21-3220 C-3028 SS C-Series Heater. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
