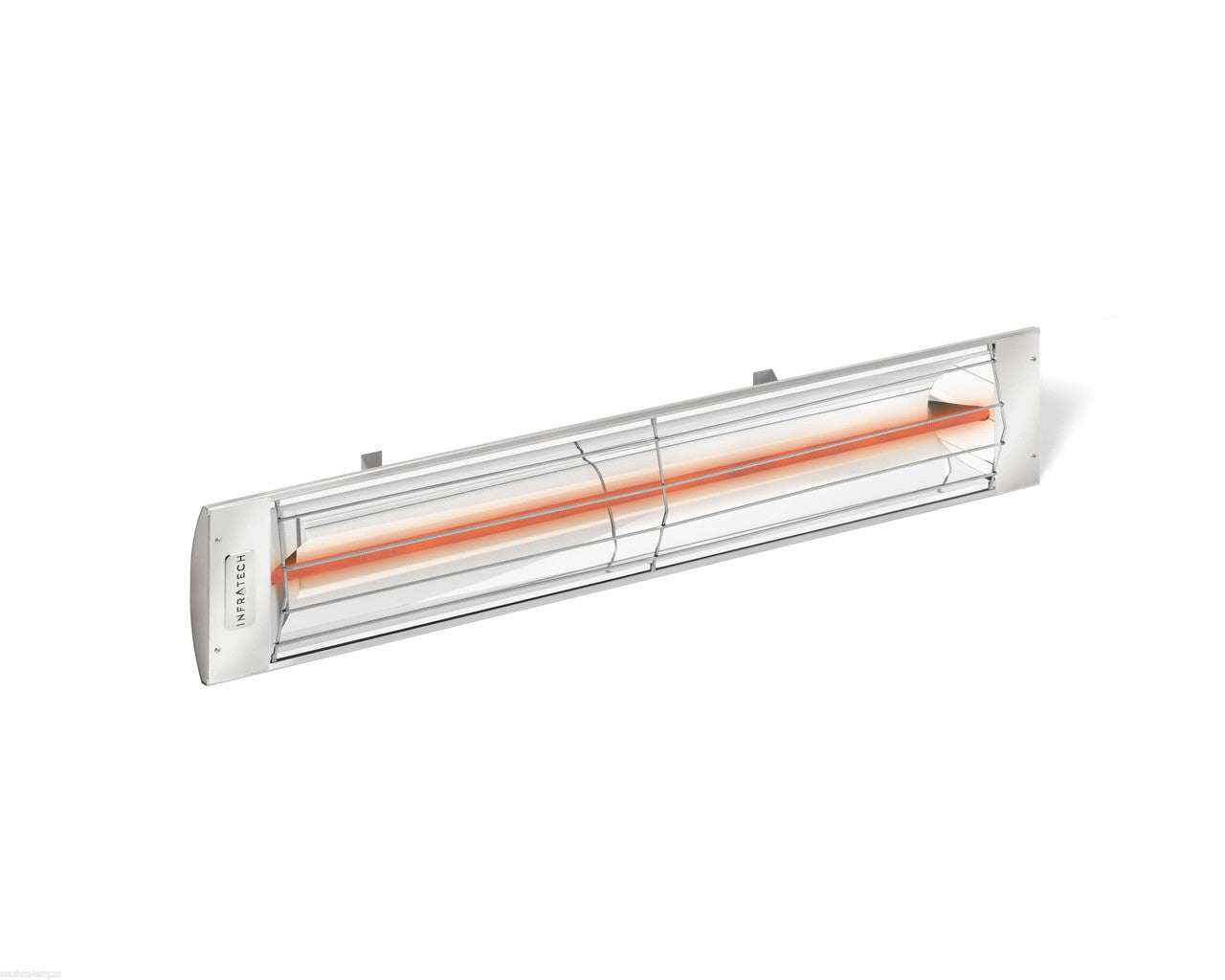

Infratech 21-3145 C-2628 SS C-Series Heater

Product Overview

The Infratech 21-3145 (C-2628 SS) is a 2600 W electric infrared C‑Series heater in a stainless steel finish designed for weather-exposed outdoor and covered installations.

This model operates on 208 V at 12.5 A, delivers infrared comfort heat with no gas, flame, or combustion emissions, and measures 48" in length while weighing 13 lbs.

Key Features

• 2600 W rated output on 208 V
• Stainless steel finish suited for weather-exposed installs
• Electric infrared heating — no combustion, flames, or on-site emissions
• 48" length and 13 lb weight for streamlined mounting

What this heater does

The Infratech 21-3145 C-2628 SS provides electric infrared comfort heating rated at 2600 W when connected to a 208 V supply. Infrared heating warms surfaces and people directly rather than heating large volumes of air.

Electrical and load requirements

This unit is specified for 208 V operation with a rated current of 12.5 A. Confirm a dedicated 208 V circuit with appropriate overcurrent protection and wiring sized to local code before installation.

• Voltage: 208 V
• Wattage: 2600 W
• Amperage: 12.5 A

Mounting and installation notes

The heater is 48" long and weighs 13 lbs, and it is finished in stainless steel for use in weather-exposed or covered outdoor settings. Pair the unit with compatible Infratech controls or relay panels as required for switching and zoning.

• Length: 48"
• Weight: 13 lbs
• Finish: Stainless steel

Recommended applications

The C-2628 SS is suited to outdoor hospitality and residential settings where electric infrared spot or area heating is desired. Typical uses include restaurant patios, decks, covered pergolas, and other commercial or residential outdoor dining or gathering areas.

Technical specifications

Key model-specific technical details are listed below for quick reference.

• Brand: Infratech
• Model / SKU: 21-3145
• Product Type: C-Series Heater
• Finish: Stainless Steel
• Wattage: 2600 W
• Voltage: 208 V
• Amperage: 12.5 A
• Length: 48"
• Weight: 13 lbs

Before You Order

Confirm the exact model number and the required quantity before ordering. Verify that a 208 V circuit capable of supplying 12.5 A per unit is available and plan control/relay equipment for switching and zoning as needed.

• Confirm model: 21-3145 (C-2628 SS)
• Verify available 208 V circuit and breaker sizing
• Plan for compatible Infratech control or relay panel for switching

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Infratech 21-3145 C-2628 SS C-Series Heater. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
