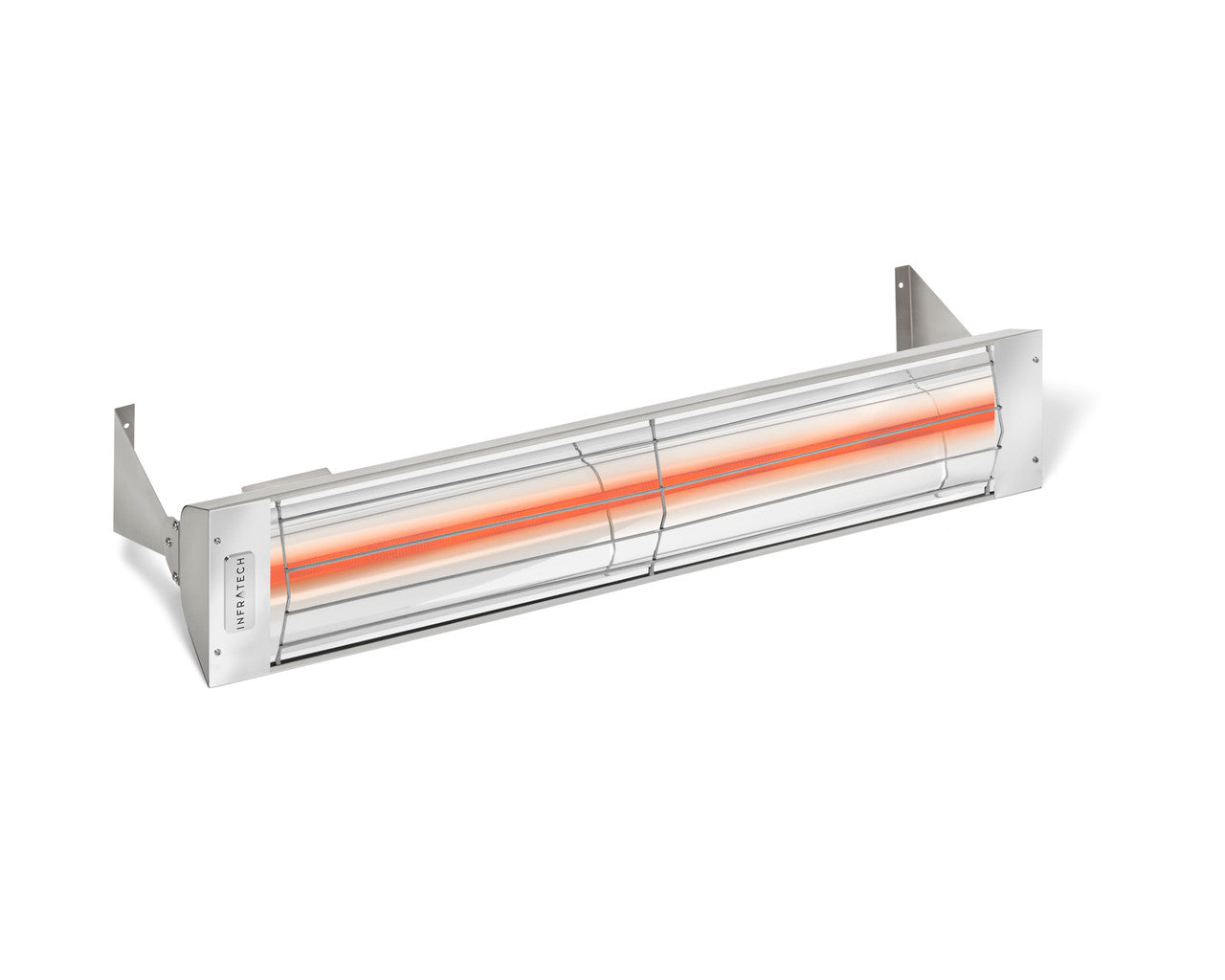

Infratech 21-1110 W-3028 SS W-Series Heater

Product Overview

The Infratech 21-1110 (W-3028 SS) is a stainless-steel W-Series electric infrared heater rated at 3000 W on 208 V. It delivers directed infrared comfort heat without gas or open flame.

Designed for weather-exposed and covered outdoor spaces, the unit measures 61-1/4" in length, weighs 20 lb, and draws 14 A at 208 V. Confirm electrical supply and control compatibility prior to installation.

Key Features

• 3000 W output at 208 V for strong infrared heating
• Stainless steel finish suitable for weather-exposed installs
• Electric infrared operation — no gas, flame, or emissions
• Compact 61-1/4" length and 20 lb weight for mounted applications
• Designed to pair with compatible Infratech controls or relay panels

What this heater does

The Infratech 21-1110 W-3028 SS is an electric infrared comfort heater that provides 3000 W of heat when connected to a 208 V supply. It emits infrared energy that warms people and surfaces directly rather than heating air, enabling targeted outdoor comfort without combustion.

• Infrared heating — no combustion, flame, or emissions
• 3000 W output suitable for heating occupied zones on patios and covered outdoor areas

Where to use it

This model is intended for covered and weather-exposed outdoor installations in commercial and residential settings. Typical applications include restaurant patios, decks, pergolas, and hospitality outdoor spaces where directed infrared heat improves occupant comfort.

• Restaurant patios and outdoor dining areas
• Residential patios, pergolas, and covered decks
• Commercial and hospitality outdoor spaces

Electrical and control requirements

The unit is rated for 208 V operation and draws 14 A. Confirm the availability of a compatible 208 V circuit and that branch circuit capacity and overcurrent protection match local electrical code and project design. The heater is intended to be paired with compatible Infratech controls or a relay/control panel for switching and zone control.

• Voltage: 208 V
• Rated current: 14 A
• Pair with appropriate Infratech control or relay panel for switching and zoning

Size, finish, and mounting notes

The W-3028 SS comes in a stainless-steel finish for durability in weather-exposed installations. Its physical size and weight should be checked against mounting locations and support structures.

• Length: 61-1/4"
• Weight: 20 lbs
• Finish: Stainless Steel — intended for weather-exposed installs

Before You Order

Confirm the exact model number (21-1110) and ensure your site has a 208 V circuit capable of supplying 14 A plus appropriate overcurrent protection. Verify the preferred control method and compatibility with Infratech control or relay panels before ordering.

• Confirm model: 21-1110 (W-3028 SS)
• Verify 208 V circuit and 14 A capacity
• Confirm control/relay compatibility with your electrical design

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Infratech 21-1110 W-3028 SS W-Series Heater. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
