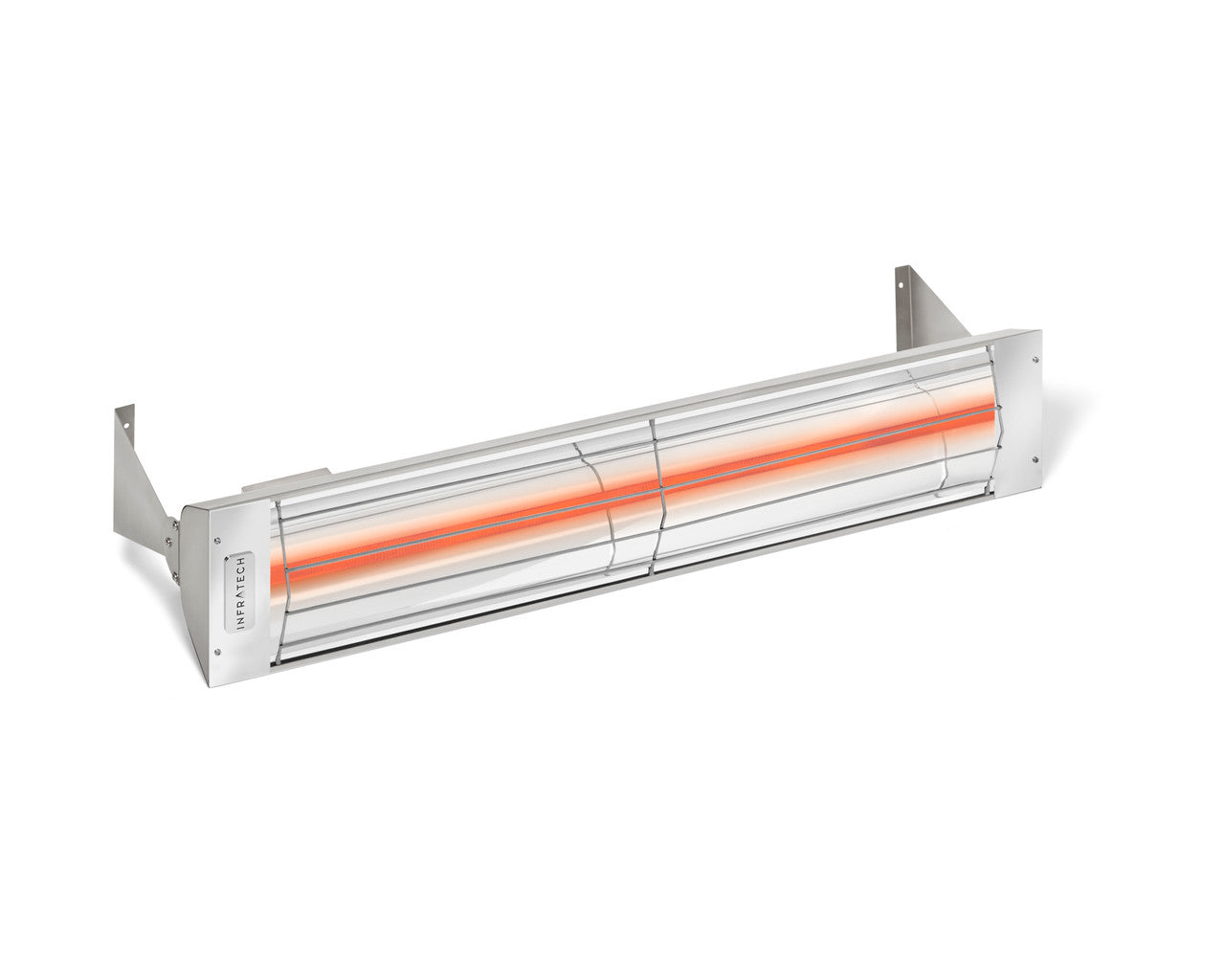

Infratech 21-1033 W-1012 SS W-Series Heater

Product Overview

The Infratech 21-1033 (W-1012 SS) is a 1000 W electric infrared heater in a stainless steel finish that operates on 120 V circuits.

It provides infrared comfort heat without combustion or on-site emissions and is commonly used for covered patios, decks, and outdoor dining areas.

Key Features

• 1000 W output on 120 V (8.3 A)
• Stainless steel finish for weather-exposed installs
• Electric infrared heating — no gas, flame, or on-site emissions
• W-Series form factor — 33" length, 12 lb weight
• Single SKU: 21-1033 (W-1012 SS)

What this heater does

The Infratech 21-1033 (W-1012 SS) provides electric infrared comfort heating. It radiates heat to people and surfaces rather than relying on heating ambient air and delivers 1000 watts of output on a 120 V supply.

• Electric infrared heating — no combustion or on-site emissions.
• Commonly used to provide localized comfort in covered outdoor and indoor-adjacent areas.

Electrical requirements

This model is rated at 1000 W and 8.3 A when operated on a 120 V supply. Confirm a suitable 120 V circuit and ensure branch-circuit amperage and breaker sizing comply with local electrical code.

• Wattage: 1000 W
• Voltage: 120 V
• Amperage: 8.3 A

Recommended applications

Typical applications include restaurant patios, residential covered patios and pergolas, decks, and hospitality outdoor seating areas where an infrared heater with a corrosion-resistant finish is desired.

• Commercial patios and outdoor dining
• Residential covered patios and pergolas
• Hospitality outdoor seating areas

Size, finish, and weight

Check the heater's physical length and finish to confirm fit and appearance for mounting locations.

• Length: 33"
• Finish: Stainless steel
• Weight: 12 lbs

Installation and controls

Confirm compatibility with your control strategy before ordering. Pair the unit with an appropriate control or relay panel per your project requirements.

• Requires appropriate switching/control hardware for zoned installations.
• Verify a proper 120 V circuit and amperage before installation.

Before You Order

Verify the model number and confirm you have an appropriate 120 V circuit for the required amperage.

• Confirm 120 V circuit capacity for the number of units being installed.
• Plan to pair the heater with a compatible control or relay panel if switching or zoning is required.
