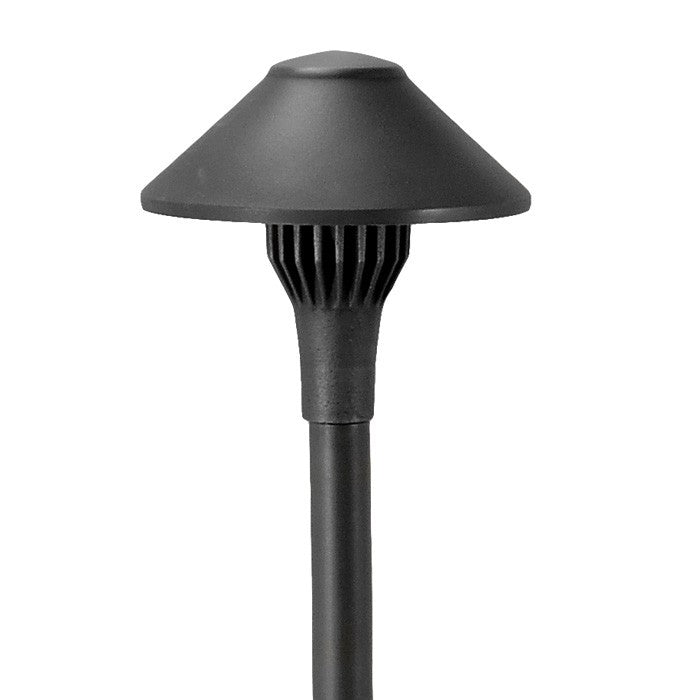

Focus Industries AL01LEDP Area Light

Product Overview

The Focus Industries AL01LEDP is an LED panel area light for landscape and pathway area illumination. This product page offers 12 finish options.

The manufacturer lists the LEDP configuration as 12V, 4W, 480 lumens and 3000K. The fixture is rated IP65.

Key Features

• AL01LEDP LED panel area light
• LEDP configuration: 12V, 4W, 480 lumens and 3000K
• IP65 rating
• 12 finish options, including brass and brass-body combinations

LED Output and Electrical Details

The manufacturer lists the AL01LEDP LEDP configuration as a 12V LED panel rated at 4W, with 480 lumens and a 3000K color temperature. The listed driver data specifies a 4.9W, 120V electronic LED driver with 350mA output and 12V AC/DC input.

Available Finish Options

This product page offers 12 finish selections, including textured, weathered, natural brass and acid-treated brass finishes. Two options specify a brass body with a textured finish.

• Black Texture, Bronze Texture and Rust
• Weathered Brown, Weathered Iron and Chrome Powder
• Natural Brass
• Brass Body, Black Texture and Brass Body, Bronze Texture
• Acid Rust Brass, Black Acid and Acid Verde Brass

Dimensions and Standard Mounting

The manufacturer specifies a 5.50-inch hat diameter and a standard 9-inch stem. The listed standard low-voltage mounting stakes are FA03 for the aluminum version and FA03LG for the brass version. An adjustable hub and other mounting options are also listed.

IP Rating and Listings

The AL01LEDP specification identifies an IP65 rating and lists ETL and CE. IES files are available for download.

Before You Order

Select the finish option that suits your project.
