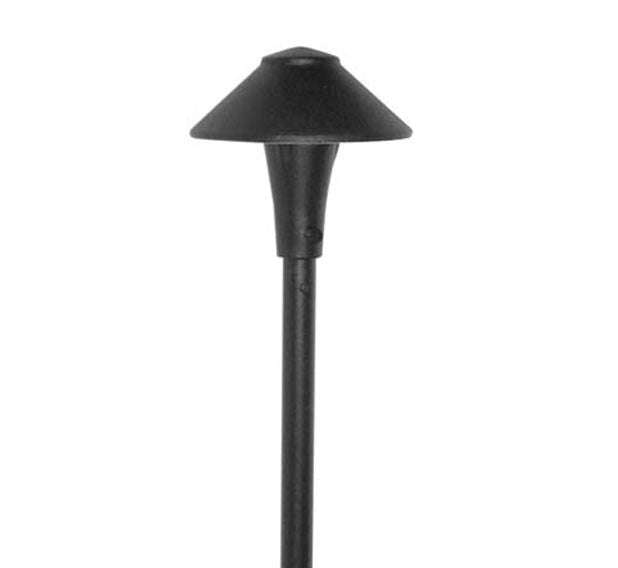

Focus Industries AL01L12 Area Light

Product Overview

The Focus Industries AL01L12 is a 12V low-voltage area light furnished with a 3W Omni3 Super Saver LED (L12) producing 300 lumens at 3000K. The fixture uses a 5.5" china-hat style head and is offered in cast brass and other material/finish options.

It is intended for landscape and pathway area illumination and is available in multiple finish and mounting configurations.

Key Features

• Lamp: 3W Omni3 Super Saver LED (L12), 3000K, 300 lm
• Construction: Cast brass china-hat head (brass models) — aluminum head available on other catalog variants
• Head diameter: 5.5" (china-hat)
• Voltage: 12V low-voltage design
• Fixture lead: 3' 18/2 zip cord from base (12V models)
• Socket: Ba15s single-contact bayonet for 12V with 200°C silicone lead wires
• Multiple finish options and brass specialty finishes available (see SKUs)

Function and performance

The AL01L12 provides general area and pathway illumination using a 3W Omni3 Super Saver LED platform. It delivers 300 lumens at a 3000K color temperature for warm white output.

• Light source: 3W Omni3 Super Saver LED (L12)
• Output: 300 lumens
• Color temperature: 3000K

Where it’s typically used

The fixture is specified for landscape and pathway area illumination in residential and commercial settings. The china-hat head form provides broad distribution appropriate for general area coverage.

• Typical uses: pathways, general landscape areas, grounds lighting, exterior accents

Electrical and wiring details

This is a 12V low-voltage fixture supplied with a 3' 18/2 zip cord from the base on 12V models. For connections to the main cable, an FA-05 quick connector is referenced (not supplied). A 25' 16/2 fixture lead option is available by adding -25F to the catalog number where applicable.

• Voltage: 12V
• Standard lead: 3' 18/2 zip cord (12V models)
• Optional longer lead: add -25F for a 25' 16/2 lead (catalog option)
• Connector: FA-05 quick connector referenced (not supplied)

Finish and SKU selection

The AL01L12 is offered in a range of finishes and price tiers. Standard and specialty finishes include Black Texture (standard on aluminum), Bronze Texture, Natural Brass, Acid Rust Brass, Black Acid, Acid Verde Brass, Rubbed Verde, Rust, Luna, Weathered Brown, Weathered Iron, Beige and others. Select the exact SKU for the desired finish and material.

• Examples of SKUs/finishes: AL01L12BLT (Black Texture), AL01L12BRT (Bronze Texture), AL01L12BRS (Natural Brass), AL01L12BAR (Acid Rust Brass), AL01L12BAT (Black Acid), AL01L12BAV (Acid Verde Brass)
• Brass models are identified in catalog references (brass models noted with -BRS)

Dimensions, mounting and accessories

The AL01L12 head measures 5.5" (140 mm) diameter. Mounting accessories and beam/glare-control options are listed in the catalog, including the FA-03 9" ABS stake (tapped 1/2" NPS) and sprinkler guard/glare shields (FA-97-1, FA-97-01SM). Stem extensions, posts and additional mounting hardware are available as catalog accessories.

• Head diameter: 5.5" (140 mm)
• Mounting stake: FA-03 black 9" ABS stake (tapped 1/2" NPS)
• Accessories: FA-97-1 and FA-97-01SM sprinkler guard / glare shield, stem extensions and post options per catalog

Before You Order

Confirm the exact AL01L12 catalog number/finish SKU and that your system provides 12V low-voltage power.

• Verify transformer capacity and cable sizing per local electrical code.
• Select the exact SKU for the desired finish and material.
• Specify the -25F option if a 25' 16/2 fixture lead is required.
