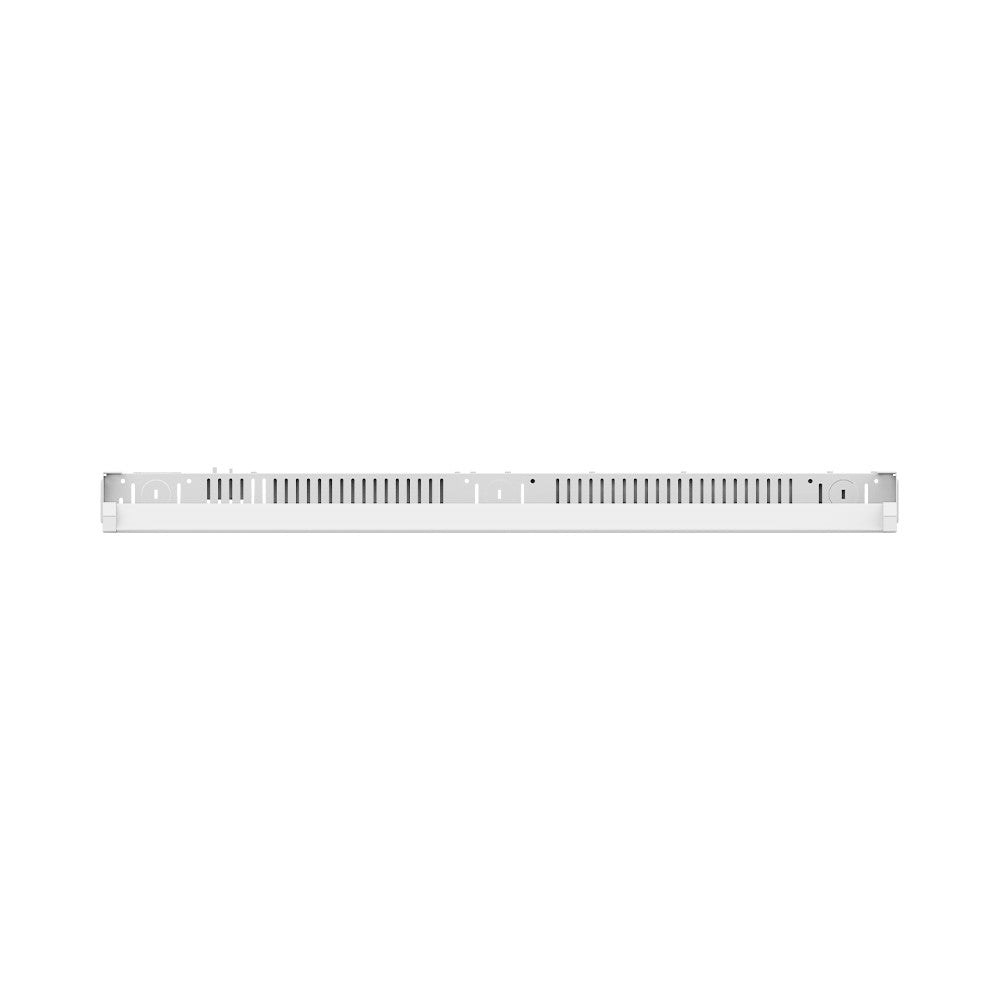

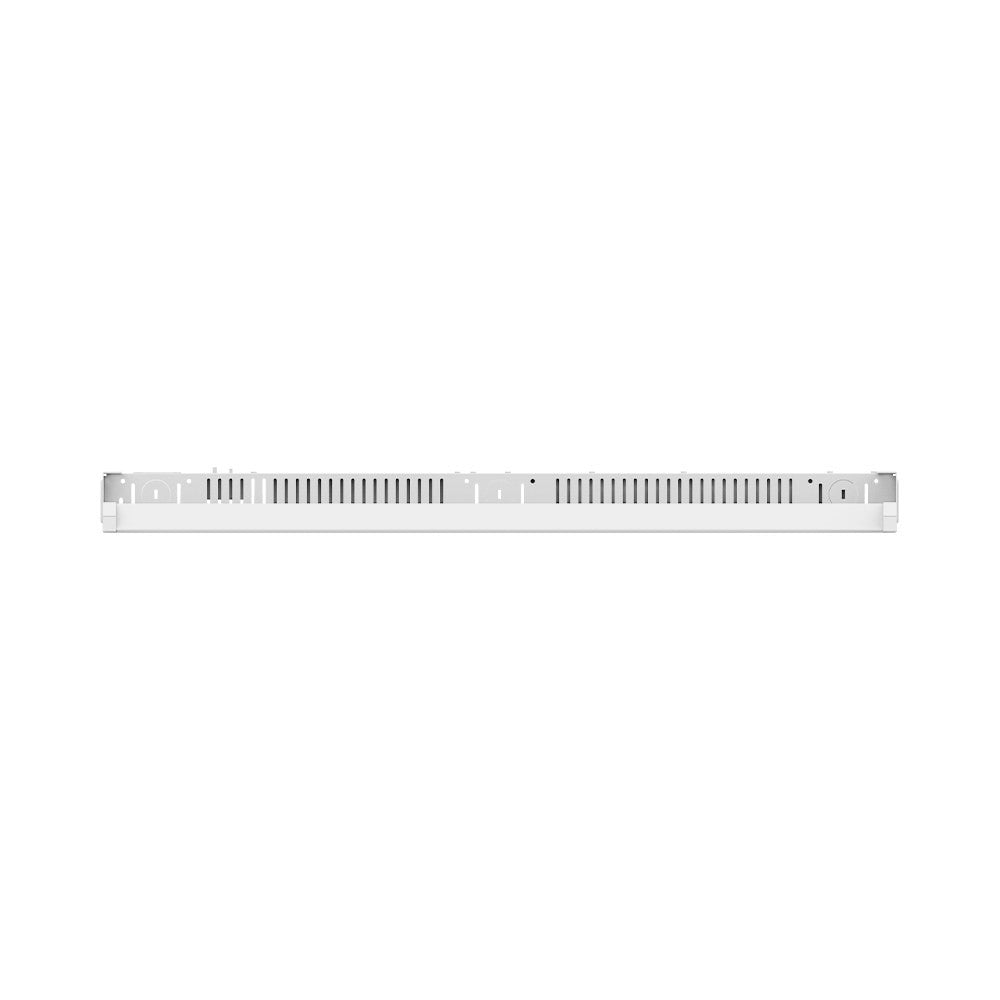

Euri Lighting 2 ft. 90/130/155W selectable LED Linear High Bay 4000K–5000K (ELHB2-155W1023cws)

Product Overview

The Euri Lighting ELHB2-155W1023cws is a 2 ft. selectable LED linear high bay for commercial and industrial high‑ceiling spaces. Field-selectable wattage and CCT allow one fixture to be configured at installation to match site requirements.

This model includes three wattage settings (90 / 130 / 155W), two color temperatures (4000K and 5000K), 0–10V dimming, ETL and DLC 5.1 listings, and a 5-year limited warranty.

Key Features

• Field-selectable wattage: 90W, 130W, 155W
• Selectable CCT: 4000K or 5000K via on-fixture switch
• Lumen output range: 12,150–21,000 lm depending on setting
• 0–10V dimming
• Rated life: 50,000 hours
• Certifications: ETL listed and DLC 5.1
• Damp location rated; 5-year limited warranty

What this fixture does

The ELHB2-155W1023cws is a 2 ft. linear high bay designed to provide general illumination in high‑ceiling commercial and industrial environments. Its selectable wattage and CCT let a single SKU be configured at install to meet different lighting needs.

• Field-selectable wattage: 90W / 130W / 155W
• Selectable CCT: 4000K or 5000K
• Beam angle: 90°

Light output and efficacy

Lumen output depends on the chosen wattage setting. The product is specified to deliver between 12,150 and 21,000 lumens and is listed with an efficacy of 135 lm/W.

• Lumen range: 12,150–21,000 lm (dependent on wattage selection)
• Efficacy: 135 lm/W
• Color rendering: 80 CRI

Dimming and controls

The fixture supports 0–10V dimming for use with compatible commercial dimmers or control systems. Set the wattage and CCT switches on the fixture during installation as needed.

• 0–10V dimming input
• On-fixture switches for wattage and CCT selection

Electrical and power details

Plan circuits according to the selectable power settings and the listed electrical characteristics. Follow local electrical code and project requirements for wiring and overcurrent protection.

• Input voltage: 120–277V
• Power factor: 0.9
• Input current (reference): 1.3 A
• Selectable wattage: 90W, 130W, 155W

Recommended applications

Suitable for general-area lighting in spaces with high ceilings where configurable lumen output is useful. Typical uses include warehouses, manufacturing areas, gymnasiums and big‑box retail.

• Warehouses and distribution centers
• Manufacturing and production floors
• Gymnasiums and recreation facilities
• Big-box retail and other high‑ceiling spaces

Certifications and warranty

This model is ETL listed, meets DLC 5.1, is damp location rated, and includes a 5-year limited warranty.

• Listings: ETL, DLC 5.1
• Location rating: Damp location
• Rated life: 50,000 hours
• Warranty: 5-year limited warranty

Before You Order

Confirm model ELHB2-155W1023cws and that the 2 ft. fixture size and selectable settings meet your project requirements.

• Decide which wattage (90/130/155W) and CCT (4000K/5000K) settings you will use and set switches at installation
• Verify mounting provisions and fixture dimensions for your layout
• Provide a compatible 0–10V dimming circuit if dimming is required
