EnVision PL-H-ALM-BZ-DT – Double Top

Product Overview

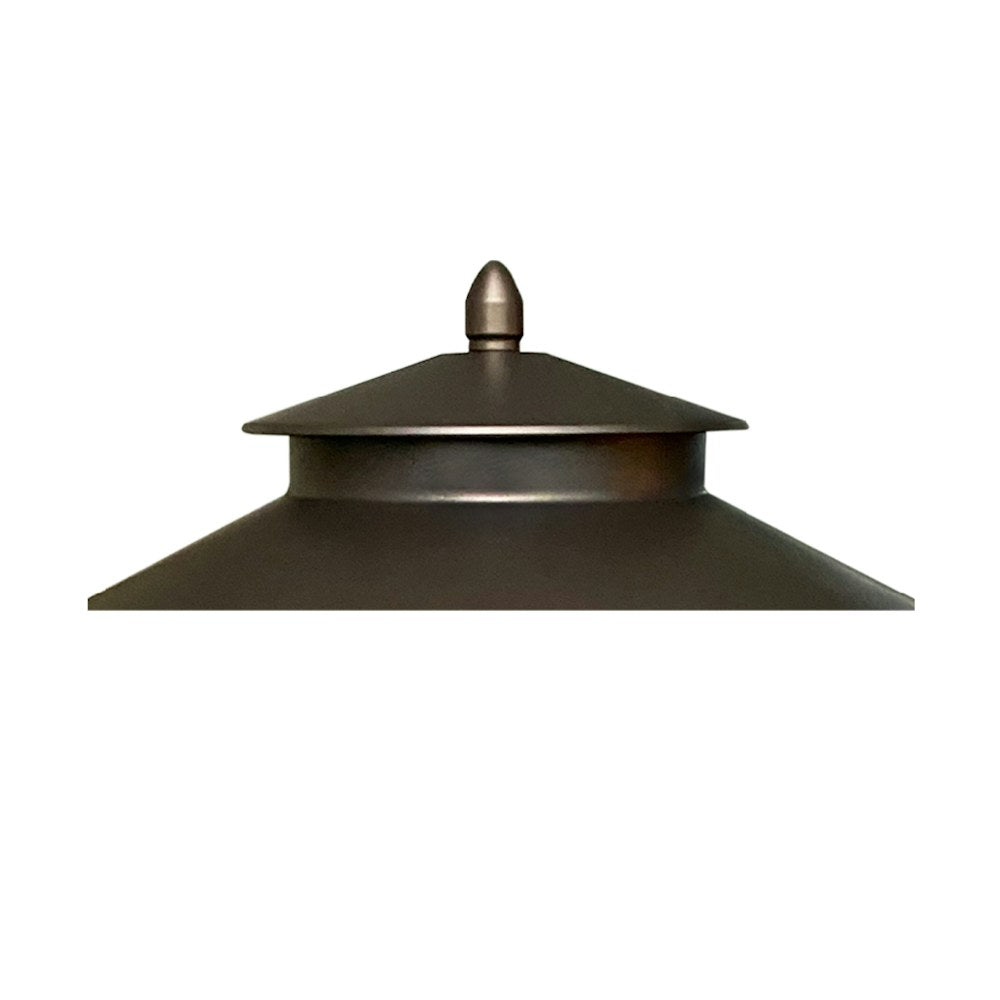

The EnVision PL-H-ALM-BZ-DT is a double-top bronze-finish integrated LED path light designed for low-voltage landscape applications. It combines RGB color scenes with five selectable white color temperatures and an IP65 wet-location rating for outdoor use.

The fixture uses an aluminum housing with a frosted polycarbonate lens, provides a 360° beam, and includes a push button on the stem for selecting color and white-light scenes at each fixture.

Key Features

• Integrated LED, 5W power
• 200 lumens output
• RGB + 5‑CCT selectable (17 scene/color options) via push button on stem
• 360° beam angle with frosted PC lens
• Aluminum housing, bronze finish
• Wet Location IP65 rating
• Compatible with 12–24V AC/DC low-voltage drivers
• Includes 7" non-metallic spike and 6' (72") SPT-1W 20‑gauge wire lead
• 3‑year limited warranty

What this fixture does

The PL-H-ALM-BZ-DT is an integrated LED low-voltage path light intended for landscape, walkways, security, hospitality and general outdoor illumination. Its double-top shade form provides omnidirectional illumination suitable for pathways and surrounding planting beds.

• Designed for residential and commercial outdoor applications listed above
• Double-top shade in bronze finish; stems and shades are part of the product family and are sold per the manufacturer's offering

Performance and light output

This fixture produces 200 lumens from a 5W integrated LED with a 360° beam delivered through a frosted polycarbonate lens. It offers five selectable white color temperatures plus RGB color scenes controlled at the fixture.

• Power: 5W
• Lumen output: 200 lm
• Beam angle: 360°
• Color options: RGB + 5‑CCT (2700K, 3000K, 3500K, 4000K, 5000K) and multiple color scenes (17 options)

Electrical compatibility and driver guidance

The PL-H-ALM-BZ-DT is compatible with low-voltage power sources operating between 12 and 24 volts AC or DC. The manufacturer specifies that the maximum fixture load on a transformer should not exceed 80% of the transformer's wattage.

• Voltage: 12–24V AC/DC compatible
• Transformer guidance: do not exceed 80% of transformer capacity for total connected load

Mounting, wiring and field configuration

Each fixture includes a 7" non-metallic spike for in-ground mounting and a 6' (72") SPT-1W 20-gauge wire lead for low-voltage connection. The color/white temperature selector is a push button located on the top of the stem; the cap is removed to access the switch.

• Included: 7" non-metallic spike, 6' SPT-1W 20-gauge lead
• Color selection: push button on stem (cap removed to access)
• Optional accessories: brass spike, surface mounts, and other accessories are available from the manufacturer

Construction, finish and dimensions

The fixture features an aluminum housing and stem with a frosted PC lens and a watertight silicone ring for outdoor protection. The product family notes a stem height of 21"; shade diameters vary by style.

• Housing: aluminum
• Lens: frosted polycarbonate (PC)
• Finish: bronze
• Stem height (product family): 21"

Before You Order

Confirm model, finish and quantity. Verify driver/transformer voltage and capacity to match low-voltage installation requirements.

• Confirm you require the Double Top bronze shade: PL-H-ALM-BZ-DT
• Specify driver voltage (12–24V AC/DC) and ensure transformer capacity accounts for total connected fixtures

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision PL-H-ALM-BZ-DT – Double Top. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
