EnVision PL-H-ALM-BZ-2 – Style 2

Product Overview

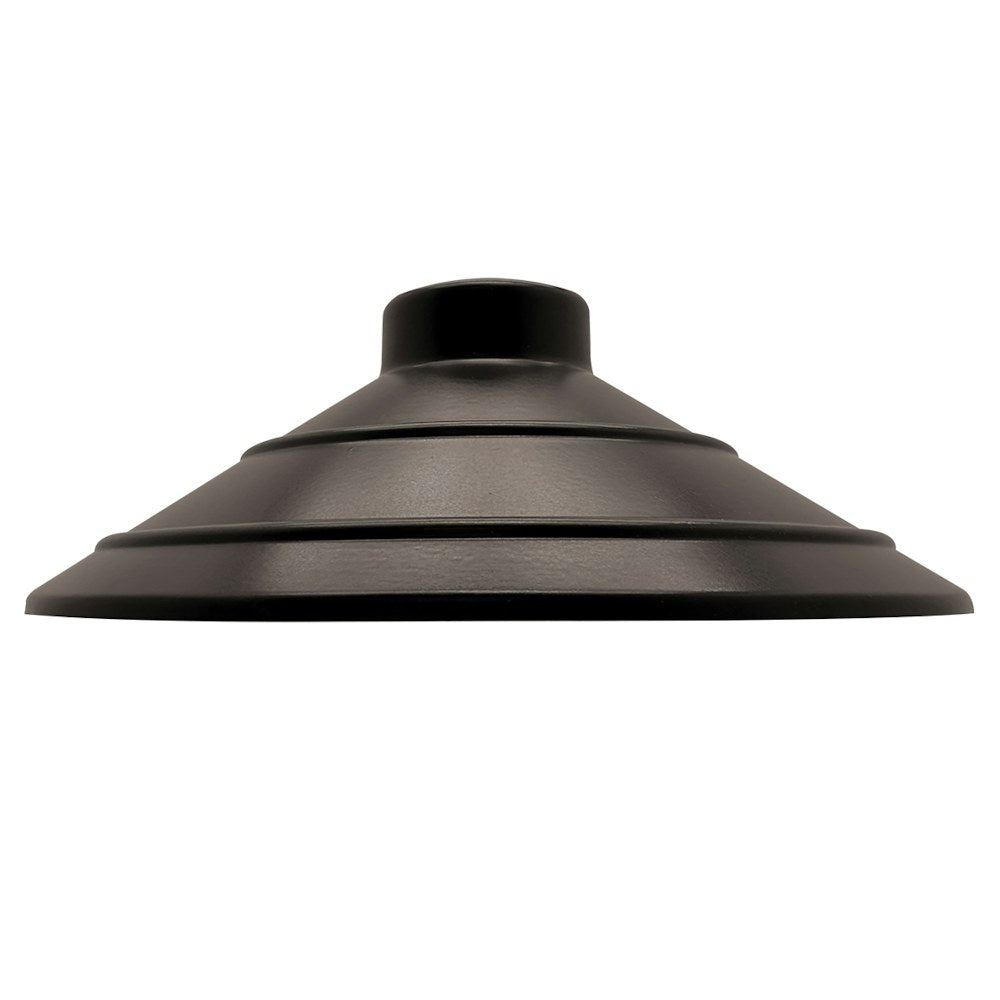

The EnVision PL-H-ALM-BZ-2 is a Style 2 low-voltage path light shade and housing in a bronze finish designed for landscape and pathway illumination.

This listing is for the aluminum path-light shade/housing only; bulbs, stems and some mounting accessories are sold separately. The housing is rated IP65 for wet locations and is ETL listed.

Key Features

• Aluminum housing and shade in bronze finish
• Designed for 12V low-voltage systems (compatible with 12V drivers)
• Wet-location rated (IP65) with clear heat-resistant glass lens and water-tight silicone ring
• ETL listed; 1 Year Limited Warranty on housing defects
• Includes non-metallic stake; stem options available in 12" or 24" (sold separately)
• Accepts G4 12V bulbs; LED G4 and halogen options available (bulbs not included); maximum halogen 35W

What this unit is and where to use it

The PL-H-ALM-BZ-2 is a Style 2 aluminum path-light shade and housing in a bronze finish intended for low-voltage landscape illumination. It is used for walkways, garden paths, outdoor corridors, hospitality and multi-family exterior lighting as well as general residential and commercial landscape applications.

• Path light shade/housing — sold as the shade/housing only, not a complete luminaire with integrated lamp
• Typical applications: landscape, walkways, security lighting, outdoor corridors

Bulb and driver compatibility

This model accepts G4-style 12V lamps. Bulbs are not included so you can choose compatible LED G4 replacements or halogen bulbs within the manufacturer's specified limits.

• Compatible lamp types: G4 12V bulbs (LED and halogen)
• Maximum halogen rating: 35W
• Manufacturer offers LED G4 options (examples include 1.5W, 2.5W, 3.5W variants at 2700K/3000K/4000K); select bulb wattage and color temperature based on desired lumen output

Outdoor suitability and protections

The housing is rated IP65 for wet locations and includes a clear heat-resistant glass lens plus a water-tight silicone ring to protect internal components from moisture.

• IP65 wet-location rating
• Clear heat-resistant glass lens
• Water-tight silicone ring for waterproofing

Mounting options and included components

The product ships with an 8.3" non-metallic stake for stake mounting and a 6' (72") SPT-1W 18-gauge wire lead. Stem and certain mounting accessories are sold separately; stems are offered in 12" and 24" heights. Optional accessories such as brass stakes and surface mounts are available from the manufacturer.

• Included: 8.3" non-metallic spike and 6' SPT-1W 18 gauge wire lead
• Stem options (sold separately): 12" or 24" heights
• Optional accessories: brass spike, surface mounts, stake covers and path light covers

Materials, dimensions and finish

The PL-H-ALM-BZ-2 is constructed of aluminum with a bronze finish and uses a clear glass lens. Refer to the manufacturer's dimensional drawings for exact measurements for planning and installation.

• Housing: aluminum; Finish: bronze
• Lens: clear heat-resistant glass
• Refer to manufacturer drawings for exact model dimensions and shade diameters

Before You Order

This SKU is the Style 2 bronze shade/housing only; bulbs, stems and some mounting accessories are sold separately.

• Verify required bulb type (G4 LED or halogen) and desired color temperature/lumen output
• Confirm stem height (12" or 24") and any additional mounting accessories needed
• Ensure compatibility with your 12V driver and circuit design
