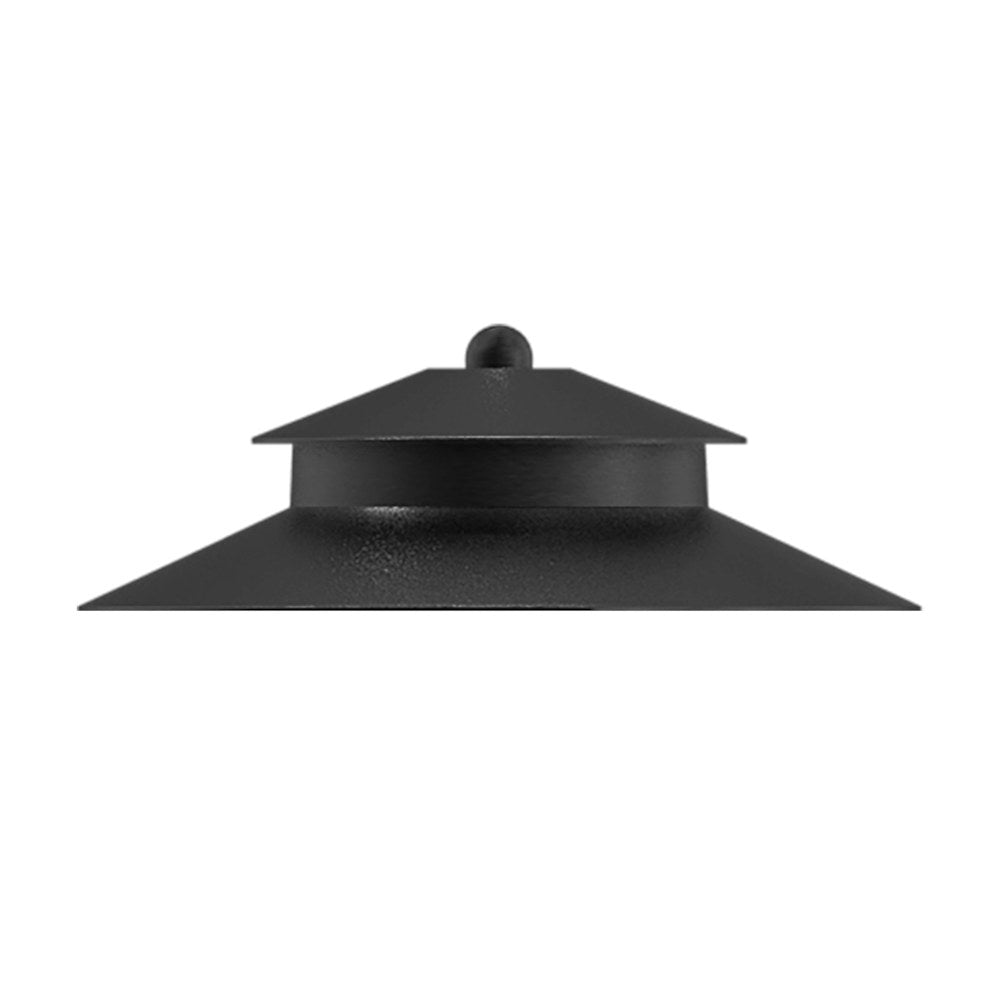

EnVision PL-H-ALM-BL-3 – Style 3

Product Overview

The EnVision PL-H-ALM-BL-3 is a Style 3 low-voltage path light housing intended for landscape and outdoor pathway lighting. It is an aluminum shade with a black finish and is rated for wet locations (IP65).

This SKU is the housing/shade assembly and ships without bulbs. It accepts 12V G4-type lamps; EnVision lists compatible LED G4 and halogen G4 options separately.

Key Features

• Aluminum housing with black finish
• Wet-location construction (IP65) with water-tight silicone ring and heat-resistant glass lens
• Designed for use with 12V G4 lamps (lamp not included); LED and halogen G4 options are listed by the manufacturer
• Intended for landscape applications such as path lights, walkways and outdoor corridors
• Stem options and mounting accessories are available separately

What this product is

The PL-H-ALM-BL-3 is the Style 3 aluminum path light shade/housing from EnVision in a black finish. It is intended to accept a separate 12V G4 lamp and integrate with low-voltage landscape systems.

• Type: Path light housing / shade (lamp not included)
• Finish: Black
• Typical applications: landscape path lighting, walkways, outdoor corridors

Bulb and driver compatibility

The housing accepts G4-style low-voltage lamps. EnVision lists specific G4 LED lamp models and halogen G4 options separately; bulbs are not included with the housing.

• Compatible lamp base: G4 (12V)
• Manufacturer-listed LED G4 options include 1.5W, 2.5W and 3.5W variants in multiple color temperatures (LED bulbs sold separately)
• Use an appropriate 12V low-voltage driver sized for the total run wattage

Outdoor suitability and IP rating

The PL-H-ALM-BL-3 is rated for wet locations with an IP65 designation. Weatherproofing includes a heat-resistant glass lens and a water-tight silicone ring.

• IP Rating: Wet Location IP65
• Lens: Clear heat-resistant glass
• Sealing: Water-tight silicone ring

Mounting, stems and included hardware

EnVision provides an 8.3" non-metallic spike for stake mounting and a 6' SPT-1W 18-gauge wire lead with these path light models. Stem height options are offered by model and may be ordered as required.

• Included: 8.3" non-metallic stake and 6' SPT-1W 18-gauge wire lead (per product family details)
• Stem options: 12" or 24" (selection depends on model configuration)
• Optional accessories: brass spike and surface/tree-mount accessories available from the manufacturer

Certifications, warranty and packaging

The housing is ETL listed. The manufacturer provides a 1-year limited warranty on housing defects. Packaging is a retail color box; master box quantities are provided by product type.

• Certification: ETL Listed
• Warranty: 1 Year Limited Warranty on housing defects (manufacturer)
• Master box quantity: 10 (for stems/shades as applicable)

Before You Order

Confirm this SKU is the housing/shade only and that you have selected the correct G4 lamp, stem length and any mounting accessories before ordering.

• Bulb is not included — choose a compatible G4 lamp model and wattage.
• Select stem length (12" or 24") or accessories if required for your installation.
