EnVision LED-WPROT2-40WS-30K-BZ – R-Line One Module

Product Overview

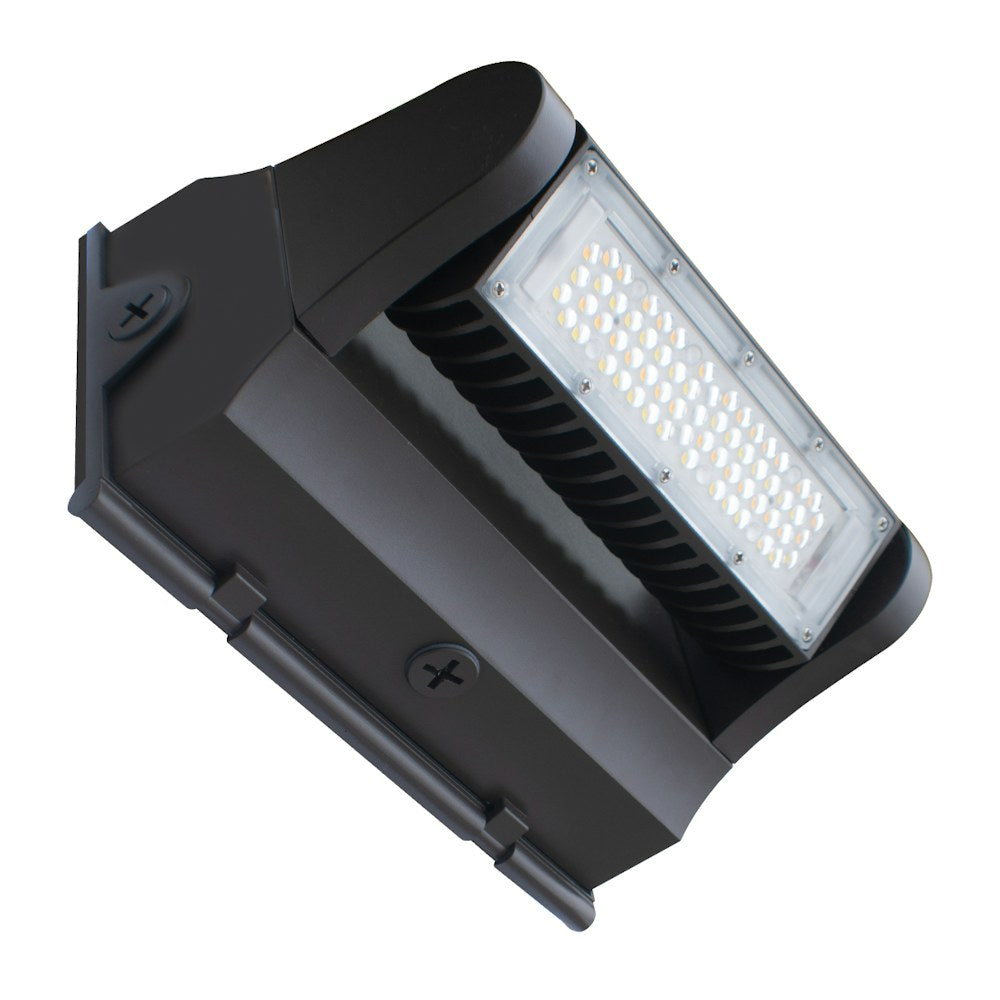

The EnVision LED-WPROT2-40WS-30K-BZ is a single-module R-Line rotating LED wall pack that delivers 40W and 4,890 lumens at 3000K in a bronze die-cast aluminum housing.

It features 360° rotating heads with tool-free adjustment, a 60° beam optic, 0–10V dimming compatibility (UNV driver), wet-location IP65 rating, and a 5-year limited warranty.

Key Features

• 40W nominal power delivering 4,890 lumens
• 3000K color temperature, CRI >80 (R9 >50)
• 120–277V universal input with 0–10V dimmable driver (UNV option)
• Wet Location IP65; IK08 impact rating
• Die-cast aluminum housing with corrosion-resistant powder coat (bronze)
• 360° rotating heads with tool-free adjustment and a defined 60° beam optic
• Built-in 10 kV surge protector available as a factory option; THD <20% (±5% tolerance), PF >0.9 per driver specification
• Average life L70 of 70,000 hours and 5-year limited warranty
• UL listed; DLC listing varies by specific model — consult DLC chart

What this fixture does

The LED-WPROT2-40WS-30K-BZ is a single-module rotating wall pack in EnVision’s R-Line family intended for exterior wall-mounted illumination of walkways, parking areas, building perimeters and outdoor corridors.

• Single-module rotating design provides aimed lighting with tool-free 360° rotation.
• Face-down orientation is listed as cut-off dark-sky compliant for the 3000K configuration.

Light output and optics

This model produces 4,890 lumens at 3000K with CRI >80 and R9 >50. It uses a clear acrylic lens and a defined 60° beam optic.

• Nominal output: 4,890 lm at 40W.
• CCT: 3000K; CRI: >80 (R9 >50).
• Beam angle: 60°; optics via clear acrylic lens.

Electrical and control specifications

The fixture is offered with a UNV driver (120–277V) that supports 0–10V dimming. Driver specifications list THD <20% (±5% tolerance) and power factor >0.9. EnVision also offers HV driver and surge protector options for applicable models.

• Input voltage: 120–277V (UNV) with 0–10V dimming.
• Optional driver: 277–480V and optional built-in 10 kV or 20 kV surge protector depending on model/configuration.
• Compatible with EnVision control options (sensors and Bluetooth mesh) when selected as factory/configured options or accessories.

Mounting and physical details

The fixture has a die-cast aluminum housing with a corrosion-resistant powder coat bronze finish. It includes multiple 1/2" knockouts for wiring and a rotating head for aiming.

• Housing: die-cast aluminum with bronze powder coat (standard); other finishes available as custom options.
• Knockouts: five 1/2" knockouts for wiring access.
• Impact rating: IK08. Operating temperature range: -40° to 122° F.
• Optional shield (WPROT-SHIELD) is available and can be mounted forward or back on the module.

Certifications, ratings and warranty

This model is UL listed for the U.S. and Canada and rated for wet locations (IP65). EnVision documents note LM-79 and LM-80 testing availability and provide a 5-year limited warranty.

• Wet Location: IP65.
• UL Listed (US & CA); RoHS compliant; FCC compliant.
• Average life: L70 at 70,000 hours.
• 5-year limited warranty; DLC listing is model-dependent—refer to EnVision DLC chart for eligibility.

Before You Order

Confirm model number, quantity and required options prior to ordering.

• If DLC listing is needed for rebates, consult EnVision’s DLC chart for the specific model.
• Accessories and controls (shields, sensors, surge protector options, finishes) may be ordered separately or as model suffixes—specify when ordering.
