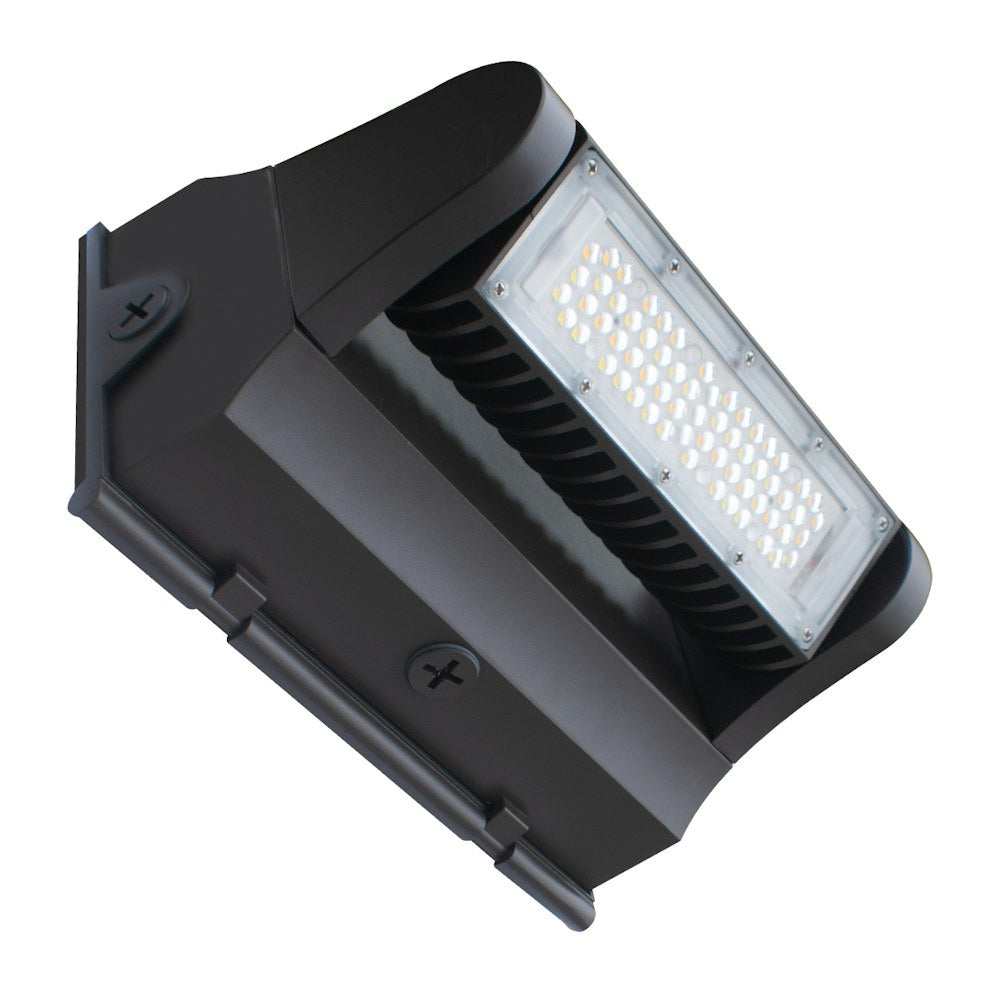

EnVision LED-WPROT2-25WS-TRI-BZ – R-Line One Module

Product Overview

The EnVision LED-WPROT2-25WS-TRI-BZ is a single-module R-Line rotating wall pack that delivers 25W and 3,600 lumens with field-selectable color temperature (3000K/4000K/5000K).

This exterior-rated bronze fixture features 360° rotating heads for aiming, 60° optics, a clear acrylic lens with optics, 0–10V dimming capability, and wet-location protection.

Key Features

• Wattage: 25W; light output: 3,600 lm
• Selectable CCT: 3000K / 4000K / 5000K (selection applies to the full fixture)
• Voltage: 120–277V; driver: 0–10V dimmable
• Wet-location rated; IK08 impact rating
• 360° rotating heads with 60° optics; clear acrylic lens with optics
• Die-cast aluminum housing with corrosion-resistant powder coat (bronze standard)
• Built-in 10 kV surge protector (standard); THD <20% (±5% tolerance); PF >0.9
• UL Listed (US/CA), DLC listed (models vary), RoHS compliant; 5-year limited warranty

Purpose and ideal applications

This single-module rotating R-Line wall pack is intended for exterior commercial, multi‑family, and residential applications where adjustable, aimed wall-mounted illumination is needed.

• Common applications: walkways, pathways, parking lot perimeters, outdoor corridors, hospitality and multi‑family exteriors.
• Face-down orientation can meet cut-off (dark-sky) criteria when configured at 3000K.

Performance and optical features

The fixture uses SMD 2835 LEDs to produce 3,600 lumens at 25W and offers a field-selectable CCT (3000K, 4000K, 5000K) that applies to the entire fixture.

• Optics: 60° beam angle with adjustable rotating head providing 360° rotation for aiming.
• Lens: clear acrylic with optics; Color rendering: CRI >80 with R9 >50.
• Rated average life: L70 — 70,000 hours.

Electrical and control details

The standard driver is universal 120–277V with 0–10V dimming. The fixture includes a built-in 10 kV surge protector; driver electrical performance is specified as THD <20% (±5% tolerance) and power factor >0.9.

• Dimming compatibility: 0–10V control. EnVision offers sensor and Bluetooth control options that are compatible with its 0–10V dimmable fixtures; control accessories are ordered separately.
• Available driver options from the manufacturer include HV (277–480V) variants for other models; confirm voltage/driver choice when specifying.

Installation and mounting features

The unit has a die‑cast aluminum housing with corrosion-resistant powder coat. It is designed for wall mounting with multiple wiring knockouts to simplify installation.

• Electrical access: five 1/2" knockouts (including one each side) for conduit/power entry.
• Heads rotate 360° without tools; an optional shield (WPROT-SHIELD) is available and can be mounted forward or rear-facing.

Ratings, certifications and warranty

The model carries common regulatory and performance listings used for commercial specification and can be referenced for rebate or code compliance where applicable.

• UL Listed for USA and Canada; DLC Standard & Premium listing varies by model (DLC ID listed as S-L2Z07B where applicable).
• RoHS compliant; California Title 24 approved; FCC Part 15 Subpart B tested.
• Impact rating IK08; operating temperature range −40°F to 122°F; 5-year limited warranty.

Before You Order

Confirm the exact model number, required quantity, and desired control/driver options before ordering.

• Selectable CCT applies to the full fixture and is set in the field.
• Optional accessories (ordered separately) include WPROT-SHIELD and various sensor/control modules; verify accessory model compatibility when specifying.
• If integrating with site controls or building systems, confirm the required driver voltage and control interface.
