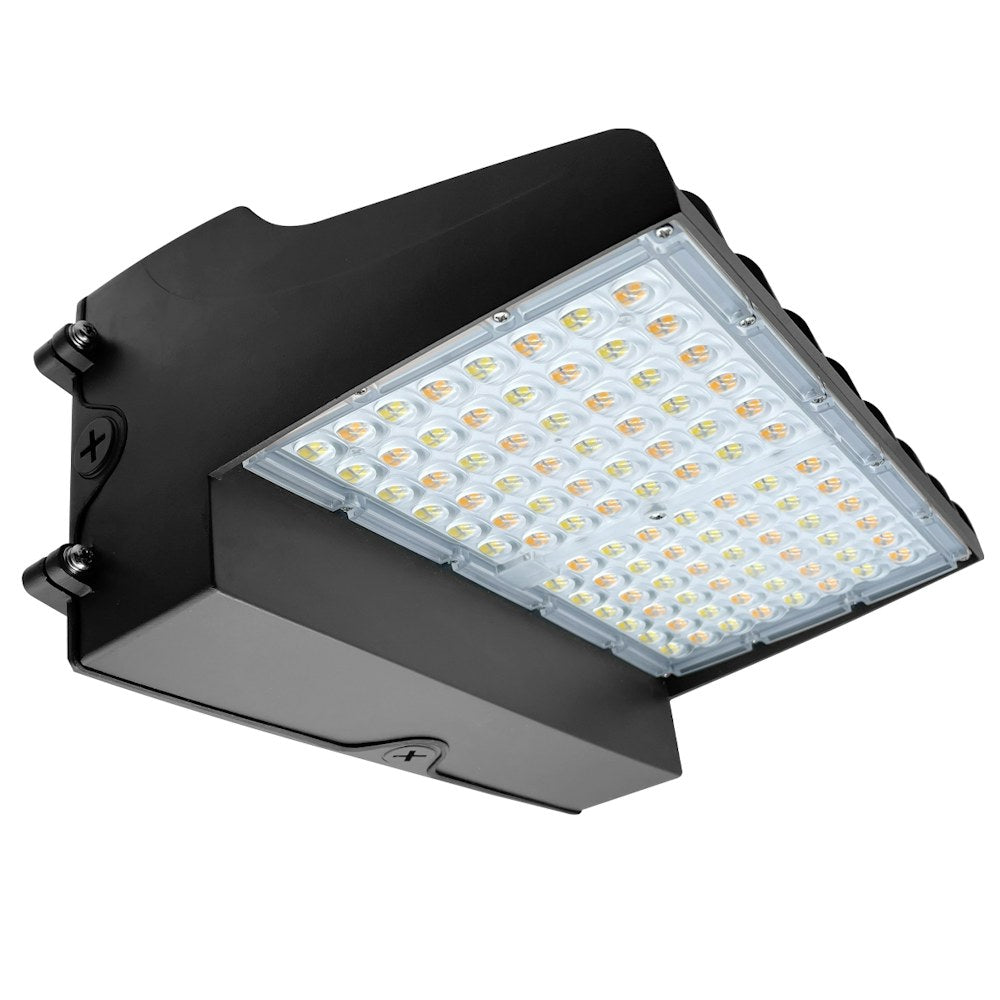

EnVision LED-WPFC-FL-5P120W-TRI-BL-PC – Flat-FC-Line

Product Overview

The EnVision Flat-FC-Line (LED-WPFC-FL-5P120W-TRI-BL-PC) is a commercial LED wall pack with field-selectable wattage and color temperature settings for flexible specification.

This model offers five wattage settings with corresponding lumen outputs, Type IV distribution, a wet-location IP65 rating, and a black finish.

Key Features

• Selectable wattage: 120, 110, 100, 90, 80W
• Selectable color temperature: 3000K / 4000K / 5000K
• Lumen outputs: 17,400 / 15,950 / 14,500 / 13,050 / 11,600 lm
• Input voltage: 120–277V; Dimming: 0–10V
• Wet Location rated IP65 with Type IV distribution
• Finish: Black; Listings: UL and DLC Premium; 5-year warranty

What this wall pack does

A compact, flat-profile wall-mounted LED fixture offered in a single SKU with field-selectable settings for wattage and color temperature.

• Designed for exterior wall-mounted lighting applications
• Black finish

Light output and selectable performance

This SKU includes five selectable wattage levels with the listed lumen outputs corresponding to each setting.

• Wattage: 120 / 110 / 100 / 90 / 80W
• Lumens: 17,400 / 15,950 / 14,500 / 13,050 / 11,600 lm
• Beam distribution: Type IV

Electrical and control information

Electrical input range and dimming method are provided to help determine compatibility with site power and control systems.

• Voltage: 120–277V
• Dimming: 0–10V

Environmental rating and finish

The fixture is rated for wet locations and supplied in a black finish.

• IP rating: Wet Location IP65
• Finish: Black

Certifications and warranty

Listed safety certifications and the stated warranty period are included with the product.

• Listings: UL, DLC Premium
• Warranty: 5 years

Before You Order

Confirm the model number, required quantity, and the desired selectable wattage and color temperature before ordering.

• Model: LED-WPFC-FL-5P120W-TRI-BL-PC
• Verify site voltage (120–277V) and any project listing or rebate requirements

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-WPFC-FL-5P120W-TRI-BL-PC – Flat-FC-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
