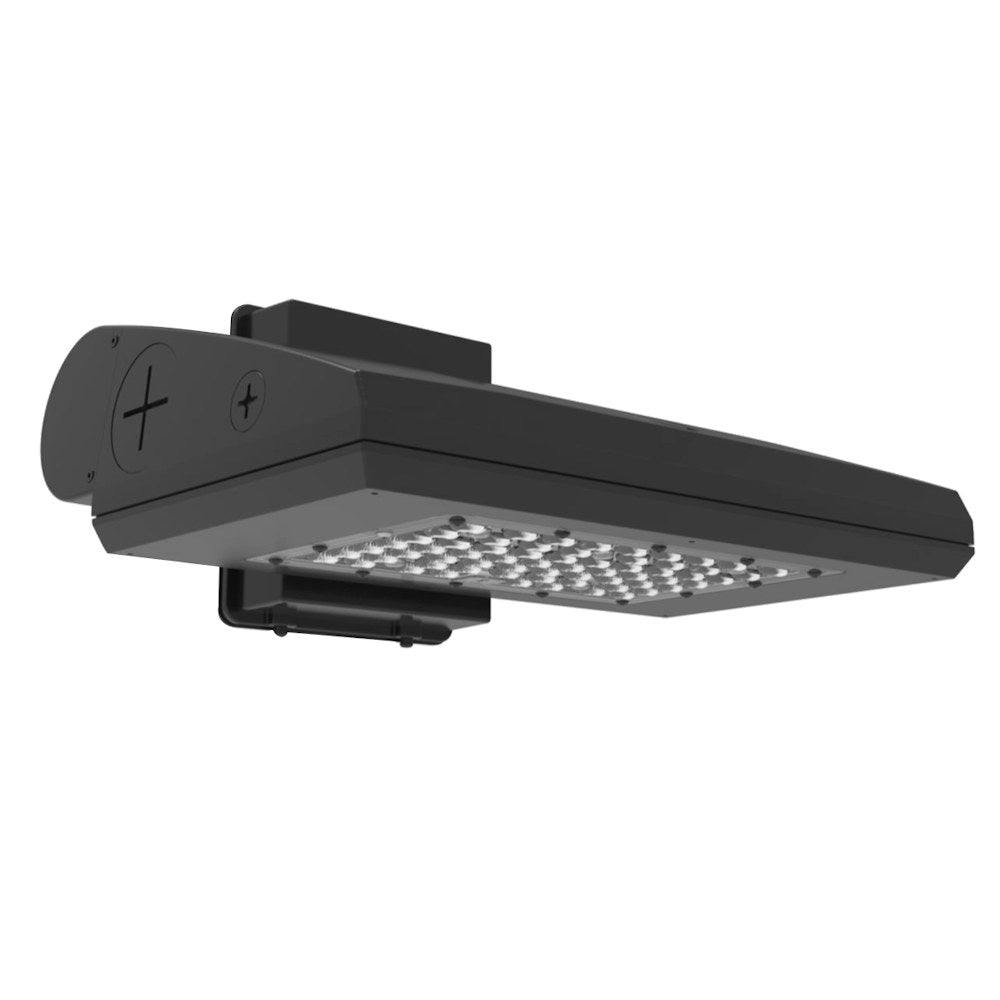

EnVision LED-WPFC-ARC-3P65-TRI-BL-PC – ARCY-Line

Product Overview

The EnVision LED-WPFC-ARC-3P65-TRI-BL-PC (ARCY-Line) is a full cut‑off outdoor wall pack with 3-power and 3-CCT selectable settings. It provides selectable lumen/watt outputs, a die‑cast aluminum housing with powder coat finish (black), and a clear acrylic lens with optics. A photocell (ON/OFF switch) is included.

This model accepts 120–347V input, features a 0–10V dimmable driver, Type III distribution (Type IV or V available as options), and is intended for wet outdoor locations. It is DLC Premium listed and ETL/UL listed with a 5‑year limited warranty.

Key Features

• Selectable wattages: 65 / 50 / 30 W
• Selectable lumen outputs: 8,000 / 6,250 / 4,000 lm
• Selectable CCT: 3000K / 4000K / 5000K
• Voltage: 120–347V (UNV); driver 0–10V dimmable (dim to off)
• Built‑in 6kV surge protection (standard driver option)
• Optics: Type III standard; Type IV or V available as factory options
• Finish: Black powder coat; photocell included (ON/OFF switch)
• Environmental/impact ratings: IP66 (manufacturer spec) and IK08
• Certifications: DLC Premium, ETL/UL listings; RoHS compliant; 5‑year limited warranty

Function and design

Direct-answer: The LED-WPFC-ARC-3P65-TRI-BL-PC is a full cut‑off outdoor wall pack intended for pathway, corridor and parking-area illumination. It has a die‑cast aluminum housing with corrosion‑resistant powder coat, a clear acrylic lens with optics, and an adjustable tilt head.

The luminaire can be mounted faced up or down and includes a tilt adjustment range (–10° down to +20° up) with a screw lock. A photocell with an ON/OFF switch is factory‑installed.

• Die‑cast aluminum housing with powder coat finish
• Clear acrylic lens with integrated optics
• Tilt adjustable from –10° to +20° with locking screw
• Photocell included (ON/OFF switch)

Performance and selectable outputs

Direct-answer: This model offers three power and three CCT settings so a single SKU supports multiple lumen and color options on site.

Selectable settings are changed via the fixture’s Select‑n‑Switch design to choose the appropriate lumen output and color temperature without ordering different SKUs.

• Wattage options: 65, 50, 30 W
• Lumen outputs: 8,000 lm (65W), 6,250 lm (50W), 4,000 lm (30W)
• CCT selectable: 3000K, 4000K, 5000K
• Beam: Type III optic standard; Type IV or V available as factory options

Electrical, controls and surge protection

Direct-answer: The fixture accepts 120–347V and ships with a 0–10V dimmable driver. The standard driver includes a 6kV surge protector and meets the manufacturer's stated driver performance ranges.

Manufacturer driver specifications list THD under 20% (±5% tolerance) and power factor over 0.9 for the UNV driver option; 50/60 Hz operation is supported.

• Input voltage: 120–347V (UNV)
• Dimming: 0–10V dimmable (dim to off)
• Surge protection: built‑in 6kV (standard)
• Driver: THD <20% (±5%); PF >0.9; 50/60 Hz

Mounting, orientation and environmental ratings

Direct-answer: The ARCY‑Line wall pack is suitable for wet outdoor locations and mounts to a junction box. A conduit wall‑mount bracket accessory is available for conduit runs.

The manufacturer lists an operating temperature range and specifies IP66 for wet-location protection and IK08 impact resistance.

• IP rating: Wet location IP66 (manufacturer specification)
• Impact rating: IK08
• Operating temperature range: −40° to 122° F
• Mounting: mounts to junction box; conduit wall mount bracket available as accessory

Key specifications

Direct-answer: Use these specifications for quick verification and project documentation.

Confirm model and finish when specifying; this SKU is the black finish with a factory‑included photocell.

• Model / SKU: LED-WPFC-ARC-3P65-TRI-BL-PC
• Brand: EnVision (ARCY‑Line)
• Watts: 65 / 50 / 30 W (selectable)
• Lumens: 8,000 / 6,250 / 4,000 lm (selectable)
• CCT: 3000K / 4000K / 5000K (selectable)
• Beam: Type III (factory Type IV or V options available)
• Voltage: 120–347V
• Dimming: 0–10V
• IP / Impact: IP66 / IK08
• Certifications: DLC Premium, ETL/UL, RoHS; 5‑year limited warranty
• UPC: 810143712896
• DLC ID: S-V7VVHF

Before You Order

Confirm the exact model number, finish (black), and which selectable wattage/CCT you will use on site. If you require factory‑installed Type IV/V optics, emergency backup, higher surge protection, or sensor/control options, order the corresponding model suffixes or accessories.

• Factory options/add‑ons per manufacturer: Type IV/Type V optics (-T4, -T5), Emergency backup (-EMB), Bi‑level motion/daylight sensors (-BMS, -BMS-BT, -BMS-SIL), 20kV surge protector (SG-20KV-UNV).
• Conduit wall mount bracket accessories: WPFC-ARC-JBOX-BL (black) or WPFC-ARC-JBOX-BZ/WH for other finishes.
