EnVision LED-WPFC-ARC-3P100-TRI-BL-PC – ARCY-Line

Product Overview

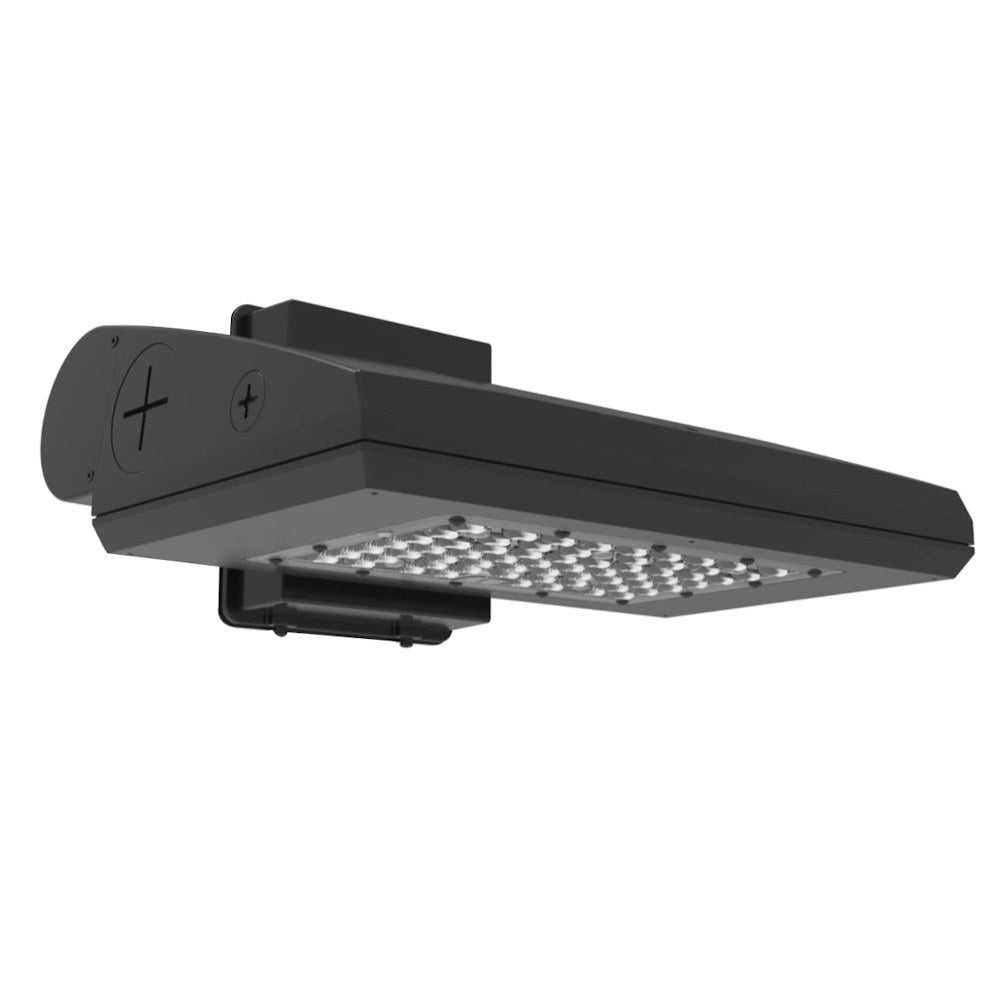

The EnVision LED-WPFC-ARC-3P100-TRI-BL-PC is an ARCY-Line full cut-off LED wall pack with 3-power and 3-CCT Select-n-Switch capability. It provides selectable outputs of 60, 80 or 100 watts with corresponding lumen packages of 7,800, 10,000 or 12,000 lm.

Built for outdoor building illumination, the fixture includes a Type III optic (Type IV or V available as factory options), 0–10V dimmable universal driver (120–347V), a photocell with ON/OFF switch, an adjustable tilt, and a five-year limited warranty.

Key Features

• Selectable wattages: 60 / 80 / 100W
• Selectable CCT: 3000K / 4000K / 5000K (Select-n-Switch)
• Lumen output: 7,800 / 10,000 / 12,000 lm (corresponding to 60/80/100W)
• Voltage: 120–347V with 0–10V dimming
• Outdoor rating: Wet location (manufacturer lists IP66)
• Beam: Type III optic standard; Type IV or Type V available as factory options
• Construction: Die-cast aluminum housing, clear acrylic lens, corrosion-resistant powder coat finish
• Controls & protection: Built-in 6 kV surge protector; photocell included (ON/OFF switch)
• Certifications: ETL listed (USA/CA), DLC Premium, RoHS; 5-year limited warranty

What this fixture does

The LED-WPFC-ARC-3P100-TRI-BL-PC is an outdoor wall pack that lets specifiers select one of three power levels and one of three color temperatures on-site using EnVision’s Select-n-Switch system.

• 3-power selectable: 60W, 80W, 100W
• 3-CCT selectable: 3000K, 4000K, 5000K
• Photocell included with ON/OFF switch

Output, lumen packages and distribution

The fixture provides lumen packages of 7,800 lm (60W), 10,000 lm (80W) and 12,000 lm (100W). The standard factory optic is Type III; factory-configured Type IV or Type V optics are available as options.

• Lumen packages: 7,800 / 10,000 / 12,000 lm
• Standard optic: Type III (factory options: Type IV or V)
• Color rendering: CRI >80; R9 >50

Voltage, driver attributes and dimming

Equipped with a universal driver for 120–347V service and compatible with 0–10V dimming (dim-to-off). The manufacturer specifies driver targets including THD <20% (±5%) and power factor >0.9. A 6 kV surge protector is factory built in.

• Input: 120–347V (UNV)
• Dimming: 0–10V dimmable
• Surge protection: built-in 6 kV

Durability, mounting and ratings

The ARCY-Line wall pack is die-cast aluminum with a corrosion-resistant powder coat and a clear acrylic lens. It is rated for wet locations (manufacturer documentation lists IP66) and has an IK08 impact rating. The fixture includes an adjustable tilt (−10° down to 20° up) and can be mounted faced up or down; it mounts to a junction box and has an optional conduit wall mount bracket.

• Housing: die-cast aluminum with corrosion-resistant powder coat
• Lens: clear acrylic with optics
• Environmental rating: Wet location (IP66), Impact rating IK08
• Operating temperature: −40° to 122° F
• Mounting: junction box mount; optional conduit wall bracket available

Listings, compliance and warranty

This model family is ETL listed for the U.S. and Canada and has DLC Premium listings for the product family. It is RoHS compliant and listed as approved for California Title 24. The ARCY-Line comes with a five-year limited warranty.

• Certifications: ETL Listed (USA/CA), DLC Premium, RoHS
• Energy code: Approved for CA Title 24
• Warranty: 5-year limited manufacturer warranty
• DLC IDs: manufacturer provides DLC Premium IDs for product families

Before You Order

Confirm model, desired lumen/CCT selection and any factory options before ordering.

• Verify desired lumen level and CCT (selectable on-site via Select-n-Switch)
• Specify factory options if you need Type IV/V optics, 20 kV surge protector, embedded emergency backup (EMB), or integrated sensors
• Confirm finish (standard quick-ship finishes include bronze, black, white; other colors are custom)
