EnVision LED-WPFC-5P80-TRI-BZ-HV-PC – FC-Line

Product Overview

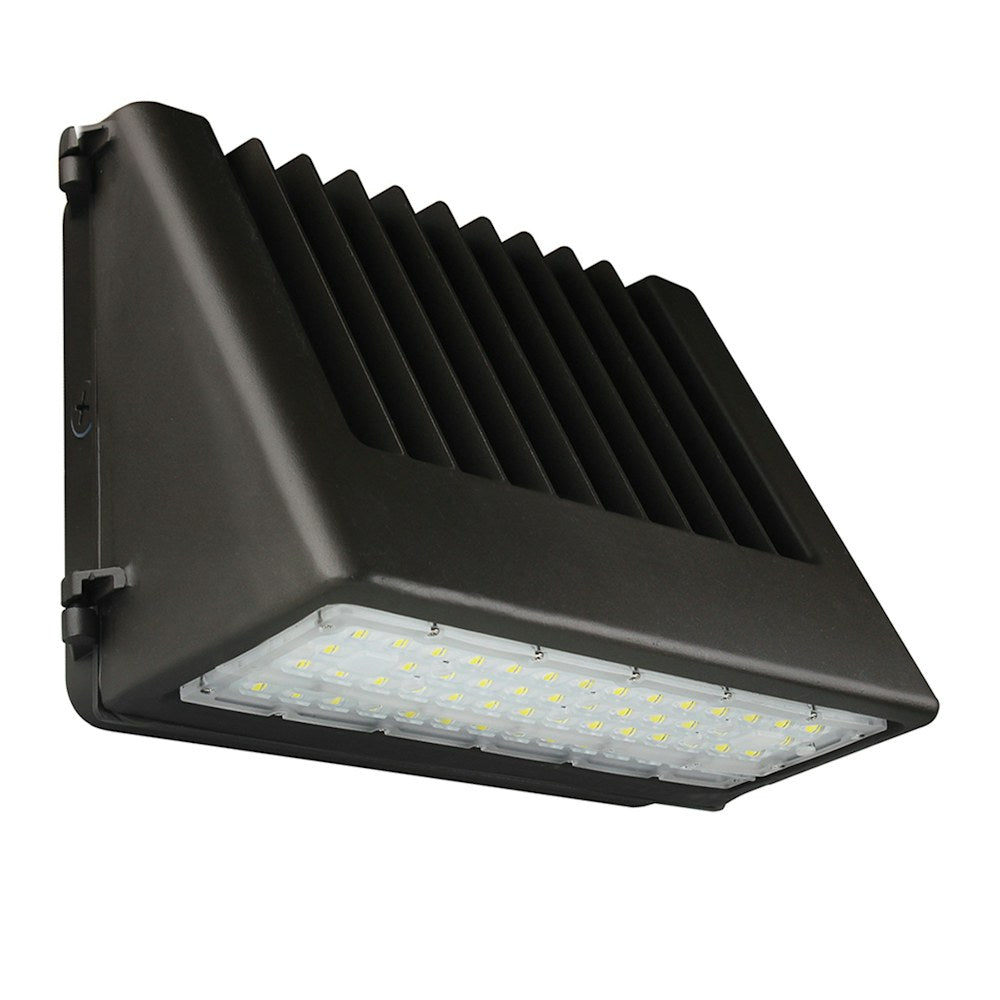

The EnVision LED-WPFC-5P80-TRI-BZ-HV-PC is a full-cutoff outdoor wall pack from EnVision's FC-Line featuring 3-CCT and 5-power selectable settings for adjustable light output and color temperature.

This bronze-finish HV variant includes a photocell, is rated IP65 for wet locations, offers Type III distribution by default, and is UL listed and DLC Premium listed with a 5-year limited warranty.

Key Features

• Selectable wattages: 16 / 32 / 48 / 64 / 80 W (Select-n-Switch)
• Selectable CCT: 3000K / 4000K / 5000K
• Lumen output (corresponding): 2,320 / 4,640 / 6,960 / 9,280 / 11,600 lm
• Reported efficacy: 145 lm/W (per manufacturer table)
• Voltage: 277–480V (HV) with 0–10V dimming driver
• Photocell included (PC) with quick-disconnect
• Wet-location rating IP65 and IK08 impact rating; full cut-off dark-sky compliant
• DLC Premium listed (5P80 family ID: PLK6KOZFXY7O), UL listed, 5-year limited warranty

Function & purpose

Direct-answer: This FC-Line fixture is a full-cutoff outdoor wall pack intended for area and perimeter lighting where controlled forward distribution and reduced uplight are desired.

Manufacturer guidance lists applications including walkways, parking areas, outdoor corridors, hospitality and multi-family exteriors.

• Full-cutoff design to limit uplight
• Type III optic standard for area and roadway-adjacent illumination
• Photocell included for dusk-to-dawn operation

Performance and light output

Direct-answer: The LED-WPFC-5P80-TRI provides five selectable lumen/wattage steps and three selectable color temperatures to match site requirements without changing fixtures.

CRI is greater than 80 and manufacturer data lists R9 >50.

• Selectable wattage / lumen pairs: 16 W / 2,320 lm; 32 W / 4,640 lm; 48 W / 6,960 lm; 64 W / 9,280 lm; 80 W / 11,600 lm
• Efficacy listed in manufacturer table: 145 lm/W
• Beam: Type III standard; Type II and Type IV optics are available as alternate options

Electrical and control options

Direct-answer: This SKU is the HV variant configured for 277–480V input and uses a 0–10V dimmable driver.

Manufacturer documentation indicates a built-in 6 kV surge protector on driver options and includes THD <20% and PF >0.9 as typical driver characteristics.

• Voltage: 277–480V (HV model)
• Dimming: 0–10V dimmable driver
• Surge protection: built-in 6 kV (manufacturer spec)
• Control compatibility: documented to work with EnVision control ecosystems (ENVISIONLS and SILVAIR Bluetooth mesh) via available sensor/gateway accessories

Mounting and installation features

Direct-answer: The fixture features a die-cast aluminum housing with corrosion-resistant powder coat finish and multiple 1/2" knockouts for wiring flexibility.

A clear acrylic lens with optics and a waterproof gasket provide the stated IP65 wet-location rating; the photocell is included with a quick-disconnect.

• Housing: die-cast aluminum with bronze powder coat (other finishes available)
• Knockouts: five 1/2" openings for conduit/wiring
• Lens: clear acrylic with optics; waterproof gasket supports IP65 rating
• Operating temperature range: -40°F to 122°F (manufacturer spec)

Certifications and warranty

Direct-answer: The LED-WPFC-5P80-TRI-BZ-HV-PC is UL listed for the U.S. and Canada, DLC Premium listed (5P80 family ID PLK6KOZFXY7O) and carries a 5-year limited warranty.

Additional certifications and compliances documented by the manufacturer include RoHS and California Title 24 approval for applicable models.

• Listings: UL listed (US & CA), DLC Premium
• DLC ID (5P80 family): PLK6KOZFXY7O
• Warranty: 5-year limited warranty
• Other: IK08 impact rating; RoHS compliant; CA Title 24 approved

Before You Order

Confirm model number, voltage (this SKU is the HV 277–480V variant) and desired finish or accessory options before ordering.

• If 120–277V operation is required, choose the corresponding 120–277V variant.
• Alternate optics (Type II/IV), finishes, sensors and emergency backup options are offered — specify at order entry.
