EnVision LED-WPFC-5P150-TRI-BL-PC – FC-Line

Product Overview

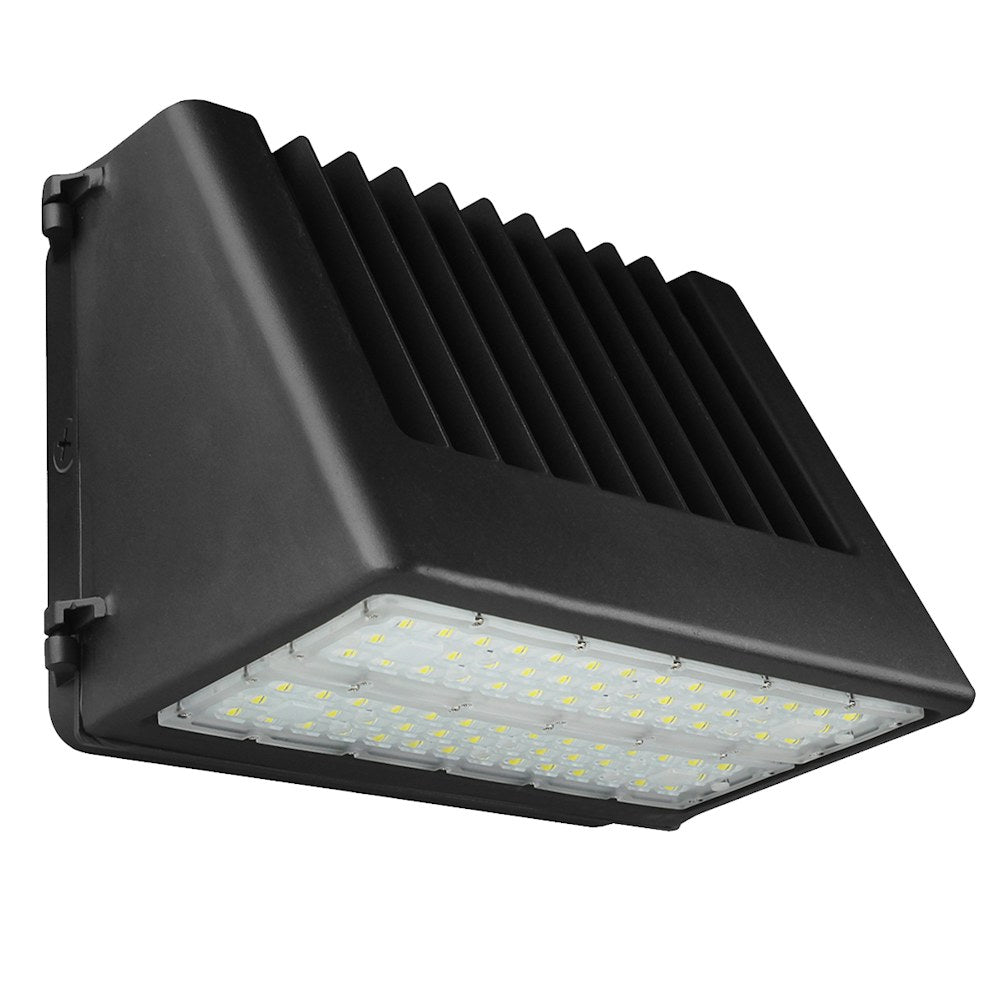

The EnVision LED-WPFC-5P150-TRI-BL-PC is an FC-Line full cut-off wall pack with 3‑CCT and 5‑power selectable settings. It includes a photocell (PC) and is finished in black powder coat.

Intended for outdoor perimeter, walkway, parking and corridor applications, this model provides Type III distribution, 0–10V dimming compatibility (UNV driver), DLC Premium listing for the 5P150 configuration, and a 5‑year limited warranty.

Key Features

• Selectable wattages: 30 / 60 / 90 / 120 / 150 W
• Selectable CCT: 3000K, 4000K, 5000K (3‑CCT)
• Maximum lumen output: 21,750 lm (at 150W, per manufacturer table)
• Voltage: 120–277V with 0–10V dimmable driver (UNV option shown)
• Wet-location rated IP65 and IK08 impact rating
• Full cut-off (dark-sky compliant) with Type III optical distribution (Type II and IV are available as options in the series)
• Photocell included with quick-disconnect (PC)
• DLC Premium listed for the 5P150 configuration (ID: PLBQM8B8ISJS), UL Listed, RoHS compliant
• Average L70 life: 70,000 hours; CRI >80; R9 >50
• Die-cast aluminum housing with corrosion-resistant powder coat finish; five 1/2" knockouts for conduit access

What this fixture does

The LED-WPFC-5P150-TRI-BL-PC is a full cut-off exterior wall pack designed for perimeter, walkway, parking and corridor lighting. It provides directional Type III distribution and selectable power and CCT settings to match different site needs.

Performance and output

This SKU offers five selectable wattages with corresponding lumen outputs so you can scale illumination and energy use according to the application.

• Selectable wattages: 30 / 60 / 90 / 120 / 150 W
• Selectable lumen outputs: 4,350 / 8,700 / 13,050 / 17,400 / 21,750 lm (respectively, per manufacturer table)
• Published efficacy for the family: 145 lm/W (as shown in manufacturer model table)
• Color rendering: CRI >80 with R9 >50

Electrical and controls

The documented UNV driver option for this family supports 120–277V with 0–10V dimming. The unit ships with a photocell (PC). The series offers surge protection on its standard driver and additional driver/voltage options in the product family.

• Input voltage: 120–277V (UNV shown for this SKU)
• Dimming: 0–10V dimmable driver
• Photocell: included (PC) with quick-disconnect
• Surge protection: built-in 6 kV on standard driver (higher surge options available in series)

Environment, ratings and certifications

This wall pack is rated for outdoor wet locations and carries industry listings relevant to commercial installations.

• IP Rating: IP65 (wet location)
• Impact Rating: IK08
• Listings: UL Listed (US & CA), DLC Premium (5P150 ID: PLBQM8B8ISJS), RoHS compliant
• Operating ambient range: -40°F to 122°F
• Lumens maintenance: L70 at 70,000 hours
• Warranty: 5‑year limited warranty

Mounting and installation features

The fixture is built on a die-cast aluminum housing with a corrosion-resistant powder coat and includes design elements to simplify installation and wiring.

• Housing: die-cast aluminum with black powder coat finish
• Lens: clear acrylic with optics
• Conduit access: five 1/2" knockouts (one on each side)
• Optics: Type III standard; Type II and IV optics available as series options
• Control and sensor options: series supports a range of sensors and Bluetooth control options (refer to configuration options for compatibility)

Before You Order

Confirm the exact model, voltage and options required for your project; this listing describes the LED-WPFC-5P150-TRI-BL-PC configured with 120–277V, photocell (PC) and black finish.

• If you require 277–480V, order the HV variant from the same family.
• Optional optics, sensors, Bluetooth controls and emergency backup options are available in the product family—specify required accessories or factory options when ordering.
• Verify the DLC ID (PLBQM8B8ISJS) against project rebate or compliance requirements.
