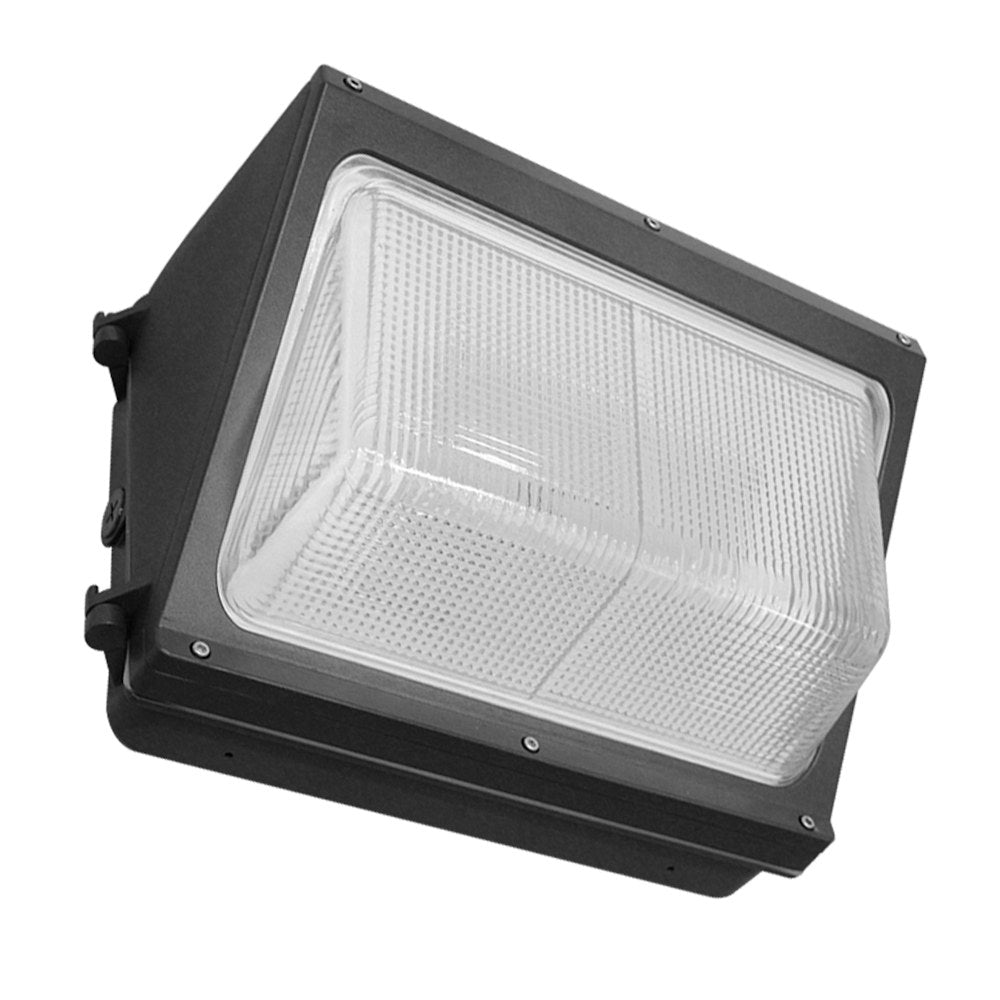

EnVision LED-WPFA-3P60-TRI-BL-CUNV-PC – OPTIC-Line

Product Overview

The EnVision LED-WPFA-3P60-TRI-BL-CUNV-PC is a traditional OPTIC-Line wall pack with Select-n-Switch 3-power and 3-CCT selectable settings and an integrated photocell.

It provides selectable lumen output and color temperature options, an IP wet-location rating, and is UL listed and DLC Premium listed with a 5-year limited warranty.

Key Features

• Selectable wattages: 60 / 50 / 40 W
• Selectable lumen outputs: 8,700 / 7,250 / 5,800 lm
• Selectable color temperatures: 3000K / 4000K / 5000K (3-CCT)
• Input voltage: 120–347V (CUNV) with 0–10V dimmable driver
• Photocell included (ON/OFF) with quick-disconnect
• Wet-location rating and IK08 impact rating
• Die-cast aluminum housing with corrosion-resistant powder coat (Black finish)
• DLC Premium listed (DLC ID S-TN3G7Y for 3P60), UL listed (USA & CA), RoHS compliant; 5-year limited warranty

What this fixture does

This traditional-style wall pack is intended for exterior area illumination. It provides full-throw distribution and is specified for applications such as walkways, parking areas, outdoor corridors, hospitality and multi-family exteriors.

Light output and selectable performance

EnVision’s Select-n-Switch lets you choose among three wattage/lumen levels and three CCT settings. Fixtures ship preset to 5000K at the maximum wattage.

• Wattage: selectable 60 W, 50 W, 40 W
• Lumens: 8,700 lm (60 W), 7,250 lm (50 W), 5,800 lm (40 W)
• CCT: selectable 3000K, 4000K, 5000K
• Beam: full-throw distribution; optic selectable options (narrow/medium/wide) are available within the product family

Voltage, driver and controls

This SKU uses the CUNV driver (120–347V) and supports 0–10V dimming. A photocell for ON/OFF operation is included and features a quick-disconnect.

• Driver: CUNV (120–347V), 0–10V dimmable
• Photocell: included (ON/OFF) with quick-disconnect
• Built-in surge protection: 6 kV (standard in product family)
• Power characteristics from manufacturer data: THD <20% (±5% tolerance), PF >0.9, 50/60 Hz

Environmental ratings and construction

The fixture is constructed with a die-cast aluminum housing and corrosion-resistant powder coat and includes a glass lens. It is rated for wet locations and has an IK08 impact rating.

• IP Rating: Wet Location (manufacturer lists wet location; IP65 commonly used)
• Impact rating: IK08
• Lens: glass
• Operating temperature range: -40° to 133° F
• Finish: Black powder coat

Mounting and installation features

The LED-WPFA series follows traditional wall-pack sizing and includes features to simplify wiring and installation.

• Five 1/2" knockouts (including one on each side) for wiring access
• Photocell included with quick-disconnect
• Ships preset to 5000K at maximum wattage; use Select-n-Switch on site to change settings

Before You Order

Confirm the exact SKU, finish and driver option before ordering. This SKU includes a photocell and ships preset to 5000K at maximum wattage.

• Verify required lumen/wattage and CCT selection on site using the fixture’s Select-n-Switch controls.
• For alternative voltages, sensor, emergency backup, or surge protector options, choose the matching model variant or accessory per EnVision’s configuration guide.
