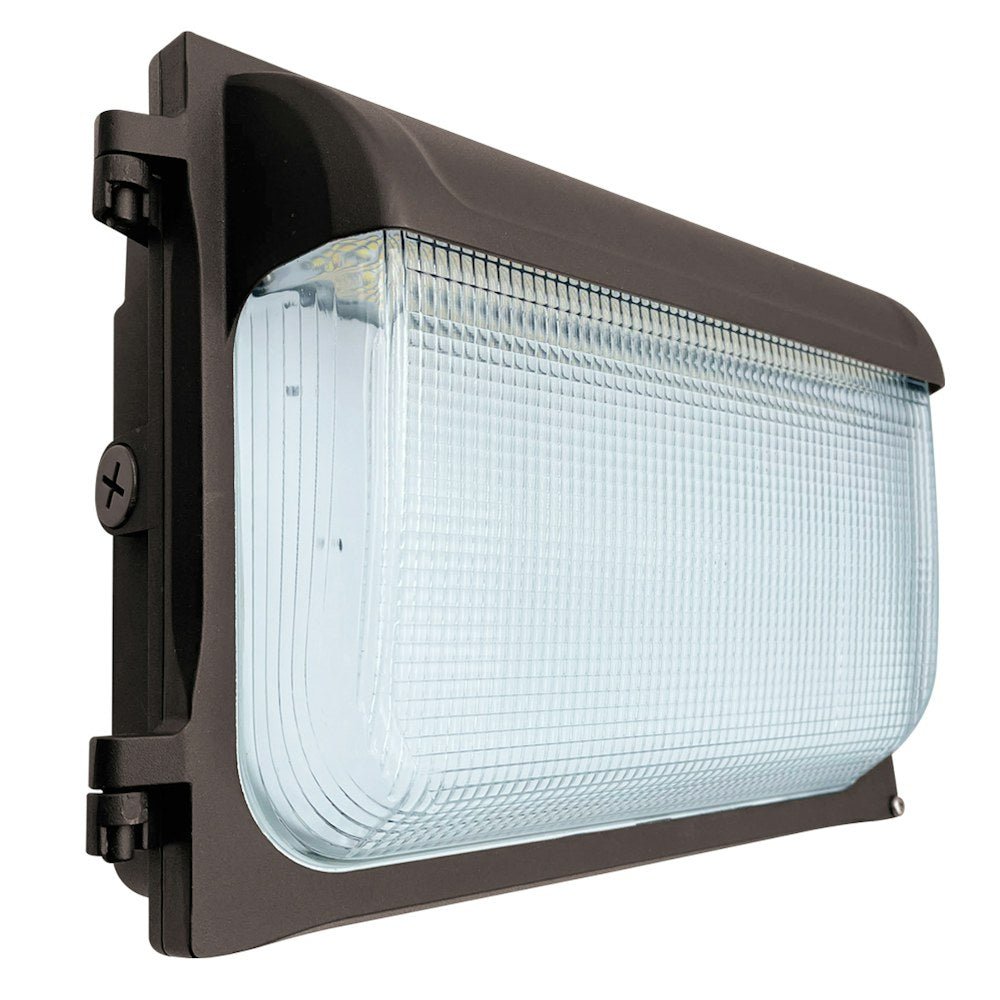

EnVision LED-WPF-SL-3P60-TRI-BZ-HV-PC – SL-Line

Product Overview

The EnVision LED-WPF-SL-3P60-TRI-BZ-HV-PC is a slim SL-Line wall pack offering three field-selectable power levels (60/40/30W) with matching lumen outputs and three selectable color temperatures (3000K/4000K/5000K).

This HV model accepts 277–480V input, includes a photocell, is 0–10V dimmable, and is rated for wet locations with a 5-year limited warranty per manufacturer documentation.

Key Features

• Three selectable power settings: 60W / 40W / 30W
• Lumen outputs: 7,800 / 5,200 / 3,900 lm (corresponding to 60/40/30W)
• Selectable CCT: 3000K, 4000K, 5000K
• HV driver: 277–480V with 0–10V dimming
• Wet-location rated (IP65), IK08 impact rating, Type IV distribution
• Photocell included with quick-disconnect
• Die-cast aluminum housing with corrosion-resistant powder coat — standard bronze finish
• UL Listed (US/CA), DLC Listed (DLC Premium eligible as noted), RoHS compliant, CA Title 24 approved; 5-year limited warranty

What this wall pack is for

Manufacturer documentation lists typical applications including walkways, pathways, parking lots, hospitality, multi-family properties, outdoor corridors, and general commercial/industrial exteriors.

• Slim profile for wall mounting where a compact exterior fixture is preferred
• Type IV distribution suitable for perimeter, walkway, and similar exterior uses as specified by the manufacturer

Light output and selectable options

Field-selectable power and CCT let you choose light level and color on site to fit project requirements.

• Power and lumen options: 60W = 7,800 lm; 40W = 5,200 lm; 30W = 3,900 lm
• Selectable color temperatures: 3000K, 4000K, 5000K
• Distribution: Type IV; manufacturer lists BUG ratings for the 3P60 configuration as B3-U3-G5

Voltage, driver and dimming

The HV variant is specified for 277–480V input and uses a 0–10V dimmable driver. Manufacturer-specified driver performance metrics are provided in the product literature.

• Input voltage: 277–480V (HV model)
• Dimming: 0–10V
• Driver characteristics listed by the manufacturer: THD <20% (±5% tolerance), power factor >0.9, 50/60 Hz
• Built-in 6 kV surge protection is listed as standard in the documentation

Ingress protection and durability

The fixture is designed for outdoor exposure with manufacturer-stated protections and materials.

• IP Rating: Wet Location (IP65)
• Impact rating: IK08
• Housing: Die-cast aluminum with corrosion-resistant powder coat (bronze standard)
• Lens: Glass lens
• Operating temperature: -4°F to 122°F
• Installation features: five 1/2" knockouts; photocell included with quick-disconnect

Certifications and warranty

Listings and warranty are documented by the manufacturer for this series.

• UL Listed for US and Canada, DLC Listed (DLC Premium eligibility noted in manufacturer materials), RoHS compliant, CA Title 24 approved
• 5-year limited warranty (manufacturer)
• Meets FCC Part 15 (CFR 47) requirements per manufacturer documentation

Before You Order

Verify the SKU, voltage (this SKU is the HV 277–480V version with photocell), finish, and quantity before ordering.

• This SKU includes a photocell (PC) and is the HV (277–480V) variant; for 120–277V see the UNV model numbers.
• Optional accessories such as motion/bi-level sensors, shields, and remote controls are ordered separately per manufacturer documentation.
