EnVision LED-WPBH-3P20-TRI-BL-PC – BULK-Line - Oval Checker

Product Overview

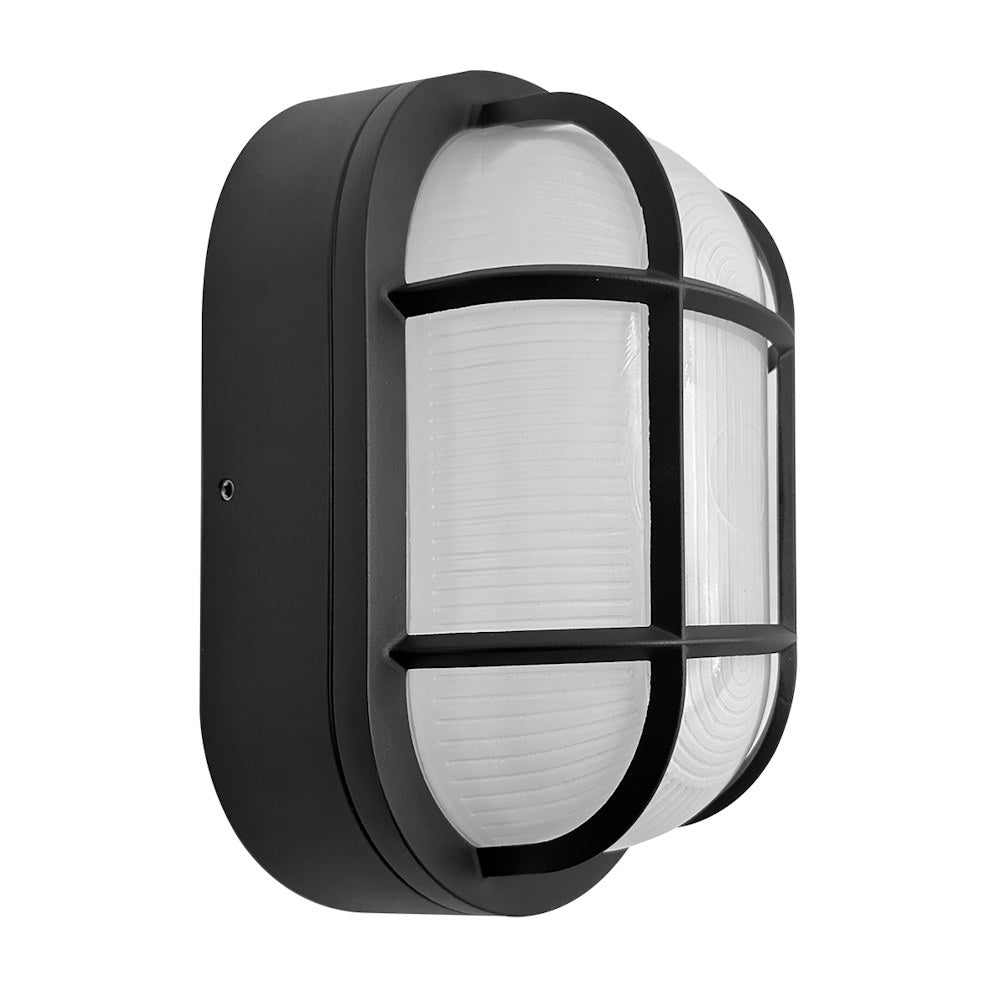

The EnVision LED-WPBH-3P20-TRI-BL-PC is an outdoor LED wall pack in a black finish with field-selectable wattage and color temperature. It offers three output settings (20/16/12W — 1700/1360/1020 lm) and three CCT options (3000K/4000K/5000K).

The fixture accepts 120–277V input, supports 0–10V dimming, includes a selectable photocell option, and carries a 5‑year limited warranty.

Key Features

• Selectable wattage: 20 / 16 / 12W with corresponding lumen outputs of 1700 / 1360 / 1020 lm
• Selectable CCT: 3000K / 4000K / 5000K
• Universal input: 120–277V with 0–10V dimming
• Wet-location rating (manufacturer lists Wet Location)
• Die‑cast aluminum housing with corrosion‑resistant powder coat and ribbed acrylic lens
• Built‑in 6 kV surge protector; THD <20% (±5% tolerance); power factor >0.9 (manufacturer data)
• Impact rating IK08 (manufacturer data); beam angle ~100° per manufacturer
• ETL listed for USA/CA, FCC listed, 5‑year limited warranty

What this fixture does

This wall pack is intended for outdoor building and area illumination. The compact oval housing provides an outward distribution (manufacturer lists a 100° beam angle) for perimeter, walkway, and corridor lighting in commercial and multi‑family applications.

• Typical applications per manufacturer: walkways, pathways, parking lot perimeters, hospitality, multi‑family, and outdoor corridors
• Beam: approximately 100° nominal distribution

Light output and selectable settings

Field-selectable wattage and color temperature allow one SKU to be configured on site for the required output and CCT.

• Wattage / Lumens: 20W = 1700 lm; 16W = 1360 lm; 12W = 1020 lm
• CCT: selectable 3000K, 4000K, 5000K
• Color rendering: CRI >80; R9 >50 (manufacturer data)

Voltage, dimming and electrical characteristics

The driver supports universal voltage and common commercial driver features noted by the manufacturer.

• Input voltage: 120–277V (UNV)
• Dimming: 0–10V dimmable
• Driver notes: built‑in 6 kV surge protector; THD <20% (±5% tolerance); power factor >0.9; 50/60 Hz

Construction, environmental ratings and lifespan

Built for outdoor use with materials and ratings provided by the manufacturer.

• Housing: die‑cast aluminum with corrosion‑resistant powder coat
• Lens: ribbed acrylic
• IP Rating: Wet Location (manufacturer lists Wet Location)
• Impact Rating: IK08
• Rated operating temperature: -40°F to 113°F
• LED life: L70 = 70,000 hours (manufacturer rating)

Mounting and installation

The fixture mounts to a standard junction box using a backplate; the photocell is accessible on the product where specified.

• Mounting: backplate mounts to junction box (manufacturer installation note)
• Controls: selectable photocell option on this SKU (PC)
• Include appropriate wiring and junction box per local code and installer practice

Before You Order

Confirm the model, required quantity, and desired finish/options before ordering.

• This SKU is the black finish with selectable photocell (PC).
• Series is offered in other finishes (bronze, white); confirm finish code when ordering.
• Verify junction box location and mounting requirements prior to installation.
