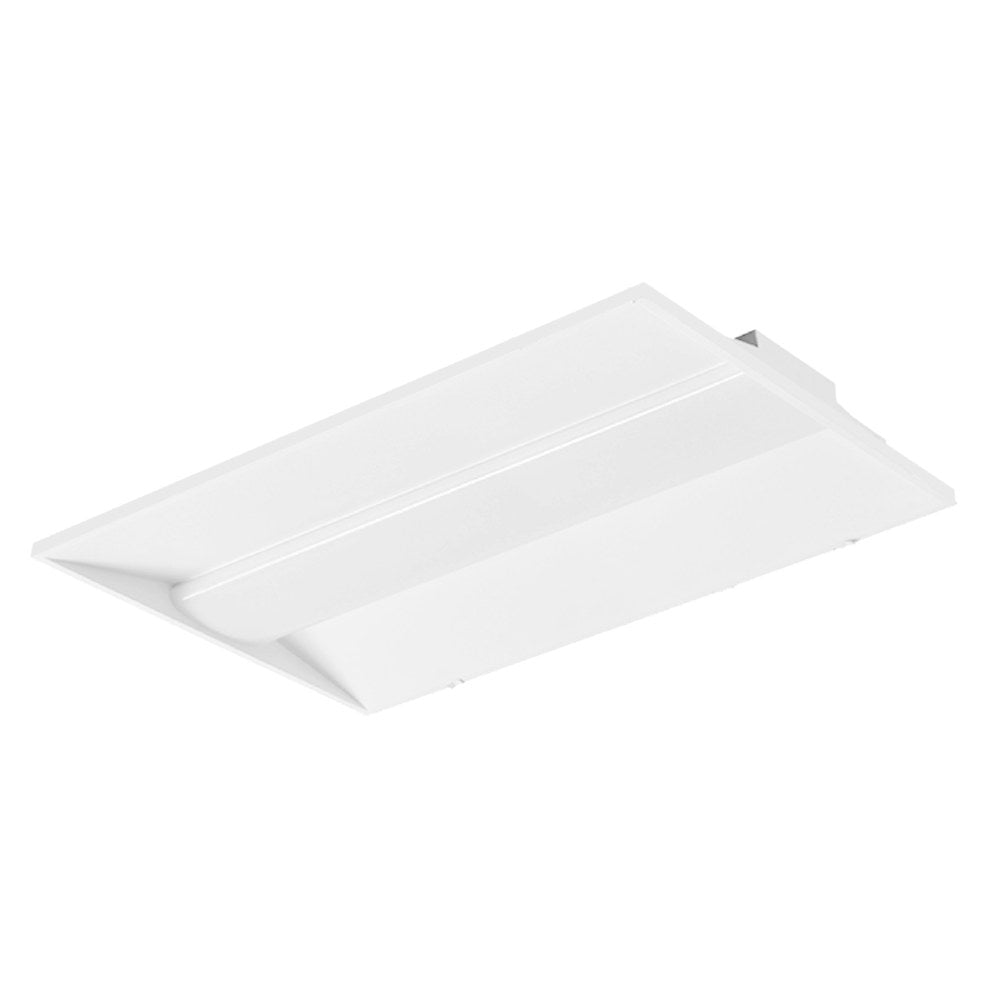

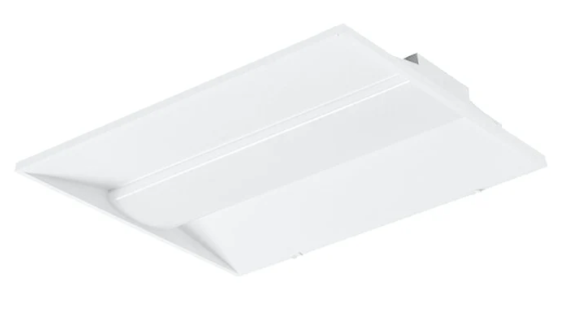

• EnVision LED-CBT-2X4-5P50-5CCT LED Troffer
1 1

EnVision

EnVision LED-CBT-2X4-5P50-5CCT – C-Line

EnVision LED-CBT-2X4-5P50-5CCT – C-Line

$98.00
$98.00
Sale Sold out

LED-CBT-2X4-5P50-5CCT
Request a Quote
Product Overview

The EnVision LED-CBT-2X4-5P50-5CCT is a troffer rated for up to 6,250 lumens with selectable 50/40/30/25/20W output, operating on 120-277V. A dependable choice for commercial interiors where consistent light and clean specs matter.

Key Features
  • Selectable power: 50/40/30/25/20W set at install, one SKU covering multiple loads
  • Output: up to 6,250 lumens matching the selected wattage
  • Field-selectable color: 3000K-5000K (4 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 2 per box
Technical Specifications
Brand EnVision
Wattage 50/40/30/25/20W
Lumens 6,250/5,625/5,000/4,375/3,750
Color Temperature 3000K-5000K (4 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Damp Location
Finish White
Certification UL/ DLC Prem/ 5 Yrs
Box Quantity 2
UPC 810143712476
Applications

Suited to commercial interiors, suspended-grid retrofits, and drop-ceiling office grids.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

The LED-CBT-2X4-5P50-5CCT is a practical pick for installers who want verified specs and fast sourcing.
