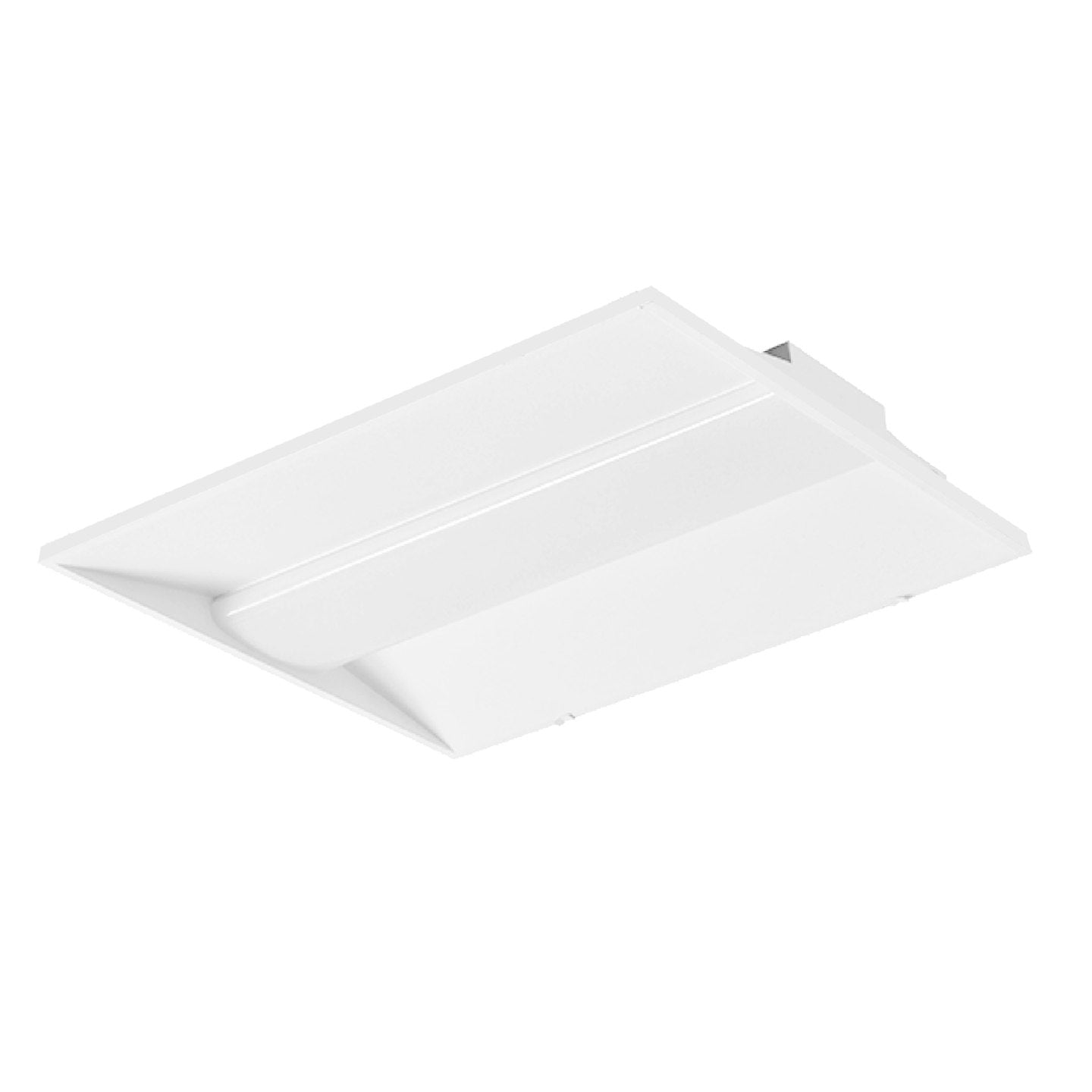

EnVision LED-CBT-2X2-5P40-5CCT-EMB – C-Line EMB

Product Overview

The EnVision LED-CBT-2X2-5P40-5CCT-EMB is a white LED troffer with selectable wattage and color temperature. Output ranges from 2,500 to 5,000 lumens, depending on the selected wattage.

Described for education, healthcare, commercial interiors, and suspended-grid retrofits, this damp-location-rated fixture operates on 120–277V and supports 0–10V dimming.

Key Features

• Selectable power: 20W, 25W, 30W, 35W, or 40W, with corresponding output from 2,500 to 5,000 lumens.
• Field-selectable color temperature: 3000K–5000K (4 CCT).
• 0–10V dimming, 110° beam angle, and CRI >80.
• UL and DLC listed; five-year warranty; packaged two per box.

Selectable Wattage and Light Output

This EnVision troffer offers five wattage settings, with lumen output paired to the selected setting.

• 40W: 5,000 lumens
• 35W: 4,375 lumens
• 30W: 3,750 lumens
• 25W: 3,125 lumens
• 20W: 2,500 lumens

Color Temperature and Dimming

The fixture has field-selectable color temperature of 3000K–5000K (4 CCT) and uses 0–10V dimming. Its listed beam angle is 110°, and its CRI is greater than 80.

Applications and Location Rating

The product is described for education and healthcare, commercial interiors, and suspended-grid retrofits. It is rated for damp locations.

• White finish
• 120–277V
• UL and DLC listed

Before You Order

Packaged two per box; confirm the quantity needed for your order.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-CBT-2X2-5P40-5CCT-EMB – C-Line EMB. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
