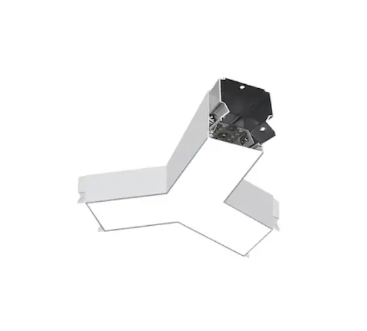

EnVision LED-ALIN2-Y-D-5CCT-WH – Y-Shape Connector Downlight

Product Overview

The EnVision LED-ALIN2-Y-D-5CCT-WH is a downlight with a Y‑shape connector design and field‑selectable wattage and color temperature to simplify specification for retail and office fit-outs and other dry‑location ceilings.

One SKU covers three power levels (7/5/3.5W) and five correlated color temperatures (2700–5000K). The fixture has a 110° beam angle, supports 0–10V dimming, and is ETL listed with a 5‑year warranty.

Key Features

• Field-selectable power: 7W, 5W or 3.5W
• Corresponding lumen outputs: 840 lm / 600 lm / 420 lm
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K (5 CCT)
• Wide 110° beam angle
• Dimming: 0–10V compatible
• Input voltage: 120–277V
• Dry‑location rating; white finish
• ETL listed; 5‑year warranty
• Packaged quantity: 20 per box

What this fixture does

The LED-ALIN2-Y-D-5CCT-WH provides general downlight illumination with field‑selectable lumen output and color temperature in a single SKU, intended for dry‑location ceilings.

• Intended use: general area downlighting in dry locations
• Common applications: retail fit‑outs, office ceilings, corridors, hospitality and residential ceilings

Light output and color options

Wattage and CCT are selectable on the fixture so a single model can match different lumen and appearance requirements without reordering.

• Wattage (field‑selectable): 7W / 5W / 3.5W
• Lumen outputs (corresponding): 840 lm / 600 lm / 420 lm
• CCT: five selectable settings between 2700K and 5000K
• Color rendering: CRI >80

Electrical and dimming compatibility

The fixture operates on a broad 120–277V input and is compatible with 0–10V dimming controls.

• Input voltage: 120–277V
• Dimming: 0–10V

Installation and configuration

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches on the fixture prior to final mounting.

• Confirm ceiling cutout or grid compatibility
• Set wattage and CCT switches during installation
• Packaged quantity: 20 units per box

Before You Order

Verify the ceiling cutout or grid size matches the housing and confirm 0–10V compatibility with your dimming controls.

• Confirm ceiling cutout or grid compatibility
• Verify 0–10V dimming compatibility

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-Y-D-5CCT-WH – Y-Shape Connector Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
