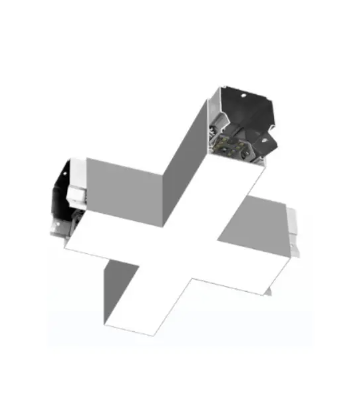

EnVision LED-ALIN2-X-D-5CCT-WH-TML – X-Shape Connector Downlight

Product Overview

The EnVision LED-ALIN2-X-D-5CCT-WH-TML is a recessed downlight designed for hospitality and residential ceilings and common areas. It offers field-selectable wattage and color temperature so one SKU covers multiple lighting needs.

This fixture operates on 120–277V, is 0–10V dimmable, and provides up to 1,200 lumens (depending on selected wattage). The white finish and wide 110° beam angle deliver even, unobtrusive illumination for dry-location applications.

Key Features

• Field-selectable wattage: 10W / 7.5W / 5W (set at install)
• Selectable lumen outputs: 1,200 / 900 / 600 lumens corresponding to wattage
• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K (5 CCT)
• Wide 110° beam angle for even coverage
• 0–10V dimming compatibility
• Color rendering index CRI > 80
• Rated for dry locations; white finish
• ETL listed and backed by a 5-year warranty
• Packaged 20 per box

Purpose and typical applications

This recessed downlight is intended for general illumination in hospitality and residential ceilings, corridors, and common areas where a clean, unobtrusive fixture is required.

• Common uses: guest rooms, corridors, lobbies, living spaces
• Designed for dry-location installations

Performance and light output

The fixture provides selectable lumen outputs tied to the installed wattage for flexible performance across spaces that need different light levels from a single SKU.

• Wattage options (set at install): 10W, 7.5W, 5W
• Lumen outputs: 1,200 lm (10W), 900 lm (7.5W), 600 lm (5W)
• Beam angle: 110° for broad, even distribution
• Color rendering: CRI > 80
• Field-selectable color temperature: 2700K, 3000K, 3500K, 4000K, 5000K

Electrical requirements and controls

Confirm compatibility with site power and control systems. The fixture supports typical commercial voltage ranges and low-voltage control for dimming.

• Input voltage: 120–277V
• Dimming: 0–10V control

Installation and configuration notes

This model includes installer-set switches for both wattage and CCT. Set the desired power level and color temperature before final mounting. Verify ceiling cutout or housing compatibility prior to installation.

• Set wattage and CCT switches at the fixture during installation
• Confirm ceiling cutout/grid size matches the housing before ordering

Before You Order

Confirm the model number and quantity required before ordering. Verify the ceiling cutout or housing dimensions and that 0–10V dimming is compatible with your control system. Set the desired wattage and CCT on the fixture during installation.

• Verify ceiling cutout or grid size matches the fixture housing
• Confirm 0–10V dimming compatibility if using a centralized control system
• Decide desired wattage (10/7.5/5W) and CCT (2700K–5000K) before final mounting
