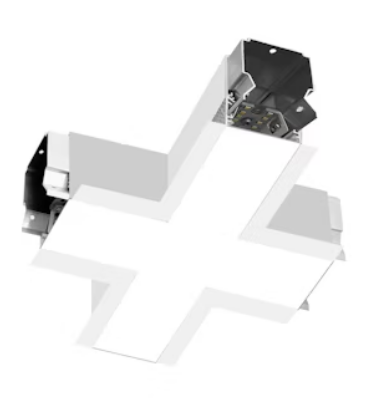

EnVision LED-ALIN2-X-D-5CCT-WH-RTK – X-Shape Connector Downlight

Product Overview

The EnVision LED-ALIN2-X-D-5CCT-WH-RTK is an X-shape connector downlight with field-selectable wattage and color temperature to reduce SKUs and simplify on-site selection.

It supports three wattage settings (10 / 7.5 / 5 W) with corresponding lumen outputs, five field-selectable CCT options (2700K–5000K), a 110° beam angle, 0–10V dimming capability, and is ETL listed for Dry Location use.

Key Features

• Selectable power: 10 / 7.5 / 5 W (set at install)
• Lumen outputs: 1,200 / 900 / 600 lm corresponding to wattage setting
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Beam angle: 110°
• Dimming: 0–10V
• Voltage: 120–277V
• Color rendering: CRI > 80
• Location rating: Dry Location
• Finish: White
• Certification: ETL listed; Warranty: 5 years
• Packaged quantity: 20 per box

What this downlight does

Provides general-area illumination with a wide 110° beam. The fixture combines selectable wattage and selectable CCT to allow on-site configuration from a single SKU.

• Typical interior uses listed by the source include retail and office fit-outs, hospitality and residential ceilings, and corridors and common areas
• White finish

Output and selectable power

Three wattage settings are selectable at install; each setting corresponds to a stated lumen output so you can choose the delivered light level on-site.

• Wattage: 10 W / 7.5 W / 5 W
• Lumen outputs: 1,200 lm / 900 lm / 600 lm (dependent on selected wattage)

Dimming and controls

The fixture is compatible with 0–10V dimming control as specified.

• Control interface: 0–10V

Color temperature options

Five field-selectable CCT options allow installers to select color temperature on-site without re-ordering.

• Selectable CCTs: 2700K, 3000K, 3500K, 4000K, 5000K

Installation and compatibility notes

Confirm ceiling cutout or grid size matches the housing and that the location is appropriate for a Dry Location rated fixture. Set the wattage and CCT switches during installation before final mounting.

• Verify supply voltage compatibility: 120–277V
• Set wattage and CCT switches prior to final mounting
• Rated for Dry Location

Technical specifications

Key electrical and optical specifications for selection and coordination.

• Beam angle: 110°
• CRI: >80
• Finish: White
• Certification: ETL listed
• Warranty: 5 years
• Packaged quantity: 20 per box
• SKU: LED-ALIN2-X-D-5CCT-WH-RTK

Before You Order

Verify ceiling cutout or grid/housing compatibility and that the installation location is appropriate for a Dry Location rated fixture. Confirm supply voltage is 120–277V and plan the desired wattage and CCT settings before final mounting.

• Confirm ceiling cutout or housing compatibility
• Confirm supply voltage: 120–277V
• Decide wattage (10/7.5/5 W) and CCT (2700K–5000K) before final mounting

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-X-D-5CCT-WH-RTK – X-Shape Connector Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
